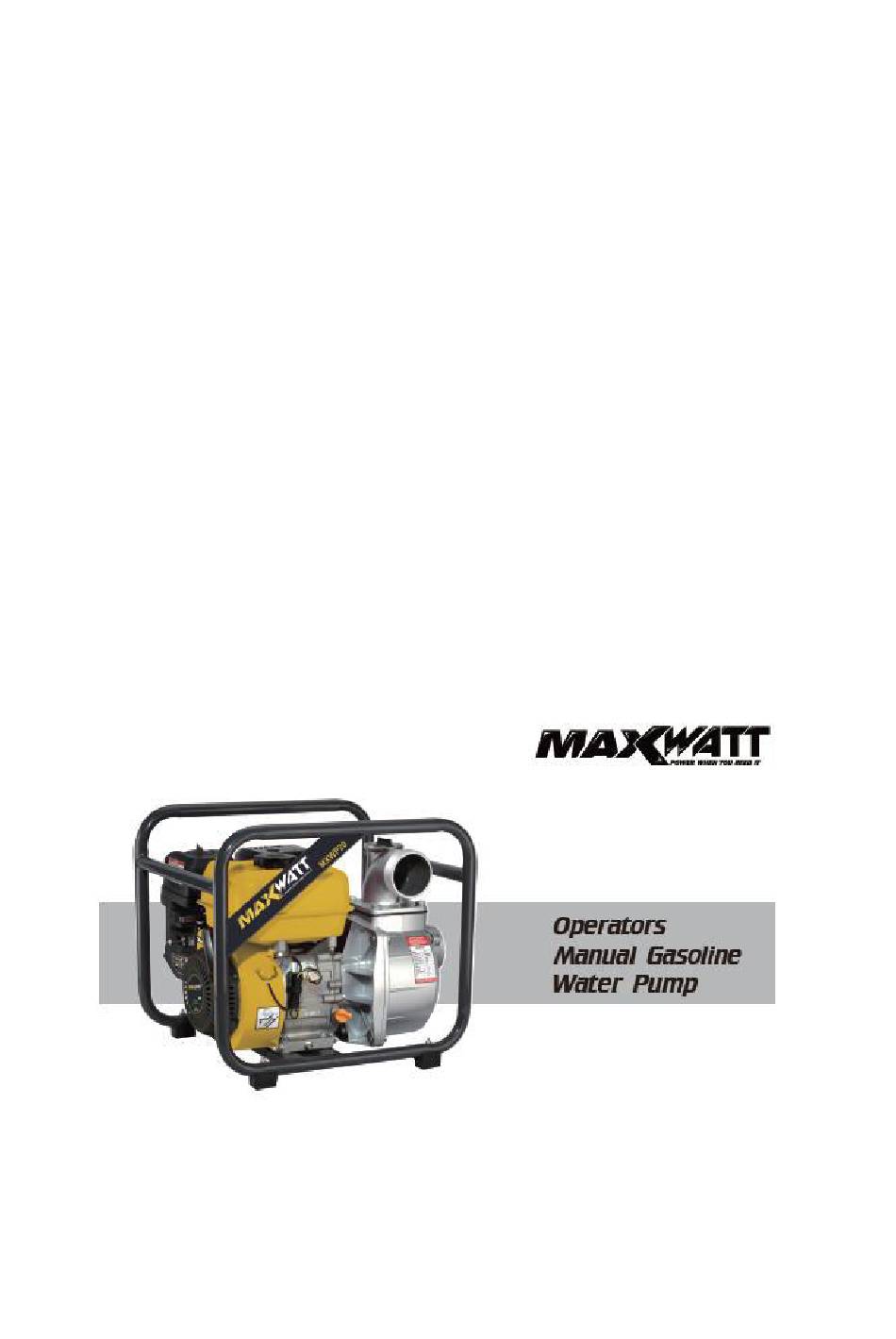

Summary of Contents for maxwatt MXWP20
-
Page 2: Table Of Contents
TABLE OF CONTENTS CHAPTER PAGE PORT ANT....................1 CHAPTER 1 – INSTRUCTIONS TO OPEN PACKAGE.......... 3 CHAPTER 2 – SAFETY RULES................4-5 CHAPTER 3 – PRODUCT STRUCTURE AND DESCRIPTION....... 6-7 CHAPTER 4 – MAIN PARAMETERS..............8 CHAPTER 5 – USE AND OPERATION.............. 9-12 CHAPTER 6 –... - Page 3 ABOUT YOUR WATER PUMP Thank you for purchasing a MAXWATT Water Pump, (hereinafter referred to as “the water pump”). This water pump is suitable for use on various trade worksites, whether residential or commercial. Please read and understand this manual for instructions on start-up, shut down, operations, adjustments, maintenance as well as safety guidelines before using this product.
- Page 4 For any queries on the above, please contact Gentech Industries, the official service agent for all MAXWATT water pumps and water pumps. The range of MAXWATT water pumps is safe and reliable, but incorrect usage of these products may cause personal injury and damage to the machine.
- Page 5 READ and UNDERSTAND this manual completely before using the engine. Failure to properly set up, operate and maintain this engine could result in serious injury or death from carbon monoxide poisoning, electric shock, fire/explosions and/or burns. In particular be aware of the following hazards: CD POISONING Engines give off carbon monoxide, an odourless, colourless poisonous gas that can kill you.
-
Page 6: Chapter 2 - Safety Rules
Exposure to rain, damp conditions or extreme temperatures can cause damage or serious injury. PERSONAL SAFETY Stay alert, watch what you are doing and use common sense when operating a water pump. DO NOT use a water pump while you are tired or under the influence of drugs, alcohol or medication. - Page 7 DO NOT modify the water pump in any way. Modifications can create hazards and will also void the warranty. NEVER attempt to modify the water pump speed setting. The water pump speed is present for safe and optimal performance of the water pump. If speed needs adjusting, it must be done by factory personnel.
- Page 8 SERVICE Have your water pump serviced by a qualified repair person using only factory approved replacement parts. This will ensure that the safety of the water pump is maintained. Incorrectly fitted parts will void your warranty. The equipment may only be used, maintained or repaired by those persons who understand and have been instructed about the potential dangers.
- Page 9 Any ungrounded fuel tank or container can accumulate a static electric charge as a result of contact with other objects or friction during transportation. This static electricity can discharge as a spark to the grounded petrol dispenser nozzle as the nozzle is first brought close to the tank/container at the beginning of the fuelling process.
- Page 10 The water pump needs adequate, unobstructed flow of air to allow for proper cooling of the engine and water pump head. Never place the water pump immediately adjacent to a building or other structure – allow at least 2 metres clearance. Do not run the water pump in close proximity to other heat-generating equipment, such as a water pump.
- Page 11 range before operation. In any event, the water pump must always be operated outdoors, in a well-ventilated area and away from doors, windows and other vents.
-
Page 12: Chapter 4 - Main Parameters
Operating environment and structure description The water pump is designed to convey/pump fresh water of normal temperature, OR water of which the quality conforms to GB5084 with a temperature of less than 40 degrees Celsius. This is an axial suction, horizontal, coaxial direct type centrifugal water pump. The impeller is semi-open or closed. -
Page 13: Chapter 5 - Use And Operation
USE AND OPERATION Prepara on and inspec on before use To ensure your safety as well as the maximum lifespan of your water pump, please read below. Please check that each bolt is ht before opera ng your water pump as some of them may become loose due to the vibra on of the water pump whilst in use. - Page 14 (3) Install the water suction (4) Connect the water discharge (5) Connect the water suction pipe (6) Connect the water discharge pipe (7) Prior to each use, please fill with water. (8) Place the filter into water and ensure that Unscrew the rubber plug and fill the the water level exceeds 20cm above the pump body with clean water.
-
Page 15: Chapter 6 - Repair And Maintenance
Select your water pipe in accordance to your conditions and model. To ensure your safety, the pressure bearing capacity of the water pipe should not lower than the requirements listed in Chapter 4. Do not operate beyond the lift of your water pump. If there is a decrease of water discharge flow cause by excessive lift, the liquid in the water pump may overheat and cause damage to the seals. -
Page 16: Chapter 7 - Trouble Shooting
TROUBLE SHOOTING Common water pump faults and trouble shooting... -
Page 17: Chapter 8 - Transportation And Storage
If the aforementioned advice does not resolve your problem, or if what you are faced with is not mentioned in the aforementioned table, please contact Gentech Industries for assistance. The limited warranty terms and conditions does not cover your water pump if it is disassembled and/or assembled by a non-approved service agent. - Page 18 TIPS TO FOLLOW WHEN STORING YOUR WATER PUMP FOR LONG PERIODS OF TIME: Clean your water pump thoroughly and properly. To avoid dampening the impeller of your water pump, flush the unit properly with clean water to remove any mud and other sediments. Before doing this, ensure that the drain plug has been removed.
- Page 19 “This is a “walk in” warranty policy and is limited to the range of water pumps specified herein”. We recommend that you take the water pump to the nearest service agent for assistance. Please visit www.maxwatt.com.au for more information. To qualify for this warranty: “The warranty applies to the first purchaser and each subsequent owner during the applicable...
- Page 20 STEP 8 •All warranty repairs are at the sole discre on of GENTECH INDUSTRIES. STEP 9 BELOW IS A LIST OF WATERPUMPS THAT ARE COVERED UNDER THIS WARRANTY: MODELS WARRANTY PERIOD WARRANTY PERIOD PRIVATE/RESIDENTIAL COMMERCIAL/RENTAL MAXWATT 24 months 24 months MODELS...
- Page 21 EXCLUSIONS TO THIS LIMITED WARRANTY INCLUDE: 1. Neglect in the periodic maintenance as specified in the owner’s manual. 2. Improper repairs or maintenance including any repairs and or maintenance carried out by a non-accredited service agent. 3. Operating methods other than those indicated in the owner’s manual. 4.
- Page 22 NOT AS ADVERTSIED /INCORRECT ITEM If your order arrives and it’s not what you ordered, please contact either the store the order came from or on the online support team at customercare@maxwatt.com.au. FAULTY PRODUCT Please contact the store that fulfilled your order. Store contact details can be found on your order confirmation email.
- Page 23 DISCLAIMER OF CONSEQUENTIAL DAMAGE AND LIMITATION OF IMPLIED WARRANTIES: Gentech Industries and all distributors and retailers of the Maxwatt brand disclaim any responsibility for the loss of time or use of the product, transportation, commercial loss or any other incidental or consequential loss or damage. Any implied warranties are limited to the...
