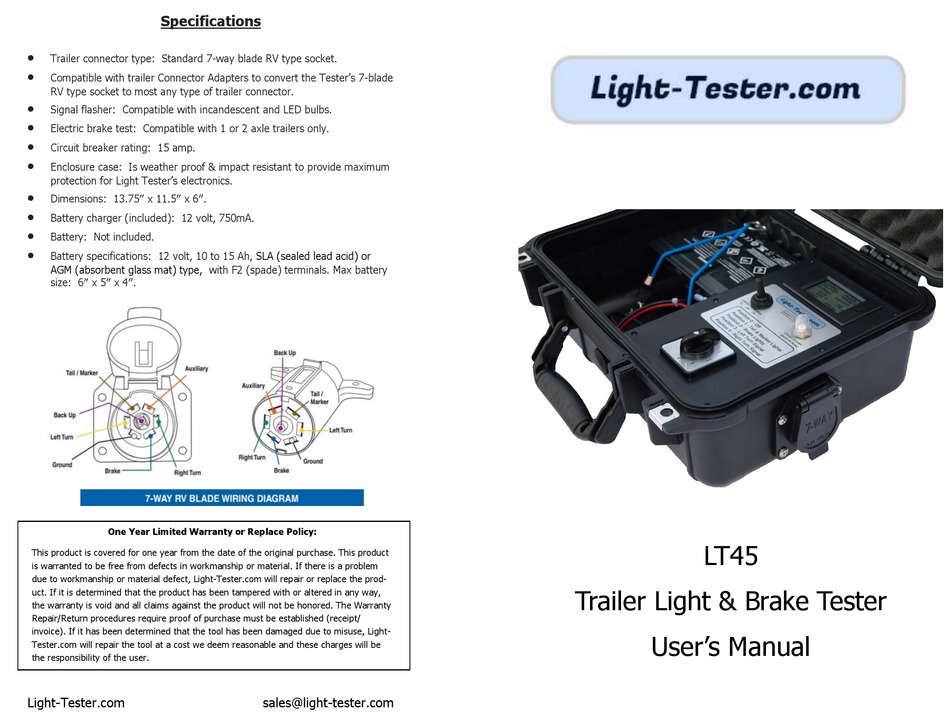

LIGHT-TESTER.COM LT45 User Manual

Specifications


Trailer connector type: Standard 7-way blade RV type socket.

Compatible with trailer Connector Adapters to convert the Tester's 7-blade
RV type socket to most any type of trailer connector.

Signal flasher: Compatible with incandescent and LED bulbs.

Electric brake test: Compatible with 1 or 2 axle trailers only.

Circuit breaker rating: 15 amp.

Enclosure case: Is weather proof & impact resistant to provide maximum
protection for Light Tester's electronics.

Dimensions: 13.75" x 11.5" x 6".

Battery charger (included): 12 volt, 750mA.

Battery: Not included.

Battery specifications: 12 volt, 10 to 15 Ah,
AGM (absorbent glass mat) type,
size: 6" x 5" x 4".
One Year Limited Warranty or Replace Policy:
This product is covered for one year from the date of the original purchase. This product
is warranted to be free from defects in workmanship or material. If there is a problem
due to workmanship or material defect, Light-Tester.com will repair or replace the prod-
uct. If it is determined that the product has been tampered with or altered in any way,
the warranty is void and all claims against the product will not be honored. The Warranty
Repair/Return procedures require proof of purchase must be established (receipt/
invoice). If it has been determined that the tool has been damaged due to misuse, Light-
Tester.com will repair the tool at a cost we deem reasonable and these charges will be
the responsibility of the user.
Light-Tester.com
SLA (sealed lead acid) or
with F2 (spade) terminals. Max battery
sales@light-tester.com
LT45
Trailer Light & Brake Tester
User's Manual
