EIGER EG-UV03 Instruction Manual

ULTRAVIOL ET DI S I NF ECTION S E RI ES

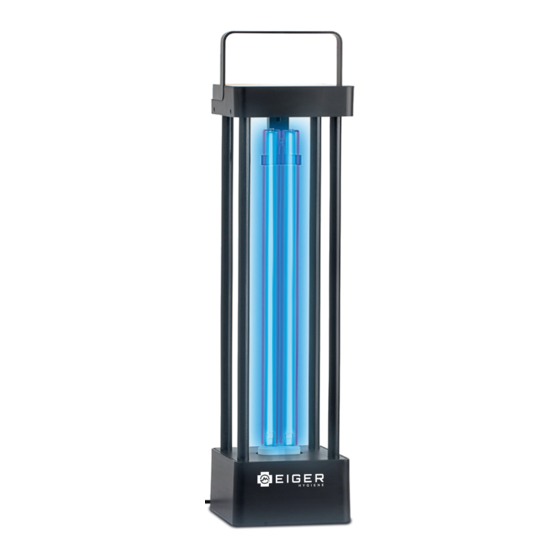

ULTRAVIOLET DISINFECTION LAMP
INSTRUCTION MANUAL
Please read these instructions carefully and retain for future reference.
1 x 36 W Ultraviolet Sterilization Lamp
1 x Remote Control
1 x Instruction Manual
• 36 W High Quality Quartz Lamp
• 8000 Hour Lamp Life Span
• 15 / 30 / 60 Minute Timer Function
• Remote Control
• Material: ABS & Metal
• Remote Distance: 15 M (Wireless)
• Base Type: 2G11
• Lamp Life: > 8000 Hours
• Peak Ultraviolet Wavelength of Ultraviolet Radiation: 253.7 nm
• Radiation Intensity: 36 W ≥ 118 μw / cm²
• Product Dimensions: 120 x 120 x 475 mm
• Product Weight: 625 g
• Packaging Dimensions: 160 x 150 x 490 mm
• Tube Material: Quartz Glass
• Voltage: 220 V
• Power: 36 W
• Sterilization Rate: 99.9%*
• Colour of the Shell Casing: Black
*Refer to Table 1 for guidelines on use.
EG-UV03
The principle of UVC sterilization and disinfection is that ultraviolet light with a wavelength
of 200 ~ 280 nm can destroy the molecular structure of DNA (deoxyribonucleic acid) or
RNA (ribonucleic acid) of microbial cells, thereby changing the biological activity of DNA,
resulting in DNA inactivation, resulting in death of growing cells and (or) regenerative cell
death, to achieve the effect of sterilization and disinfection.
2
TABLE 1. GUIDELINES FOR STERILIZATION TIMES
Sterilization Time
Room Size (m )
2
(Min.)
10 15
15 30
20 30
25 60
30 60
35 60
40 60
PRINCIPLE OF ULTRAVIOLET C (UV-C) STERILIZATION
INSTALLING AND REMOVING THE LAMP TUBE
1. Ensure that the power is switched off. Place the
lamp tube in the pre-installation position, pull
the clip towards the lamp tube and clip into place.
2. Then insert the lamp tube by pressing it down
into the lamp base until it is secure.
3. To remove the lamp tube, reverse this process.
3
