Page 1

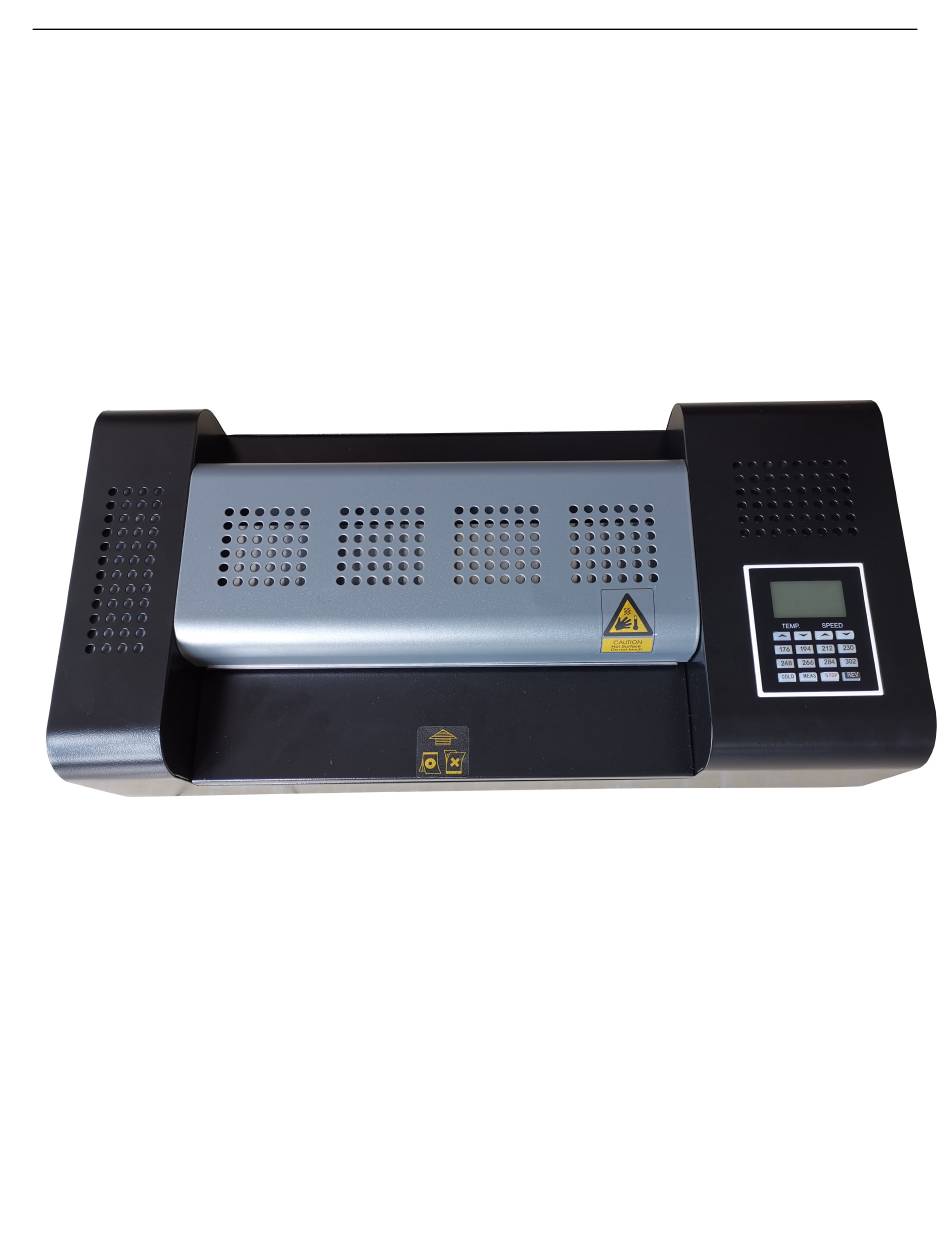

TL-600 6 Roller Heavy Duty Pouch Laminator Operation Manual Make sure to read this manual before using the machine. Store this manual safely for future reference.
1. Specifications Model TL-600 Max. Laminating Width 13" (330mm) Max. Laminating Thickness 1.5mm Max. Pouch Thickness 14mil (350mic) Laminating Speed 19"-78"/min Operating Temp 176°F -302°F Heating System 4 Heated Rollers Qty of Roller Roller Diameter 30mm Preheating Time 4mins Auto Sleep Mode...
Page 3
items. 2) Do not allow neckties, scarves, or other objects near the machine, as they could get caught by the rollers and be pulled inside, causing serious personal injury. 3) Ensure your electrical source is properly grounded for safety. 4) Do not open the cover (or back) without an authorized technician. 5) Use a soft cloth with alcohol to clean rollers.
*If using a carrier, increased temperature will be required. *All settings are suggested. Temperature & speed adjustments may be required for different paper thicknesses, pouches, or carriers. 7.Description of Control Panel 1. speed adjustment 6. cold lamination/sleep mode function 2. pre-set temperature selection 7.
a. Turn on the Power Switch located on the rear of the machine b. Use the temperature guide on the front of the machine to select the recommended temperature & speed based on the thickness of your pouch. The display screen will read 'Ready' when the temperature is reached.
Page 6
To process your warranty claim, the machine must be returned in its complete original packaging to avoid incidental damages in transit by the carrier of your choice. Lamination Depot does not cover shipping costs for claims nor is responsible for any damages caused by the...
Page 7
• Damage to the equipment due to improper operation, abuse, mishandling or failure to follow the operating instructions. • Removal or alteration of the serial number. • Service or modification done by anyone other than a certified technician authorized by Lamination Depot. This warranty is valid only within the United States or its provinces/territories and Canada.
