Summary of Contents for Aisee V3TSM20MA

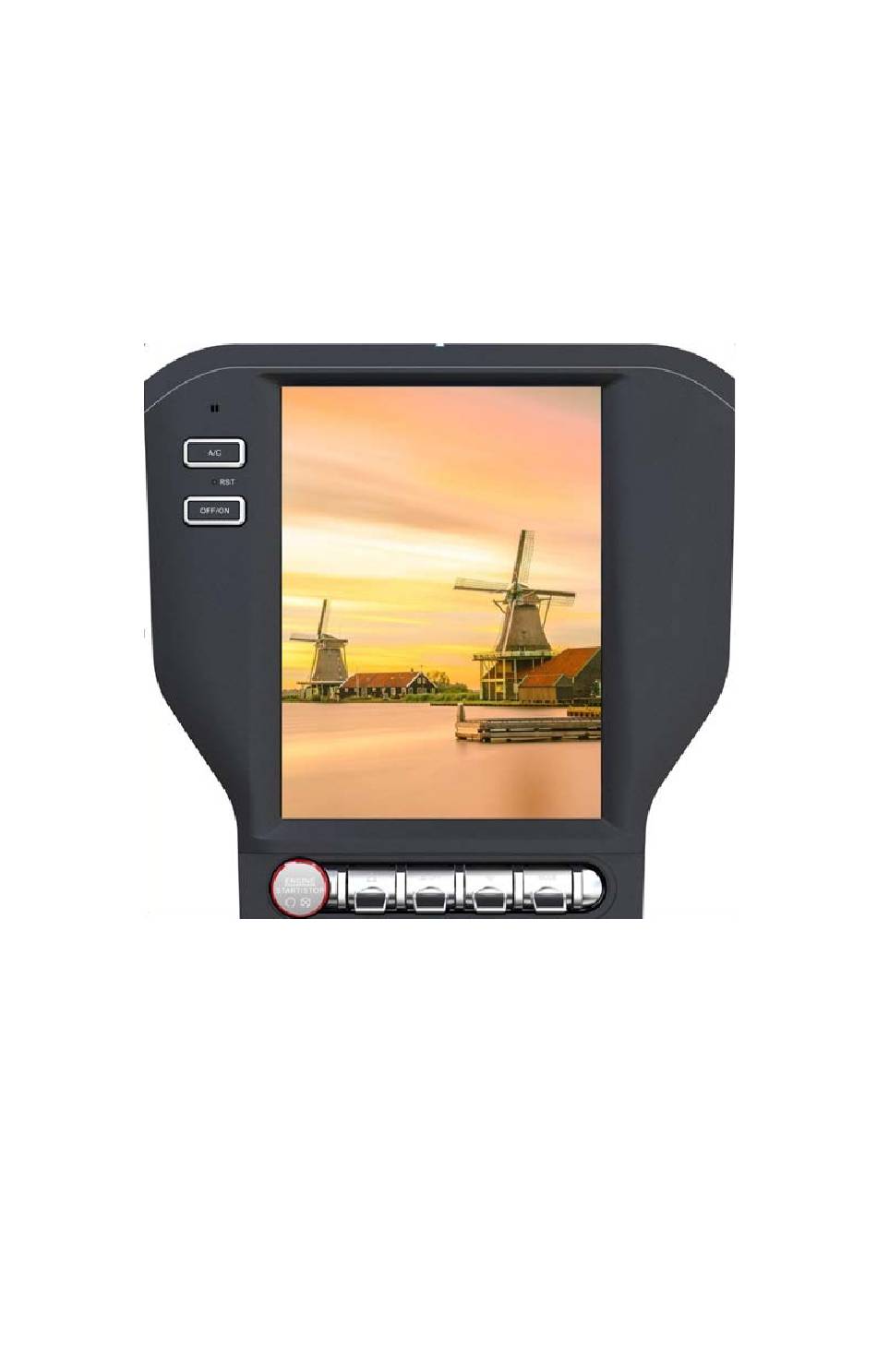

- Page 1 V3TSM20MA Operating Instructions...
-
Page 2: Safety Precautions
Safety Precautions Thank you for purchasing this product. Please don't change the fuse on the Please read through these operating power cord without professional guidance, instructions so you will know how to using improper fuse may cause damage operate your model properly. After to this unit or even cause fire. - Page 3 Safety Precautions 1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot.
-
Page 4: Table Of Contents
Contents Safety Precautions ........1 Other Modes ..........14 Listen to Other Devices ......14 Contents ............3 Reset ............14 Replace a Fuse........14 Basic Operations ........4 Status bar ..........4 Specifications .........15 Playing Source Selection ......4 Equalizer ..........4 Volume distribution (fader/balance) ..4 Radio Mode ..........5 Radio Display..........5 Select One Radio Band ......5 Tune............5... -
Page 5: Basic Operations
Basic Operations Status bar Equalizer 1. Touch the [ EQ ] icon in the source menu and the Sound setup interface will display on the screen. 1. [ ]: Tap to show main menu 2. Hold the highlight spot and drag left/right to 2. -
Page 6: Radio Mode
Radio Mode Radio Display Manual Tuning Method 1: During manual tuning, the frequency will be changed in steps. Touch the [ ] / [ ] icon on the user interface to tune in a higher / lower station. Method 2: 1. -
Page 7: Favorite Station
Radio Mode Favorite station Up to 30 FM and 20 AM stations can be stored in favorite station list. Store a favorite station 1. Tune to a station. 2. Touch [ ] to store current station. Recall a favorite station 1. -
Page 8: Playback Mode
Playback Mode Connect a USB Device Insert a USB device into the USB slot. When connecting a USB device, the unit will read the files automatically. Remove a USB Device 1. Select other source on the main menu. 2. Remove the USB device. Music Playback Select [ ](USB Music) of the screen, the... -
Page 9: Video Playback
Playback Mode Video Playback Gallery Operations Select [ ](Video) on the screen, the unit 1. Select [ ](Photo) on the screen. 2. Select one gallery to show the picture list. will playback all the video files on the storages. During playback, touch the screen to show control buttons. -
Page 10: Bluetooth Mode
Bluetooth Mode The Bluetooth allows you to utilize your car’s If there are devices connected before, touch built-in audio system for handsfree wireless the chain icon under the phone name to mobile phone or music communication. Some establish a connection. Bluetooth mobile phones have the audio features, and some portable audio players Touch the dustbin icon... -
Page 11: Call From Phonebook
Bluetooth Mode Call History Access Call History by touching [ ] button. • Answering a call You can answer an incoming call by pressing Then select a number from Dialled/Missed/ the [ ] button. Received calls. Touch [ ] button to reject an incoming call. Audio playback via Bluetooth streaming If an audio streaming device is connected with... -
Page 12: Adjust Bluetooth Settings
Bluetooth Mode Adjust Bluetooth Settings 1. In Bluetooth menu, touch [ The option menu is displayed. 2. Touch on the selected option to change the setting. ∙ [Auto Connect]: To turn on or off “Auto connect” function. ∙ [Auto Answer]: To turn on or off “Auto answer”... -
Page 13: Apple Carplay
Apple CarPlay Around View Monitor Available on select cars, CarPlay is a smarter, safer way to use your iPhone in the car. If you have installed 4 vehicle-mounted CarPlay takes the things you want to do with cameras, select [AVM] in the source menu, the your iPhone while driving and puts them system will create a virtual 360°... -
Page 14: Settings
Settings Basic settings Device settings Brightness - Swipe left/right to adjust the In the settings menu, you can adjust the basic settings for the different functions of the device brightness of the screen. Tap [OK] to confirm. Day/Night - Select a backlight mode from the to your requirements. -
Page 15: Other Modes
Other Modes Listen to Other Devices You can connect an external audio/video device to the unit. 1. Connect the external device with the supplied AV cable. 2. Touch the upper left corner to display the main menu. 3. Touch [ Aux in ] to access external device. Reset When the unit hangs up, you can reset it. -
Page 16: Specifications
Specifications General Reference Supply Voltage ..............12V(DC) Operating Voltage Range ..............9 - 16V(DC) Max Operating Current ................15A Maximum Output Power ..............4 X 20W Grounding System ..........Car Battery Negative Pole Dimensions(WXHXD) ............. 250*380*97 mm Weight(main unit) ..................2.4kg Signal Noise Ratio ................≥50dB Residual Noise Sensitivity (S/N=30dB) ..........≤9dBμV Frequency Response (±3dB) ............20Hz~12.5KHz Station Seeking Level .............. - Page 17 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
