OptoLink Handling Instructions

Follow these instructions carefully to ensure you get the best out of

your OptoLink connector.

Assembly

OptoLink A-CCP to OptoLink A-FCR, BCR or CCR receptacle

Step 1:

Inspect the connector face and O-rings

Grease the O-rings with Molykote 111 if necessary

Step 2:

Inspect the connector surface. If the connector surface is

dirty, follow the OptoLink maintenance instructions overleaf

Step 3:

Visually align the key way on the CCP connector with the

key pin tip on the receptacle before mating (see picture)

Do not twist the connector to align it during mating

Step 4:

Push to mate the connector (see picture)

Step 5:

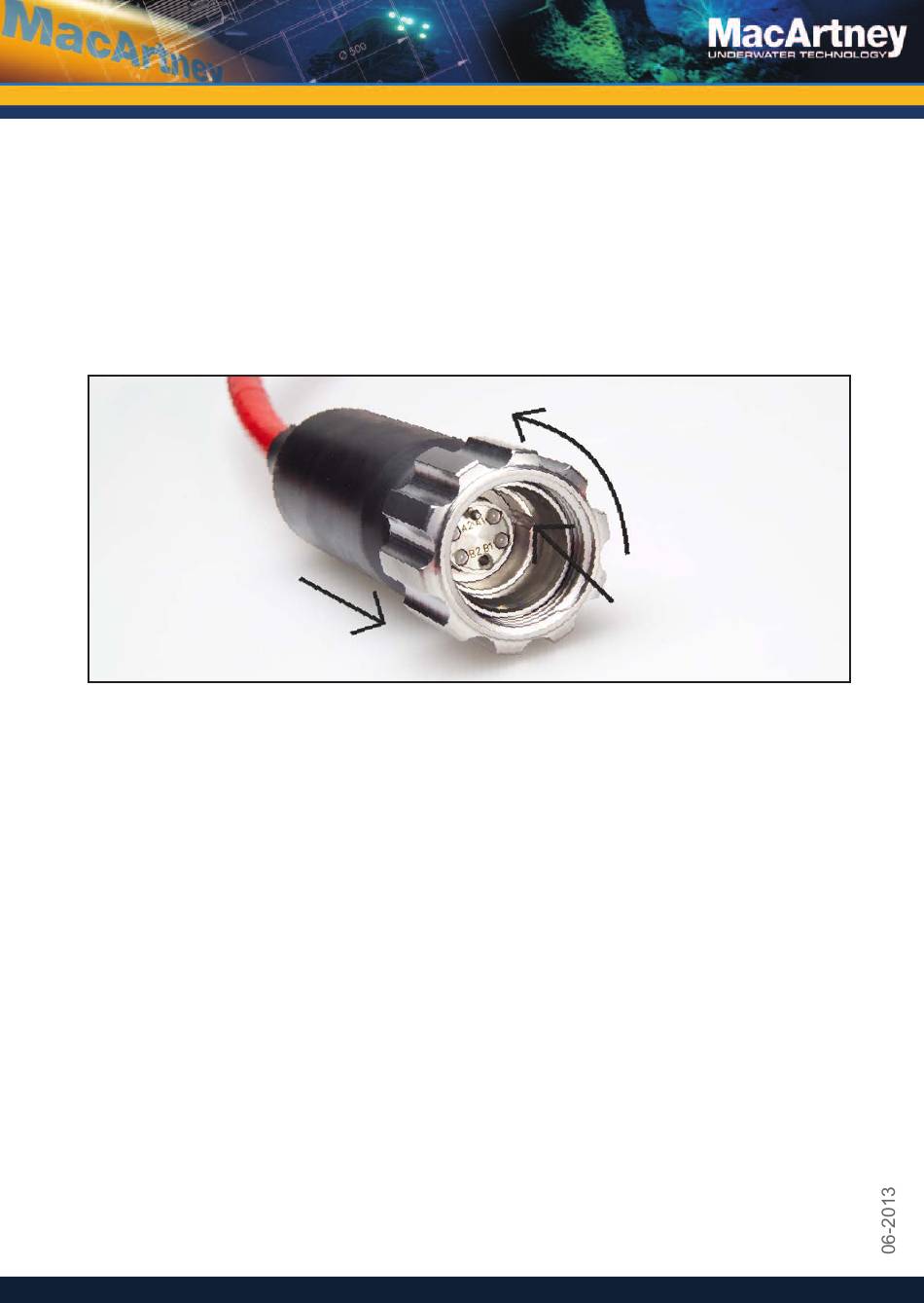

Whilst turning the locking sleeve (see picture)

Note: The connector is only hand tightened

Step 4

Step 5

Step 3

Page 1 OptoLink connector. Assembly Step 5 Step 4 Step 3 OptoLink A-CCP to OptoLink A-FCR, BCR or CCR receptacle Step 1: Inspect the connector face and O-rings Grease the O-rings with Molykote 111 if necessary Step 2: Inspect the connector surface. If the connector surface is...
Page 2 O-rings must be checked before mating and will require replacing if they show signs of damage ■ Always grease O-rings with Molykote 111 Note: Always install dust caps when connectors are unmated For further support and advice, please contact MacArtney or your local OptoLink distributor. www.macartney.com...
