Freutek BEC-C20 Operating Manual

Laser marking machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Web: www.freutek.com

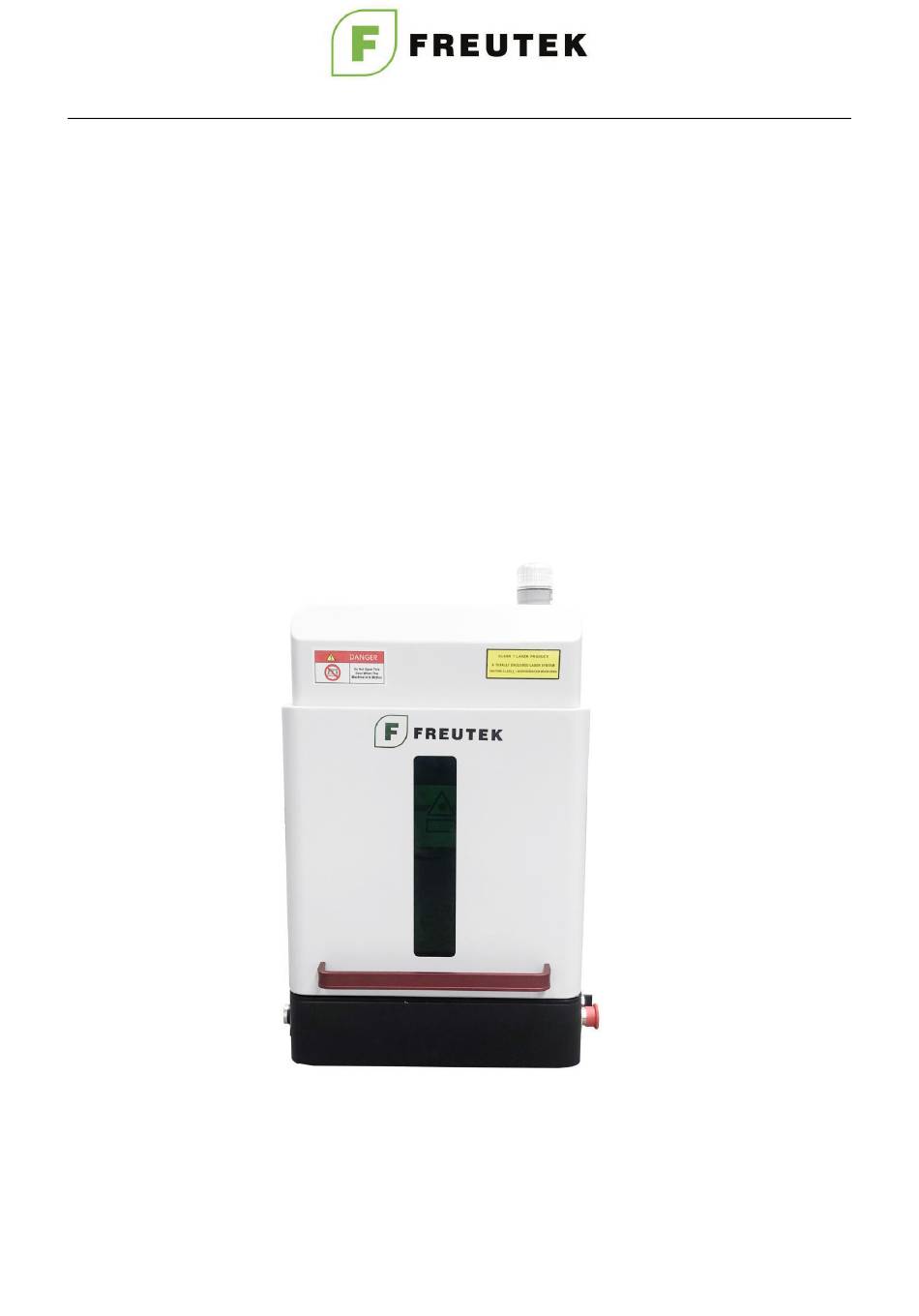

Laser Marking Machine
Operating Manual
(There are many types of fiber laser marking machine designs, so take BEC-C20 as an example)
Please read this manual carefully before using the fiber laser marking machine!
Thank you for using the laser marking machine produced by Freutek Srl.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEC-C20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Freutek BEC-C20

  • Page 1 Laser Marking Machine Operating Manual (There are many types of fiber laser marking machine designs, so take BEC-C20 as an example) Please read this manual carefully before using the fiber laser marking machine! Thank you for using the laser marking machine produced by Freutek Srl.
  • Page 2 Web: www.freutek.com To the user This equipment is a high-performance laser marking system developed and produced by our company after years of experience in laser development, production and service. It has the advantages of beautiful appearance, complete functions, reliable quality, stable performance and convenient use.

  • Page 3: Chapter 1: Overview

    (its wavelength can be adjusted within a certain scope), and mark several colors when marking (corresponding material). 1.3 The characteristics for fiber laser are as follows: * BEC-C20 laser marking machine adopts the fiber laser with the service life of 100000h, and the...
  • Page 4 Web: www.freutek.com performance is superior in the world. The beam is high-quality with basic mode output (TEM00), and the focusing spot diameter is less than 20um. The divergence angle is about 1/4 of the semiconductor pump. The single line is thinner, so it is more suitable for the fine and precision marking.

  • Page 5: Chapter 2: Equipment Operation Safety And Protection

    Warning: when using the laser equipment, please ensure the safe ground connection. 2.2 Laser type BEC-C20 laser marking machine adopts the Class 4 laser, the improper use may cause harm to human body, so the user should take the protection measures according to this manual.
  • Page 6 Do not use it in the environment with volatile solvent, such as alcohol, gasoline, etc. 2.5 Electrical equipment safety Do not open BEC-C20 laser marking machine personally, or it will do harm to human body due to the high pressure inside; in case of the failure, only professional technical personnel can open the machine.

  • Page 7: Chapter 3: Technical Parameters And Applicable Environment

    Web: www.freutek.com Chapter 3: Technical Parameters and Applicable Environment 3. Technical parameters and applicable environment Beam quality M2:1.5 (TEM00 mode) Average output power Max. marking line speed ≤7000mm/s Laser wavelength 1064nm Marking scope 110 mm*110mm (optional) Power adjusting range 5%-100% Min.

  • Page 8: Chapter 4 Machine Structure

    7) Laser Source: A device that emits laser light. It is the core of laser machine. Raycus, JPT, IPG are all good options laser source brand provided by Freutek Srl; 8) Rotary fixture ( Optional parts ): It is an optional parts, suitable for ring, bracelet cylindrical...

  • Page 9: Chapter 5 Machine Installation & Operation

    Web: www.freutek.com objects marking. Chapter 5 Machine Installation & Operation 5.1 Packaging removal * Protective film packaging * Wood packaging Please use the appropriate tool to open the wooden box packaging, please be careful not to damage the machine when removing the wooden box.
  • Page 10 Web: www.freutek.com * Environment with drastic changes in temperature. * An environment that will freeze and dew. * An environment with vibration and strong impact. * Environment with strong electronic electromagnetic interference. * Use and store the device within the rated temperature and humidity range. Humidity ≤ 80%, temperature 5℃~ 30℃...
  • Page 11 Web: www.freutek.com 5.3 About door sensor marking When the Door IO is HIGH, the machine can work when the door is opening. When the Door IO is LOW, the machine only work when the door is closed.
  • Page 12 Web: www.freutek.com The enclosure can give you a safety working environment and protect your eyes.

  • Page 13: Chapter 6 Software And Its Settings

    Web: www.freutek.com Chapter 6 Software and Its Settings 6.1 This software mainly has following functions:  Freely design the graphs and patterns to be processed.  Support TrueType, JSF, SHX, DMF, one-dimensional bar code and 2D bar code.  Have flexible variable text processing, change the text in real time during the processing, and read and write the Word and Excel files directly and dynamically.
  • Page 14 Web: www.freutek.com Step 2 Open the Hardware Manager of your computer, and right click the hardware, choose Update Driver Software Step 3 Browse computer for driver software, and find the driver folder which in the Ezcad folder usually.
  • Page 15 Web: www.freutek.com Step 4 Install the driver software The following window will popup once the diver is installed successfully.
  • Page 16 Web: www.freutek.com Step 5 Find the Ezcad software and open it, you can add a shortcut to the desktop to facilitate you use it next time.
  • Page 17 Web: www.freutek.com Once pop-upthis license window, please click I agree, then the software would be opened. Interface Description Display the startup interface when the programs run, and the programs conduct the initialization at the backstage. Ezcad main interface...
  • Page 18 Web: www.freutek.com 6.4 Parameter adjustment Parameters that need to be adjusted: speed, power, frequency Speed: 1——2000mm/s (Slow the marking depth and speed according to the marking effect) Power: 1%——100% (The greater the percentage of power, the deeper the marking will be ) Frequency: 1——80KHz ( low-frequency marking depth)

  • Page 19: Chapter 7 Maintenance And Preservation

    * Do not move the marking machine when it works, so as not to cause any damage to it. 7.2 Common failures and solutions BEC-C20 laser marking machine may break down as a result of the use or other reasons. For you to judge and rule out some simple faults in time...
  • Page 20 - adjust the marking surface of the work piece BEC-C20 laser marking machine is assembled by unit module parts, and these module parts have a stable performance. If there is any failure and you cannot judge the cause according to the symptom,...
  • Page 21 Made in PRC MANUFACTURER: SHENZHEN BEC LASER TECH CO., LTD ADD: 4th F, Building 4, Yijiayang Industrial Park, Huaming Rd., Dalang St., Longhua District, Shenzhen, Guangdong, China This machine is manufactured under request of Freutek Srl, C.so Tassoni 21 (To) Italy...
