SURIA GRANDE Series Operation Manual Book

Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Operation
Manual Book
GRANDE SERIES
In order to use the product safely, please read the instruction manual. In addition, please keep the
instruction manual properly.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GRANDE Series and is the answer not in the manual?

Questions and answers

Related Manuals for SURIA GRANDE Series

Summary of Contents for SURIA GRANDE Series

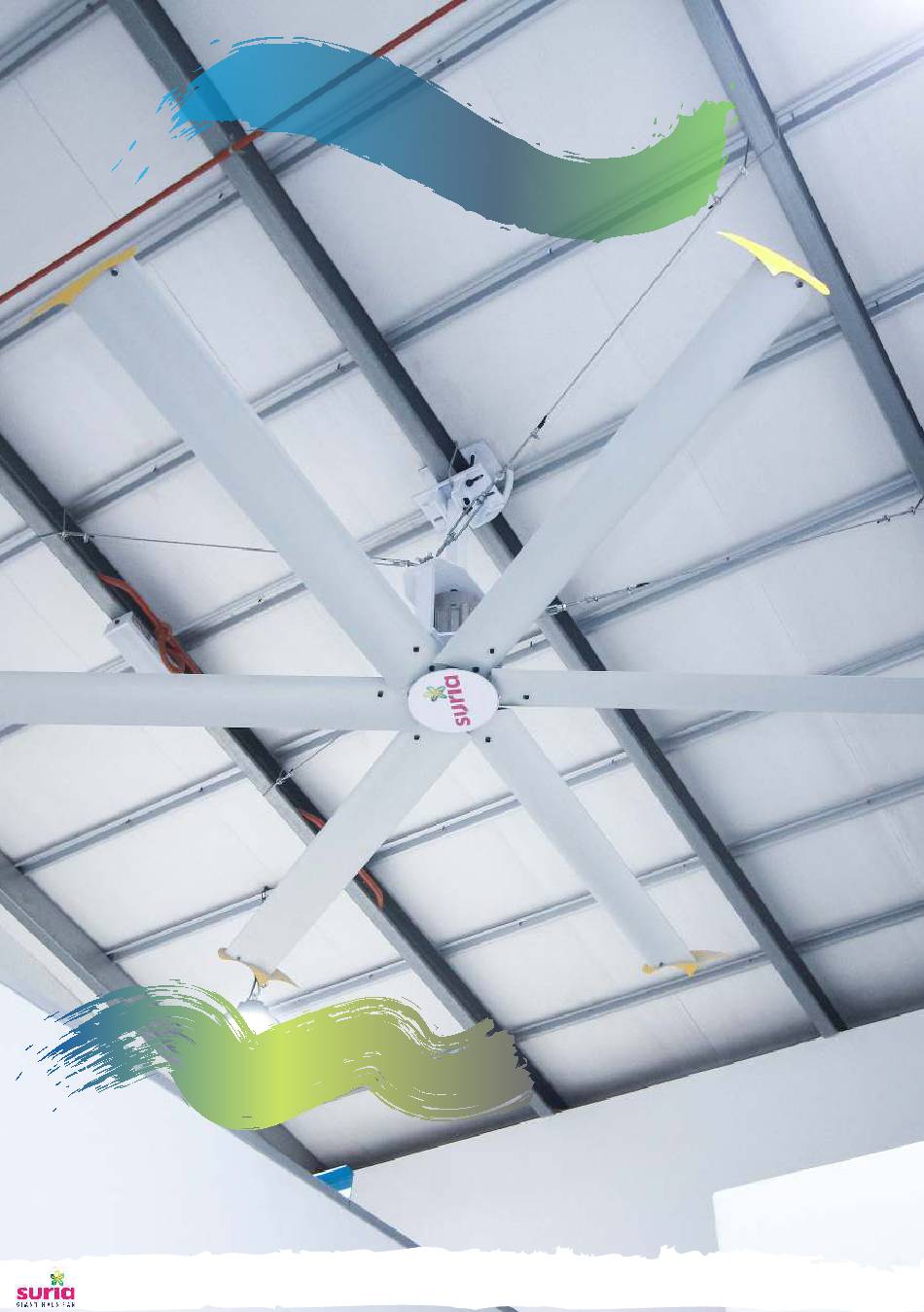

  • Page 1 Operation Manual Book GRANDE SERIES In order to use the product safely, please read the instruction manual. In addition, please keep the instruction manual properly.
  • Page 3 ENGLISH SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN. NO OFFICE: 03-6127 0974...
  • Page 4 Summary Thank you for purchasing a permanent magnet synchronous motor (PMSM) industrial HVLS giant fan (Grande Series). This operation manual explains how to use the product correctly. Please read this instruction carefully before use (installation, wiring, operation, maintenance, inspection, etc). In addition, please use the product after understanding the safety precautions of the product.
  • Page 5  The installation, operation and maintenance of this machine are limited to the following persons: SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN.
  • Page 6 355,000 320,000- 16’-14’ ≤40 1000 80-70 111-109 285,000 250,000- 12’-8’ ≤40 95-85 73-70 180,000 SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN. NO OFFICE: 03-6127 0974...
  • Page 7 Parts & Installation Figure 1: Permanent Magnet Synchronous Motor (Grande Series) →14ft-24ft Figure 2: Exploded View of Grande Series→14ft-24ft SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN.
  • Page 8 Figure 3: Parts of Grande Series (H60X, H60, H40) Table 2: Name of components PMSM industrial HVLS giant fan (Grande Series (H60X, H60, H40)) No item Name of part I Beam bracket Fasterner Hollow 3”x3” Lower bracket Frame motor Gearless motor (IME- H40, H60, H60X)
  • Page 9 Parts & Installation Figure 4: Permanent Magnet Synchronous Motor (Grande Series) – H50 Figure 5: Exploded View of Grande Series→8ft-12ft SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN.
  • Page 10 Figure 6: Parts of Grande Series (H50) Table 3: Name of components PMSM industrial HVLS giant fan (Grande Series (H50)) No item Name of part I Beam bracket Fasterner Hollow 2”x2” Lower bracket Gearless motor (IME- H50) Frame motor Shaft lock...
  • Page 11 Wiring Connection of wire motor: Wiring system: Figure 7: Single Phase Single Line Diagram (Grande Series) Figure 8: Three Phase Single Line Diagram (Grande Series) SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN.
  • Page 12 To stop fan. Up: Increase speed of fan. Speed button Down: Reduce speed of fan. SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN. NO OFFICE: 03-6127 0974...
  • Page 13 To prevent this type of failure, periodic inspections are required. It is recommended to check the machine every 6-12 month after installation SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN.
  • Page 14 Check the operating part Remove dust/dirt with dirty dry towel. Do no wipe with water. SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN. NO OFFICE: 03-6127 0974...

  • Page 15: Bahasa Melayu

    BAHASA MELAYU SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN. NO OFFICE: 03-6127 0974...
  • Page 16 Sila tunggu lebih dari satu minit setelah mengesahkan bahawa semua kuasa peralatan mati dan voltan AC utama telah capai ke tahap yang selamat. SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN.
  • Page 17  Pemasangan, operasi dan penyelenggaraan mesin ini terhad kepada orang- orang berikut: SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN. NO OFFICE: 03-6127 0974...
  • Page 18 355,000 320,000- 16’-14’ ≤40 1000 80-70 111-109 285,000 250,000- 12’-8’ ≤40 95-85 73-70 180,000 SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN. NO OFFICE: 03-6127 0974...
  • Page 19 Bahagian & Pemasangan Rajah 1: Kipas Gergasi PMSM (Grande Series) →14ft-24ft Rajah 2: Pecahan Bahagian Grande Series→14ft-24ft SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN. NO OFFICE: 03-6127 0974...
  • Page 20 Rajah 3: Bahagian komponen Grande Series (H60X, H60, H40) Jadual 2: Nama komponen Kipas Gergasi PMSM (Grande Series (H60X, H60, H40)) No item Name Komponen I Beam bracket Fasterner Hollow 3”x3” Lower bracket Frame motor Gearless motor (IME- H40, H60, H60X)
  • Page 21 Bahagian & Pemasangan Rajah 4: Kipas Gergasi PMSM (Grande Series) – H50 Rajah 5: Pecahan Bahagian Grande Series→8ft-12f SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN.
  • Page 22 Rajah 6: Bahagian komponen Grande Series (H50) Jadual 3: Nama Komponen Kipas Gergasi PMSM (Grande Series (H50)) No item Nama Komponen I Beam bracket Fasterner Hollow 2”x2” Lower bracket Gearless motor (IME- H50) Frame motor Shaft lock Safety plate Star plate...
  • Page 23 Pendawaian Sambungan motor wayar Sistem Pendawaian: Rajah 7: Garis Tunggal Satu Fasa (Grande Series) Rajah 8: Garis Tunggal Tiga Fasa (Grande Series) SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN.
  • Page 24 : meningkatkan kelajuan kipas. Butang Kelajuan bawah : mengurangkan kelajuan kipas. SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN. NO OFFICE: 03-6127 0974...
  • Page 25 Untuk mengelakkan kegagalan seperti ini, pemeriksaan berkala diperlukan. Sebaiknya periksa produk setiap 6-12 bulan selepas pemasangan. SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN.
  • Page 26  Buang habuk / kotoran yang kotor. dengan tuala kering. Jangan lap dengan air. SURIA GIANT FAN SERVICES SDN BHD (1122001-T) NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG, 68100 BATU CAVES, SELANGOR DARUL EHSAN. NO OFFICE: 03-6127 0974...
  • Page 28 www.suriagiantfan.com...

This manual is also suitable for:

H60xH60H40H50
