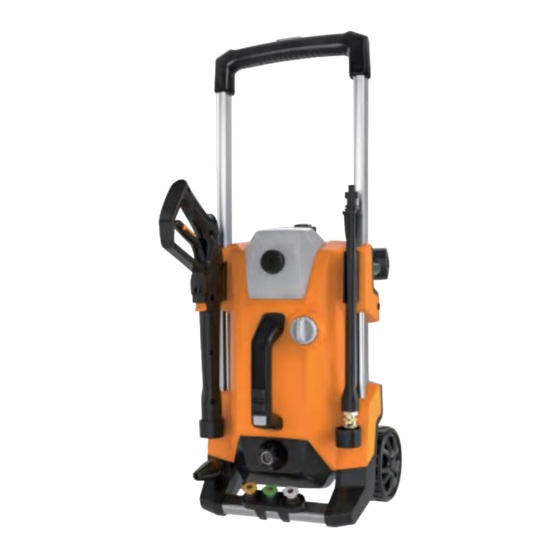

SUNPOW HP1172 2300 MAX PSI User Manual

Electric pressure washer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

User Manual

SUNPOW 2300 MAX PSI

Electric Pressure Washer

HP1172

Table of Contents

Need help?

Do you have a question about the HP1172 2300 MAX PSI and is the answer not in the manual?

Questions and answers

Summary of Contents for SUNPOW HP1172 2300 MAX PSI

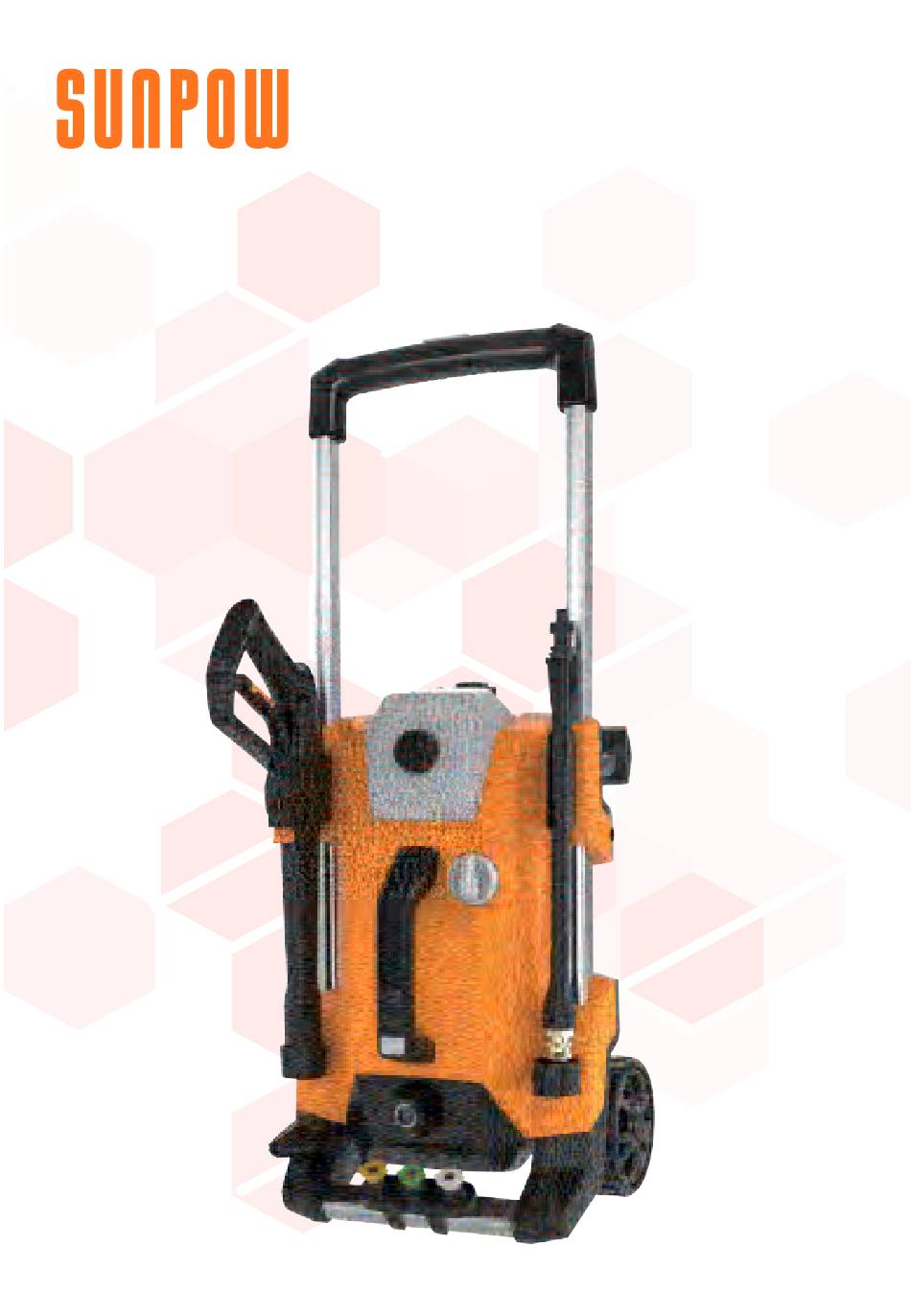

Page 1 User Manual SUNPOW 2300 MAX PSI Electric Pressure Washer HP1172...
Page 2 C O N T E N T S English(US) 01-24 Deutsch 25-50 Français 51-75 Italiano 76-100 Español 101-125 English(UK) 126-149...
Page 3 Thank you for choosing SUNPOW HP1172 2300 MAX PSI Electric Pressure Washer. Please read the owner’s manual and safety instructions carefully before operating the electric pressure washer. Save this manual for future reference. If you have any problems and questions , please contact us.
Page 4: Table Of Contents
TABLE OF CONTENTS --------------- Safety Introductions 03-06 -------------------- Safety Devices 06-07 ------------------ Product Description ----------------------- Technical Data Know Your Electric Pressure Washer ------------------------ -------------------- What is in the Box ------------- Assembly instructions 09-14 ------------------------ Operation 14-15 ----------------- Using the nozzles 15-16 -------------- Working with detergents...
Page 5: Safety Introductions
Safety Introductions Please read these instructions carefully before installing and operating the equipment! WARNING! Th i s a p p l i a n c e i s n o t i n t e n d e d f o r use by children or by unassisted, unsupervised p e r s o n s w h o s e p h y s i c a l , s e n s o r y o r m e n t a l capabilities prevent them from using it safely.
Page 6 C o n t a c t S U N P O W c u s t o m e r s e r v i c e c e n t e r v i a Email: SUNPOW.SERVICE2019@OUTLOOK.COM WARNING! This washer has been designed for using special detergent.
Page 7 WARNING! High-pressure jets can be dangerous if misused. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself. •Do not direct the jet at yourself or others in order to clean clothes or footwear. •Risk of explosion Do not spray flammable liquids.
Page 8: Safety Devices
WARNING! This high-pressure electric power washer must not be used at temperatures below 32ºF (0°C). WARNING! Power cords on drums should always be completely unwound to prevent the cord from overheating. •Power cord connections should be kept dry and off the ground.
Page 9: Product Description
the appliance becomes wet while turned off, wipe dry before starting. •Do not touch the appliance or its plug with wet hands or while standing in water. •Do not abuse the cord. Never pull the pressure washer by the cord or yank the cord to disconnect it from the receptacle.
Page 10: Know Your Electric Pressure Washer
Know Your Electric Pressure Washer Read the owner’s manual and safety instructions carefully before operating the electric pressure washer. Compare the illustration below to the electric pressure washer in order to familiarize yourself with the location of the various controls and adjustments.
Page 11: What Is In The Box
What is in the Box •Electric pressure washer •Trigger gun •Spray wand •4 Quick-Connect nozzles (15º, 25º, 40º and Soap) •Turbo nozzle •Needle clean-out tool •High-pressure hose •Garden hose adaptor •User’s manual IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts.
Page 12 2.Push the spray wand:Align the bayonet when installing, push the spray wand down far enough into the trigger gun and turn it to lock it into position (Clockwise).When disassembling, push the spray wand down far enough into t h e t r i g g e r g u n a n d t u r n i t t h e n p u l l i t o u t (Counterclockwise) (Fig.2).
Page 13 4.Connect the high-pressure hose to the trigger gun: Press the orange part (A) of the trigger gun and then insert or remove the high-pressure hose (Fig.4). Fig.4 5. Connect the high-pressure hose to the water outlet on the machine:Press the Button(B) on the water outlet and then insert or remove the high-pressure hose (Fig.5).
Page 14 WARNING! Keep hose away from sharp objects. Bursting hoses may cause injury. Examine hoses regularly and replace it if damaged. Do not attempt to mend a damaged hose. 6.Connect the garden hose adaptor (female coupler) to the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose adaptor (Fig.
Page 15 Fig.7 Connect to water supply Garden hose CAUTION! The pressure washer must only be used with clean water; use of unfiltered water containing corrosive chemicals will damage the pressure washer. 8. Make sure the motor switch Tis pushed to the OFF (0) position before plugging the unit into the power outlet (Fig.8).
Page 16: Operation
9.Check that the electrical supply voltage and frequency (Volt/Hz) correspond to those specified on the pressure washer rating plate. If the power supply is correct, you may now plug the pressure washer into the power outlet (Fig.9). Fig.9 Reset GFCI Power light indicator NOTE:The GFCI may need to be reset when first plugged...
Page 17: Using The Nozzles
1.Turn the water supply tap on completely. 2.Make sure the safety lock is down and in its original position (The function is that the trigger cannot be pressed after being locked, so as to prevent children from touching it by mistake. It CAN NOT keep the trigger always pressed.) (Fig.10) Fig.10 Slot...
Page 18 CAUTION! NEVER change nozzles without locking the safety lock on the trigger handle. WARNING! High-pressure jets can be dangerous if subject to misusing. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself. To connect a nozzle to the spray wand: 1.
Page 19: Working With Detergents
Working with detergents Use only detergents specifically designed for use with pressure washers. DO NOT USE household detergents, acids, alkaline solutions, bleaches, solvents, flammable material, or industrial grade solutions. These could damage the pressure washer. Many detergents may require mixing prior to use.
Page 20: Shutting Down
Shutting down 1.Turn the switch to the OFF (0) position and unplug the power cord from the outlet. 2.Turn off the water source. 3.Hold the trigger to release water pressure till the high-pressure spray gun has no longer sprays water. 4.Disconnect the garden hose from the water inlet on the unit.
Page 21: Storage
Storage CAUTION! Always store your pressure washer in a location where the temperature will not fall below 32ºF (0ºC). The pump in this machine is susceptible to permanent damage.If it gets frozen. FREEZE DAMAGE IS NOT COVERED BY THE WARRANTY. •Store the machine and accessories indoors in a dry, covered area where it is not subject to adverse weather conditions(DOES NOT reach freezing temperatures).
Page 22 Fig.14 Fig.15 A.Garden hose B.Garden hose adaptor C.Water inlet(female coupler) 2.Clean the nozzle with the needle clean-out tool provided (Fig. 16). Remove the spray wand from the gun; remove any dirt from the nozzle hole and rinse. Fig.16 3.Remove additional debris by back flushing water through the nozzle and spray wand.
Page 23: Precautions For Daily Use
Precautions for Daily Use 1. Before using, you must ensure that the water source is clean and free of impurities.To prevent clogging, the use of sewage is strictly prohibited. Do not use when the temperature is lower than 0℃. 3.Testing and checking the water intake filter periodically to prevent clogging, otherwise could jeopardize operation of the pump.
Page 24: Troubleshooting
NOTE: If the problem cannot be solved, please send the video or picture of the problem to our mail: SUNPOW.SERVICE2019@OUTLOOK.COM We will help solve the problem. Problems Possible Cause Possible Solution Machine refuses •Power failure/machine...
Page 25 Machine stops Fuse has blown. • Replace fuse. Switch off • Incorrect mains other machines using voltage. the same circuit. • Thermal sensor • Check that the mains activated. voltage corresponds to • Nozzle partially specification on the blocked. model tag. •...
Page 26: Warranty
If you need to replace parts or products, please feel free to contact us, we will provide sales services within 24 hours. SUNPOW will always stand behind our products and try our best to help our customers to solve the problems.
