Summary of Contents for ZWAYN GENIXGREEN

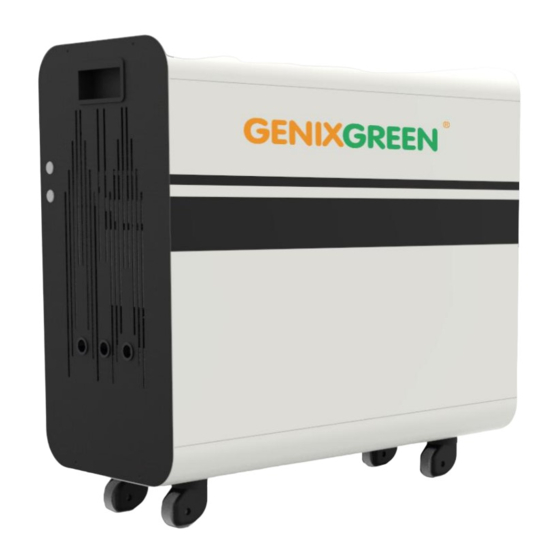

- Page 1 逆控一体机用户手册 ALL-IN-ONE SOLAR ESS USER MANUAL 3.2KVA INVERTER 5KWH LFP BATTERY...
- Page 2 内容CONTENT 1. 关于本手册ABOUT THIS MANUAL..................1.1 目录CATALOG......................... 1.2 范围SCOPE........................1.3 安全说明SAFETY DESCRIPTIONS ................2. 引言INTRODUCTION......................2.1 功能FUNCTION....................... 2.2 基本系统构造BASIC SYSTEM STRUCTURE............3. 安装INSTALLATION......................3.1 开箱与检查UNPACKING AND INSPECTION............. 3.2 准备PREPARE......................... 3.3 安装单元INSTALL UNIT....................3.4 AC输入/输出连接 AC INPUT/OUTPUT CONNECTION..........3.5 PV连接 PV CONNECTION.................... 3.6 总装FINAL ASSEMBLY....................
- Page 3 1. 关于本手册ABOUT THIS MANUAL 1.1 目录CATALOG This manual describes how to assemble, install, operate the units and how to troubleshoot of this unit. Please read this manual carefully before installation and operation.Keep this manual for future reference.本手册介绍了如何组装，安装，操作设备以及如何对设备进行 故障排除。 在安装和操作之前，请仔细阅读本手册。保留本手册以备将来参考。 1.2 范围SCOPE This manual provides safety guidelines of installation,and the information on tools and wiring.本手册提供了安装安全准则，以及有关工具和接线的信息。...
- Page 4 2. 介绍INTRODUCTION This is a multi‐function inverter, combining varies function of inverter, solar charger and battery charger ,supply uninterruptible electricity energy to loads.Its easy‐accessible comprehensive LCD touch screen display allowed user setting the varies date according to user’s requirements,such as battery charging current,AC/solar charger priority, and setting different input voltage based on different applications.
- Page 5 Figure 1 Hybrid Power System 2.3 Product Overview...
- Page 6 1.搬运提手 2.设备开关 3.电池BMS开关 4.AC充电输入端口 Carry Handle Device switch Battery BMS switch AC Charge Input Port 5.AC输出端口 6.PV充电输入端口 7.移动脚轮 8.LCD操作触控显示屏 AC Output Port PV Charge Input Port Movable wheels LCD operate touch display screen 3. INSTALLATION安装 3.1 Unpacking and Inspection开箱检查 Before installation,please inspect the unit. Be sure that everything in the package is not damaged.
- Page 7 are two terminal blocks with “IN” and “OUT” markings. Please do NOT connect input and output connectors wrong. 警告！ 在连接交流输入电源之前，请在逆变器和交流输入电源之间安装一个单独的交流断 路器。 这将确保在维护期间可以安全地断开逆变器的连接，并充分保护其免受交流输入的 过电流影响。 交流断路器的推荐规格为3KVA为32A，5.5KVA为50A。 有两个带有“ IN”和 “ OUT”标记的端子块。 请不要将输入和输出连接器连接错误 WARNING! All wiring must be performed by a qualified personnel. It's very important for system safety and efficient operation to use appropriate cable for AC input connection.
- Page 8 Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.PV模块的开路电压（Voc）不超过最大值 逆变器光伏阵列开路电压。 Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage.光伏组件 的开路电压（Voc）应高于最小值。 电池电压。 3.2KVA INVERTER MODEL逆变器型号 Max. PV Array Open Circuit Voltage 450Vdc 最高...
- Page 9 3.6 Final Assembly最后组装 After connecting all wires, please put bottom cover back by screwing screws.连接所有电线后， 请拧紧螺丝将盖板装回原处。 4.OPERATION操作 4.1 Power ON/OFF电源开/关 Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch(located on the button of the case) to turn on the unit.正确安装本机并正确连接电 池后，依次按下盖板上电池和机器On /Off开关（位于机箱按钮上）即可打开本机.
- Page 10 4.3 LCD Display Icons显示屏图标 Icon Description说明 图标 Product model and operation time产品型号及运行时间 Operation information include fault and warning code操作信息包括 故障和警告代码 Input voltage and frequency information输入电压和频率信息 Output voltage and frequency information输出电压和频率信息 PV voltage and power information光伏电压和功率信息 Battery voltage and current information电池电压和电流信息 Load power and percent information负载功率和百分比信息...
- Page 11 Indicates unit connects to the PV panel指示设备已连接至光伏面板 Indicates the DC/DC inverter circuit is working指示DC / DC逆变器 电路正在工作 Indicates the AC charger circuit is working指示交流充电器电路正在 工作 Indicates battery level指示电池电量 Function Button功能 Description描述 按钮 Indicates the load表示负载 The setting button include language，working mode，input，output， battery，AC charging，MPPT，parallel，date and time，peak valley，...
- Page 12 AC: (default) AC will provide power to the load as the first priority, solar charging the battery. When solar energy is insufficient, AC and solar energy charge the battery at the same time. When AC is unavailable it will be powered by solar energy or batteries.
- Page 13 AC Width Range: (Default) 120-280Vac Input输入 交流宽度范围：（默认）120-280Vac AC narrow range: 170-280Vac 交流电窄范围：170-280Vac Output Voltage: (Default) 230Vac、220Vac 、 240Vac Output输出 输出输出电压：（默认）230Vac，220Vac， 240Vac Output frequency: (Default)50Hz 、60Hz 输出频率：（默认）50Hz，60Hz Battery Type: (Default) Lead-acid Battery, Iron Battery, Lithium Battery Communication, Customization电池电池类型：（默认）铅酸电 池，铁电池，锂电池通信，自定义 Low-voltage alarm: (default 44.0Vdc) setting range of 48V 36V (or 24V 18V) to 48V 50V (or 24V 25V) setting increase or decrease of 0.1V.
- Page 14 user-defined first in battery working mode. 请 注意：如果需要设置，请在电池工作模式下首 先选择用户定义。 （default 30A）setting range is 10A to 60A, the AC charge current交 increment or decrement is 10A per click（默认 30A），设置范围为10A至60A，每次增减为 流充电电流 （default 15A）setting range is 1A to 20A, the MPPT charge current increment or decrement is 1A per click（默认...
- Page 15 Others其他 Factory Default setting出厂默认设置 Generated energy diagram display for per Generated energy Day/Month/Year每天/每月/每年的发电图显示 record发电记录 History setting Faulty data record History record for faulty date or others 历史设置 错误的数据记录 错误日期或其他的历史记录 Version data display for LCD/inverter control Version data board/MPPT program and machine modelLCD 版本数据...
- Page 16 Warning code Warning Event警告事件 警告码 Battery voltage is too low电池电压过低 Input voltage is too low输入电压过低 Input voltage is too high输入电压过高 Overload过载 Over temperature过温 Fan is locked when inverter is on逆变器开启时风扇被锁定 Battery voltage is too high电池电压过高 TROUBLE SHOOTING故障排除 LCD/LED/BuzzerLC Problem问题 Possible cause可能 What to do措施...
- Page 17 1. Check if AC wires are too thin and/or too long. 检查交流电线是否太细 和/或太长 2. Check if generator (if applied) is working well or if input voltage range setting is correct. (UPS Insufficient quality LED is flashing LED Appliance)Change of AC power交流电 output source检查发...
- Page 18 If PV input voltage is higher than specification, the output power will be Reduce the number of Fault code 22 derated. At this PV modules in series or time, if connected the connected load减少 故障代码22 loads is higher than 串联的光伏模块数量或 derated output 减少连接的负载...
- Page 19 流电压 5000W Max PV array power最大光 伏阵列功率 3200W Rated output power额定输 出功率 Max PV open circuit 450VDC voltage最大PV开路 电压 PV operating voltage range 120-450VDC 光伏工作电压范围 PV normal operating 280-360VDC voltage光伏标称工作电压 220/230/240VAC Normal output voltage标称 输出电压 230 ± 5％VAC Output voltage range输出 电压范围...
- Page 20 High Loss Voltage高损耗电压 280Vac±7V High Loss Return Voltage高损耗 270Vac±7V 返回电压 Max AC Input Voltage最大交流 300Vac 输入电压 Normal Input Frequency正常输 50Hz / 60Hz (Auto detection自动侦测) 入频率 Low loss Frequency低损耗频率 40±1Hz Low loss Return Frequency低损 42±1Hz 耗返回频率 High loss Frequency高损耗频率 65±1Hz High loss Return Frequency高损 63±1Hz 耗返回频率...
- Page 21 Single cell Recovery Voltage 单串过放检测电压（V） 2.8V Single cell Cut-off Voltage 过放电保护 Over- 单串过放解除电压（V） discharge Protection 3.0V Single cell Recovery Voltage 过流检测电流（A） 120A 过电流保护 Cut-off current Over-current Release load 过流保护解除条件 Protection Release condition 断开负载 Enable 短路保护功能 短路保护 Short Circuit Protection 有短路保护 Short Circuit Release load 短路保护解除条件...
