Summary of Contents for JCZK 300C 6S

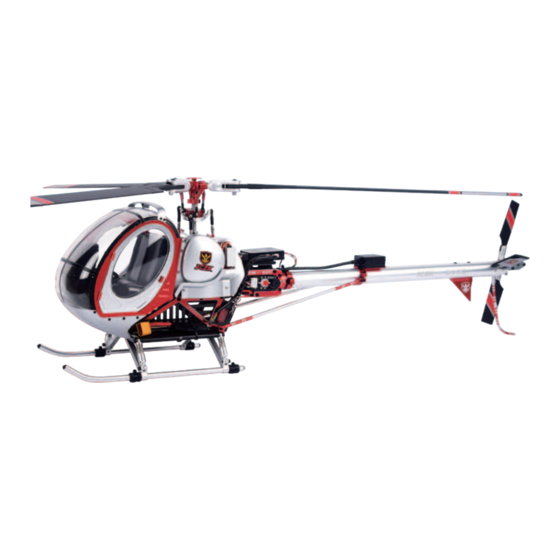

- Page 1 快速入门指南 QUICK START GUIDE JCZK-300C 6S INTELLIGENT REALISTIC HELICOPTER Thank you for buying and using...
- Page 2 JCZK-300C 6S像真机 PREFACE Thank you for choosing this product. In order to make it easier and more convenient for you to use and safely operate this helicopter, please read this manual in detail before op- erating it. At the same time, please keep this manual properly for future adjustments and adjustments.
-
Page 3: Flight Environment Requirements
JCZK-300C 6S像真机 CAVEAT This product is relatively complicated and requires a period of familiarization before it can be used safely. Be sure to read the entire manual carefully, understand the basic knowl- edge of the helicopter, and be familiar with the functions of the product before operating;... - Page 4 JCZK-300C 6S像真机 FLIGHT OPERATION REQUIREMENTS Before the flight 1: Make sure to be familiar with the remote control control method, familiar with the heli- copter search star unlocking steps, flight mode, one-key return to home, etc. 2: Check to make sure that the blade counterweight is stable and balanced; whether the blade is damaged or worn, especially the end of the blade.
- Page 5 3: Do not make calls, send text messages, or use other mobile device functions that may interfere with your helicopter operation during the flight. 4: Do not operate the helicopter in poor physical or mental conditions such as drinking, taking drugs, drug anesthesia, dizziness, fatigue, nausea, etc. 5: Please pay attention to the battery voltage of the aircraft at all times during the flight.
-
Page 6: Product List
JCZK-300C 6S像真机 PRODUCT LIST *Gifts Radiolink AT9S Pro remote control 1350mAh battery model airplane simulator B6 charger Paddle... -
Page 7: Charging Instructions
JCZK-300C 6S像真机 EMULATOR Note: The model airplane helicopter has strong power and does not allow any abrasion or collision, otherwise it will not be able to fly normally. Please be careful to control it. after receiving the helicopter, please do not rush to fly, please practice the simulator first, and you can quickly familiarize yourself with the... - Page 8 9: Do not mix the battery with metal objects, lest metal objects touch the positive and negative poles of the battery, causing short circuit, damaging the battery or even causing danger. JCZK-300C 6S像真机 BATTERY INSTALLATION METHOD Detailed battery installation (Youku scan code to watch)
-
Page 9: Return Key
JCZK-300C 6S像真机 GET TO KNOW YOUR REMOTE Please do not arbitrarily adjust the parameters of the remote control, which will cause confusion in the remote control data, and you will not be able to start your helicopter. You need to send it back to the origi-... - Page 10 Joystick function: American hand Go ahead Left stick Right stick Rise Decline Back Left hand Right hand Fly left Fly right Joystick function: Japanese hand Go ahead Left stick Right stick Rise Decline Back Left hand Right hand Fly left Fly right The default control mode of the remote control is the American hand when it leaves the factory.
-
Page 11: Power Button
Unlock search star/ JCZK-300C 6S像真机 must be operated outdoors to have GPS signal switch A is off (toward the person), the 1: First make sure that the throttle F switch is off (toward the ground), the flight mode of the... - Page 12 2: Turn on the power of the remote control, and then power on the helicopter; wait for the flight control to self-check, the flight control light changes from yellow light to blue light, press and hold the red safety switch until it stays on. If the flight control keeps the yellow light, check whether the remote control lever is in the correct position before starting the control, whether the fine-tuning is maintained at 0 po- sition, and measure whether the helicopter battery is fully charged, etc.
- Page 13 Many model friends are in auto-stabilization mode and the green light of the flight control flashes, and then immediately switch to fixed-point mode. The flight control unlocks the takeoff without waiting for the green light of the fixed-point mode, so after take-off, it will drift, unable to hover at fixed point, and unable to find the direction with one key return.
- Page 14 Helicopter Remote control Way to control (American hands) For the nose) *Throttle stick is used to control helicopter lift. Left hand *Push the lever upwards, the helicopter rises; pull the lever Throttle stick downwards, the helicopter lowers. *The height of the helicopter remains the same in the neutral position (automatically fix the height).
- Page 15 Detailed explanation of G lever flight mode 1: Self-stabilization mode G flight mode The fuselage will automatically restore balance, but it will Self not hover at a fixed point. Manual adjustment is required to -stabilization control the flight attitude. The maximum inclination angle is Fixed point limited, and it cannot fly backwards.
