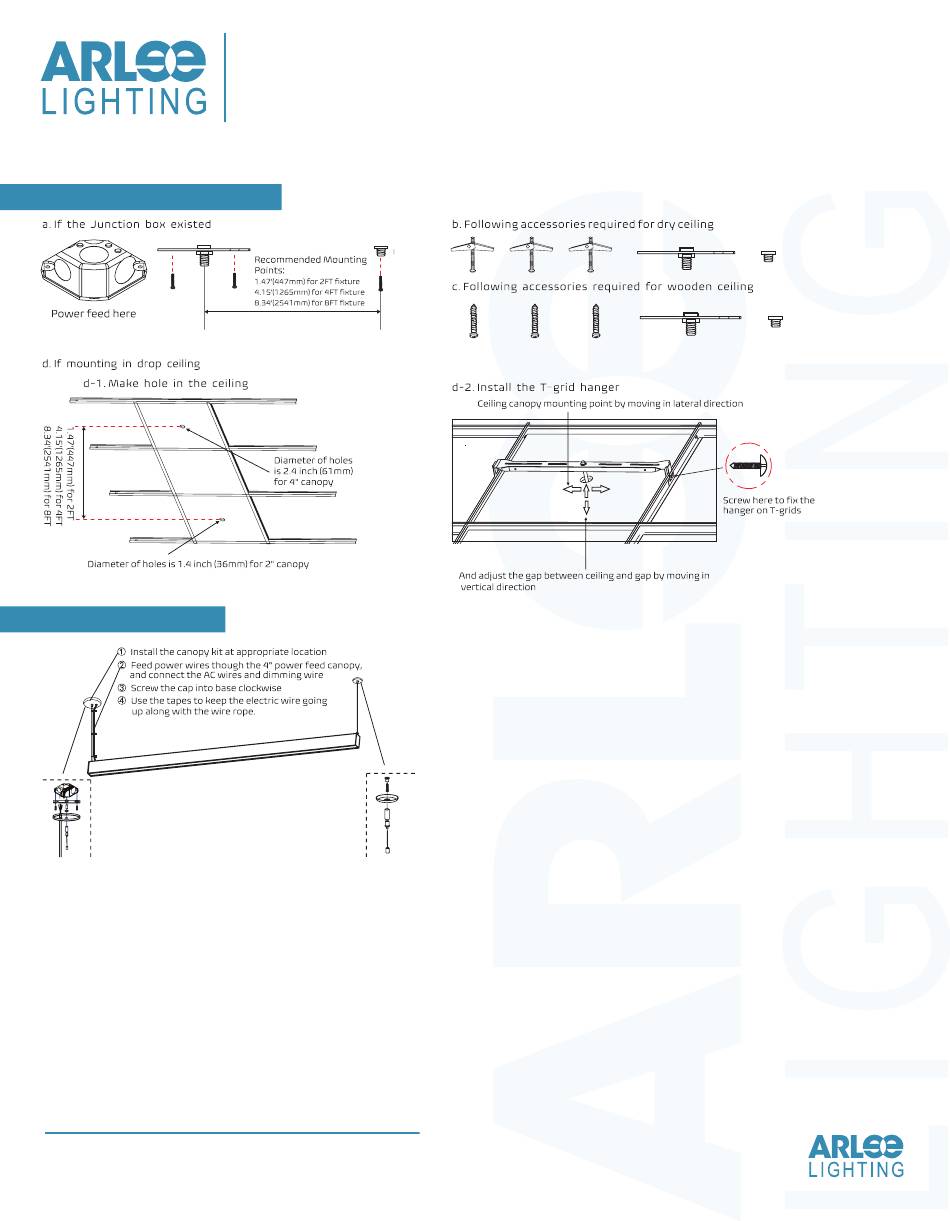

INSTALLATION FOR PENDANT INDEPENDENT

STEP 1

INSTALL MOUNTING POINT

STEP 2

HANG LUMINAIRE

NOTES:

• INDOOR USE ONLY

• AVOID FALLING

• IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN.DO NOT DISASSEMBLE IT AT YOUR OWN DISCRETION.

• UNDER NO CIRCUMSTANCES CAN THE LIGHTING FIXTURE BE COVERED WITH HEAT INSULATION GASKET OR SIMILAR MATERIALS.

• THE MAXIMUM CONNECTION OF EACH INPUT LINE IS LESS THAN 80FT(2400CM) IN 230AC,

LESS THAN 100FT(3000CM) IN 277AC, LESS THAN 40FT(1200CM) IN 120AC

INSTALLATION GUIDE

BELLA ARCHITECTURAL

LINEAR SERIES

WWW.ARLEELIGHTING.COM

Table of Contents

Need help?

Do you have a question about the BELLA ARCHITECTURAL LINEAR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ARLEE LIGHTING BELLA ARCHITECTURAL LINEAR Series

Page 1 BELLA ARCHITECTURAL BELLA ARCHITECTURAL LINEAR SERIES LINEAR SERIES INSTALLATION FOR PENDANT INDEPENDENT STEP 1 INSTALL MOUNTING POINT STEP 2 HANG LUMINAIRE NOTES: • INDOOR USE ONLY • AVOID FALLING • IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN.DO NOT DISASSEMBLE IT AT YOUR OWN DISCRETION. •...
Page 2 BELLA ARCHITECTURAL BELLA ARCHITECTURAL LINEAR SERIES LINEAR SERIES INSTALLATION FOR PENDANT CONTINUOUS RUN STEP 1 TAKE OFF THE END CAP AND TAKE OUT THE LED MODULAR STEP 2 INSTALL THE CANOPIES, CONNECTORS AND FORE AND AFT END CAPS STEP 3 INSTALL THE FIRST LUMINAIRE,THEN WIRING INSTALLATION GUIDE WWW.ARLEELIGHTING.COM...
Page 3 BELLA ARCHITECTURAL LINEAR SERIES STEP 4 CONNECT THE REST LUMINAIRES IN TURN STEP 5 PRESS THE LED MODULAR INTO HOUSING STEP 5* IF CUSTOMIZE THE DIFFUSER, PRESS IT INTO THE LED MODULAR, THEN CLIPPING IN PLACE INSTALLATION GUIDE WWW.ARLEELIGHTING.COM...
Page 4 BELLA ARCHITECTURAL LINEAR SERIES INSTALLATION FOR SURFACE MOUNTED INDEPENDENT STEP 1 MAKE HOLE IN THE CEILING STEP 2 INSTALL THE HOUSING IN THE CEILING STEP 3 PRESS THE LED MODULAR INTO HOUSING AND STEP 4 INSTALL THE END CAP INTO HOUSING CONNECT WIRES PROPERLY INSTALLATION GUIDE WWW.ARLEELIGHTING.COM...
Page 5 BELLA ARCHITECTURAL LINEAR SERIES INSTALLATION FOR SURFACE MOUNTED CONTINUOUS RUN STEP 1 ACCORDING TO THE “INDEPENDENT LUMINAIRE” STEP 2 INSERT THE LINE CONNECTION KIT INTO FIRST HOUSING STEPS TO INSTALL THE FIRST HOUSING STEP 3 CONNECT THE REST LUMINAIRES IN TURN, THEN WIRING STEP 4 PRESS THE LED MODULAR INTO HOUSING, THEN INSTALL THE END CAP STEP 4*...
Page 6 BELLA ARCHITECTURAL LINEAR SERIES WIRING DIAGRAM STEP 1 For 120/230/277V applications make the following Electrical Connections: a. Connect the black luminaire lead to the supply lead. b. Connect the white luminaire lead to the neutral supply lead. c. Connect the green or green/yellow ground lead to the green supply lead STEP 2P 1 INSTALL MOUNTING POINT...
