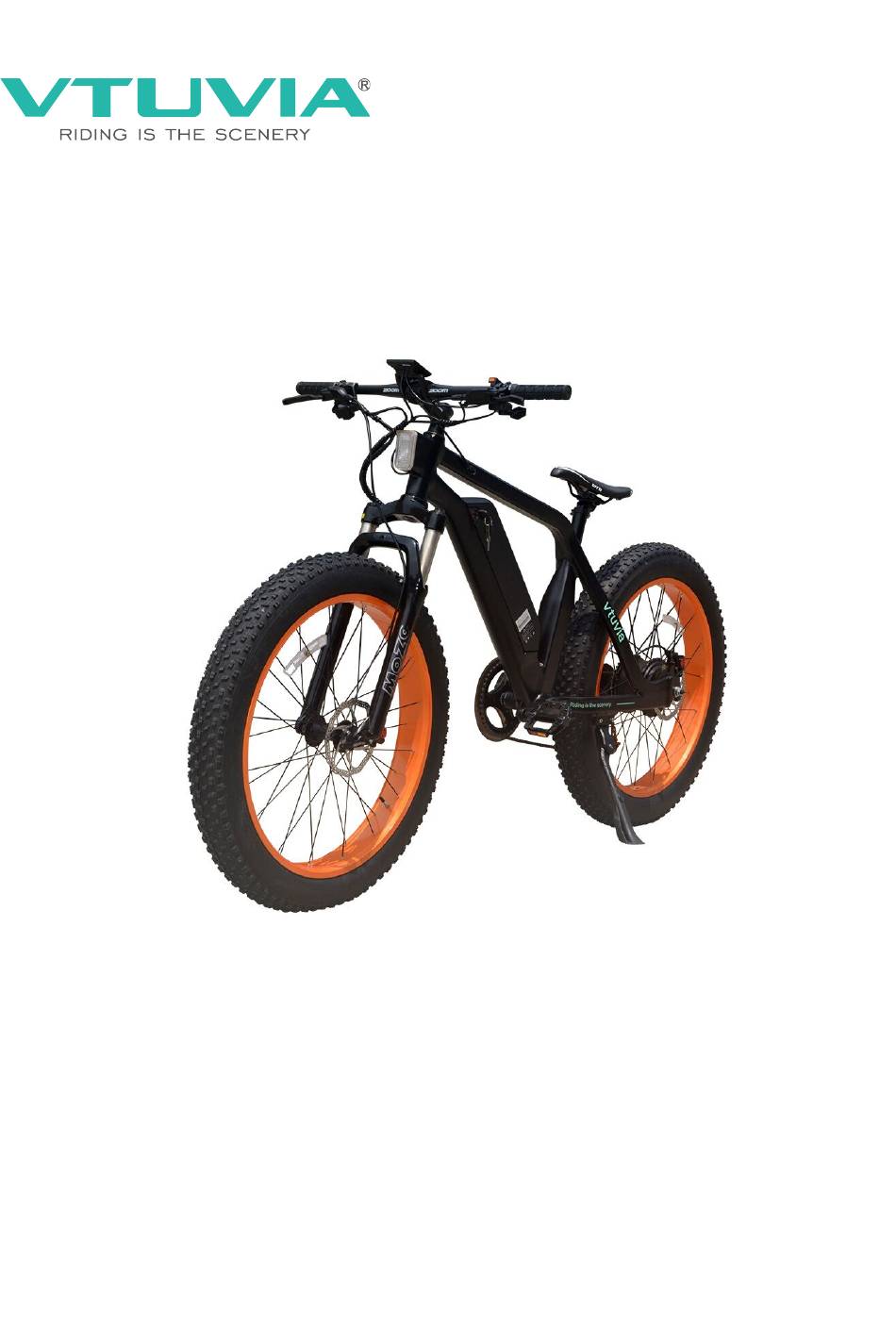

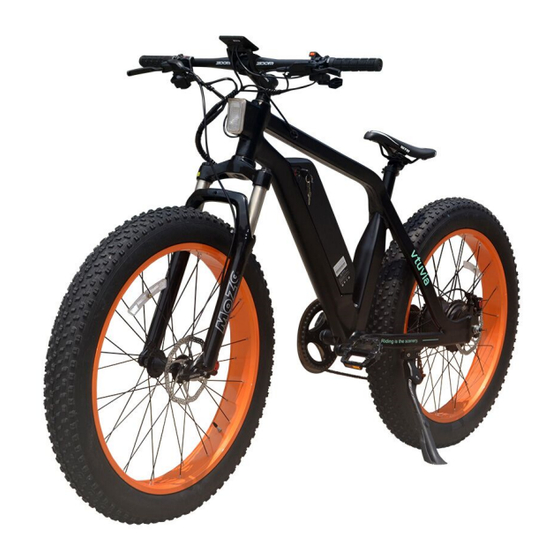

  • Page 1 USER MANUAL V-SN100...
  • Page 2 Thank you for purchasing VTUVIA Electric Bikes, we are one of the best Ebike companies based on China. VTUVIA produces High-quality Bikes&Considerate Service for every customers, to help them enjoy a good ring. Before riding, please read the manual carefully, and carefully check the complete components to ensure your safety.
  • Page 3 Main Technical Parameters And Specification Motor: 48v 750w rear geared brushless li -i o n b a tt er y Battery: 48v/13AH Samsung Controller: 48v 20A Intelligent brushless PAS: 1 :1 intelligent pedal assistant system Range: 22 miles(electric only), 35miles(pedal assistant) Charging Time: AC 100v-240v 1.8amps smart charger,5-6 hours Rear Derailleur:...

  • Page 4: Lcd Display Instruction

    Display Instruction 1.SheIl's Size and Material The shell's material is ABS. LCD screen is made of imported high hardness acrylic, and the hardness is equal to tempered glass. Side View Front View of the Holder Front View Side View of the Holder...
  • Page 5 Display Instruction 2.1 Headlight 2.2 Power status 2.3 Multi-functions Total Diatance(ODO), Single Trip Distance A/B(TRIPA/TRIPB), Voltage (VOL), Current(CUR), Reat Miles(RM), Riding time(TM) 2.4 E-Bike Mode: Walk Cruise, Auto, Manual(not indicatied) 2.5 Pedal assist adjust PAS grades: 0-3, 0-5(default) or 0-9 modes 2.6 Speed Real speed(SPEED), Maximum speed(MAX), Average speed(AVG), MPH, KM/Hare both optional.
  • Page 6 Display Instruction 2.7 Error display Meaning of Error Code: Error Code Error Status Notes Normal Status Save Brakes PAS promble(a riding mark) not implemented 6KM/H cruising Real-time cruising Battery is undervoltage Motor's problem Throttle's problem Contrller's problem Communication Receiving problem Communicaton Sending problem BMS Communication problem Headlight problem...
  • Page 7 Display Instruction 2.9 Parameters setting P01 Background luminance.1 is the darkest, 3 is the brightest. P02Unit of the mileage. 0 is KM, 1 is MILE. P03 Voltage grades. 24V, 36V, 48V. The original voltage is 48V. P04 Sleep time. 0 is without sleep, other numbers stand for the sleep time (1-60 min). P05 PAS grades.
  • Page 8 Display Instruction 3.Button Introductions 3.1Duringriding,needchangePAS/Speedgrades,shortlypress"A""V" 3.2 During riding, need change data in Multi-function Area, shortly press "M"; Long press "M", could switch status between MODE and ON/OFF; Long press as a compound button, is mainly used for parameter setting, which could reduce misoperation due to complicated operation.

  • Page 9: Connection Diagram

    Connection diagram...
  • Page 10 IMPORTANT! We reserve the right to make modifications to e-bike without prior notice. Changzhou Vtuvia Electric Technology Co., Ltd. Address: 9-1, Taihu East Road, Xinbei District, Changzhou, China info@vtuvia.com Tel: +86 519 8109 5767 www.vtuvia.com...
