Summary of Contents for dpnao YW-017

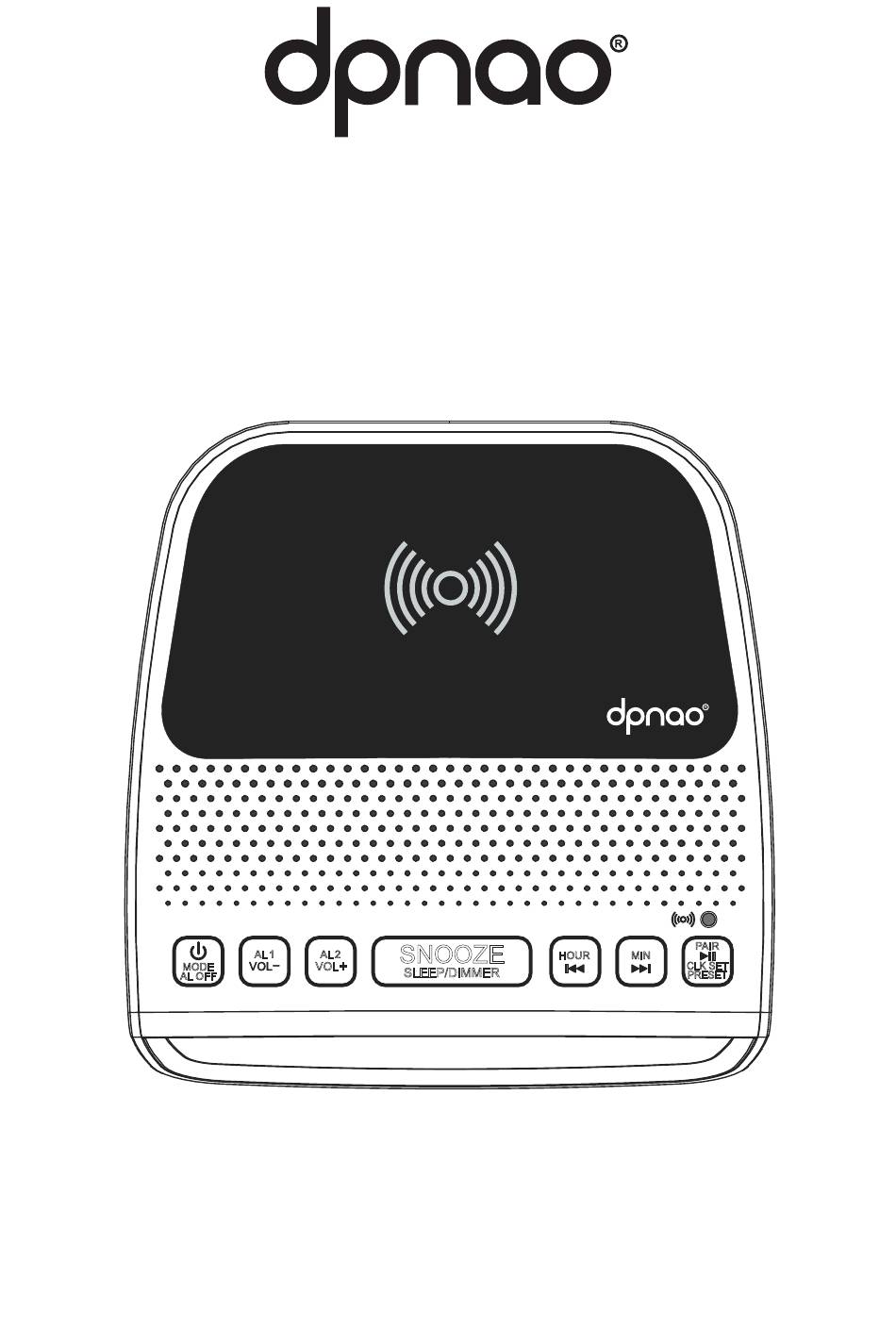

- Page 1 WIRELESS PLAYER / FM RADIO / ALARM CLOCK & WIRELESS CHARGING Model: YW-017 WIRELESS CHARGE RADIO SNOOZE PAIR AL 1 AL 2 HOUR CLK SET MODE SLEEP/DIMMER PRESET AL OFF Instruction Manual PLEASE READ BEFORE OPERATING THIS EQUIPMENT...
- Page 2 FCC Warming FCC ID: 2AOW9-YW-017 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Top View
Main Location Controls TOP VIEW WIRELESS CHARGE RADIO SNOOZE PAIR AL 1 AL 2 HOUR CLK SET MODE SLEEP/DIMMER PRESET AL OFF FRONT VIEW REAR VIEW IN THE BOTTOM FOR CLOCK AND ALARM BACKUP ONLY... - Page 4 Main Location Controls WIRELESS CHARGING AREA AL2 / VOL+ ( Alarm 2 set) Button AL1 / VOL- ( Alarm 1 set) Button POWER / MODE / AL OFF(Alarm Off) Button SNOOZE / SLEEP / DIMMER Button HOUR Button Button WIRELESS CHARGING Indicator PAIR / / CLK SET / PRESET(Radio) Button SLEEP Indicator...
-
Page 5: Battery Operation
Setup Connect power adapter PLUG THE ADAPTER BODY TO AC OUTLET Connect power adapter follow the figure. AC ADAPTER After connection, the unit is in clock mode. NOTE: In any time, long press the CONNECT TO DC INPUT POWER button to clock mode. JACK OF MAIN UNIT Select sound source Press the MODE button repeatedly to select different sound source below:... -
Page 6: Radio Operation
Radio Operation Automatic Scan radio station Long press the POWER button to clock mode and press MODE button repeatedly to select RADIO mode. When unit turn to radio mode, the display will show radio frequency. Press and hold the PRESET button 5 seconds to scan through the frequency band and memory the station in preset. - Page 7 Set the Actually Time After plug in the power, the unit show the clock time (in clock mode) on display. Long press the POWER button to enter clock mode. The clock time will be show on display. Hold the CLK SET button until the display “12-hr” or “24-hr” digits blink Press the button to set the 12 / 24 hour time format and press the CLK SET button once to confirm.
-
Page 8: Using The Snooze Function
Wake to Beeping Alarm The Beeping Alarm will automatically turn on when the alarm time is reached. The volume need to set to the desired sound level. The corresponding AL1 or AL2 indicator will blink The beep alarm will sound for 60 minutes and then turn off automatically if the SNOOZE button is not pressed. -
Page 9: Dimmer Function
The word “bt” will flash quickly on the display and unit will enter pairing mode. When pairing, remain within 10 feet of the unit. On your Wireless device, select the “YW-017” in your Wireless settings to pair. When successfully paired and connected, a chime will sound and the display will show “bt”... - Page 10 Using USB Charging Your Smartphone Connect a USB cord for external device battery charging (DC5V, 1000mA) Install the adapter follow SETUP page Insert plug of USB cable (not include) into USB charging port on the unit. Connect other end charging USB socket of your external device (Personal Player / Mobile Phone).
-
Page 11: Specification
PLACE THE MOBILE WITH ITS DISPLAY UPWARD WIRELESS CHARGE THE INDICATOR WILL RADIO LIGHT WHEN MOBILE SNOOZE PAIR AL 1 AL 2 HOUR MODE CLK SET SLEEP/DIMMER PRESET AL OFF CONNECT CORRECTLY. Specification Use included adapter AC Power AC~ Input 100-240V 50/60 Hz , DC Output 9V , Adapter Connect DC Jack 2000mA Wireless Charging...
