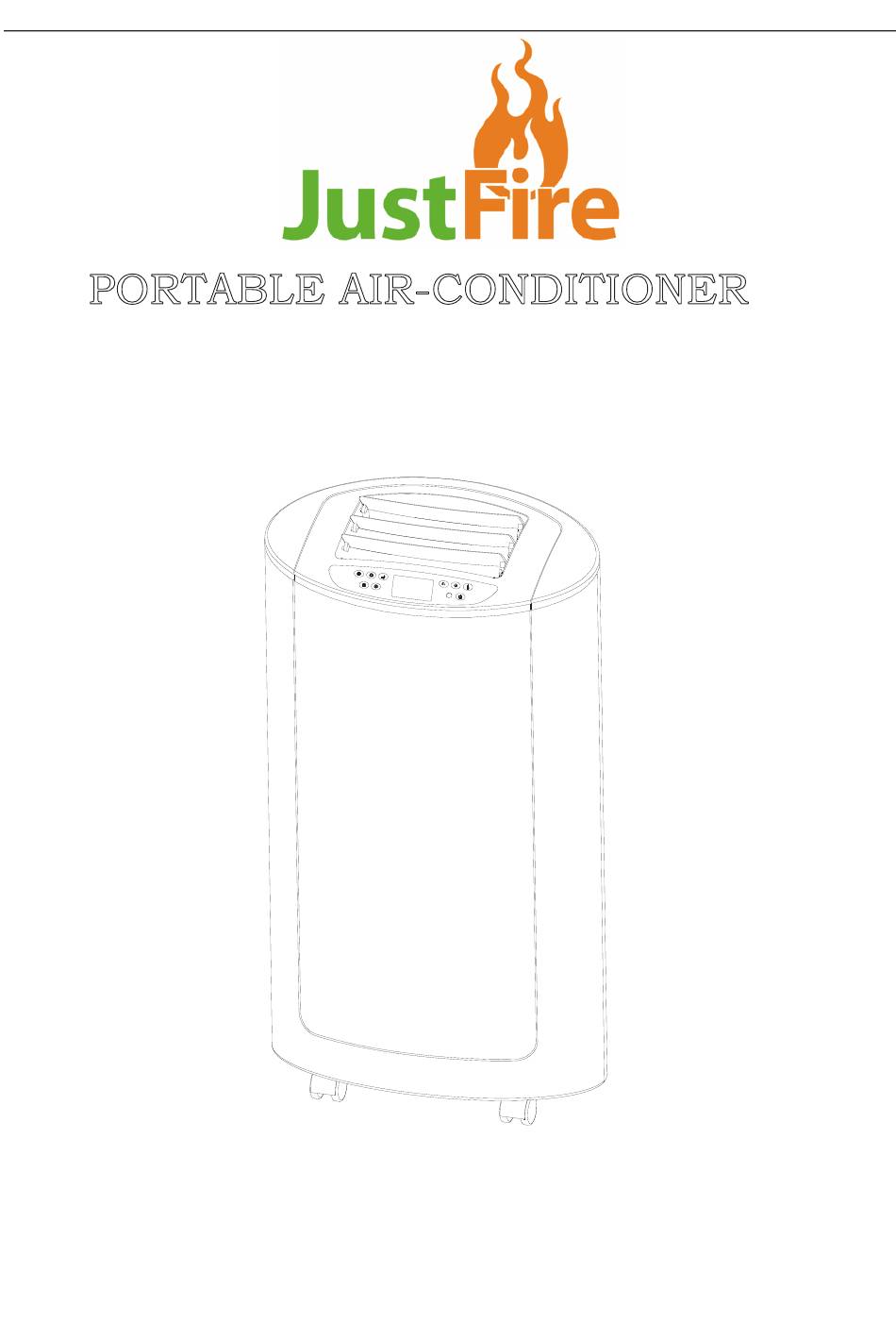

- Page 1 Page:1/14 PORTABLE AIR-CONDITIONER USER MANUAL AIRCO12000 Thank you for selecting this new model portable air conditioner. Please safely keep this user manual for you later reading, and be sure to read this manual carefully before using the unit.
-
Page 2: Table Of Contents
Page:2/14 CONTENTS 1．IMPORTANT SAFEGUARD ……………………….…..3 2．FEATURES AND PARTS LIST………………………….…. 4 3．INSTALLATION …………………………………..…. ……..6 4．CONTROL AND SETTING……………………………………8 5．WATER-DRAINAGE…………………………………………..11 6．MAINTENANCE………………………………………………..12 7．TROUBLE SHOOTING………………………………………..13 8．APPENDIX……………………………………..……………….14... -
Page 3: 1．Important Safeguard
Page:3/14 Thank you for selecting this new model portable air conditioner. Please safely keep this user manual for you later reading, and be sure to read this manual carefully before using the unit. IMPORTANT SAFEGUARDS Important Safeguards. ·The appliance is for indoor use only. ·Read all instructions, Rated Power Supply: Please connect the unit with Grounded Power Sources: 220-240VAC, 50HZ. -
Page 4: 2．Features And Parts List
Page:4/14 FEATURES AND PARTS LIST 1、Features Self evaporative system, no water tank. Oval and thin design, looks unique and luxury. Wing outlet closes automatically after shut down the unit, prevent dirt into machine. LCD display, indicating temperature and operation status. ... - Page 5 Page:5/14 2、Parts list： ① ② ⑨ ③ ④ ⑥ ⑩ ⑦ ⑤ ⑧ 1. Tope cover 9. Up filter frame 2. Air outlet grille 10. Protective net 3. Control panel 11. Down filter frame 4. Front cover 12. Water plug 5.
-
Page 6: 3．Installation
Page:6/14 INSTALLATION 1. Installation Warning：Before using this unit, please keep it upright at least 2 hours. The unit can be moved easily among the rooms, but please note the following: 1.1 Assemble hose adaptor（picture 1） （picture 1） 1）Prepare male and female parts of hose adaptor, they are almost same on the structure 2）Each hand hold one part, you can connect them easily. - Page 7 Page:7/14 1.4 Please make sure the unit is upright. The unit should be put on the flat floor and 50cm to around objects. (Picture 5) Fix the other end of the heat-exhausted hose to the air-outlet window kit（picture6, 7） (Picture 6) (Picture 7) Important safeguards The length of the soft hose is from 280 mm to 1500 mm which bases on the unit model.
-
Page 8: 4．Control And Setting
Page:8/14 CONTROL AND SETTING This portable air conditioner of cooling only model has three functions: cooling, dehumidifying and fan. If the machine you purchased is cool and heat model, it has four functions cooling, heating, dehumidifying and fan Fan has three speeds: high speed, middle speed and low speed, Setting temperature is 18--30 C, 24 hours timer, water-throwing function, sensor and water-level protective function. - Page 9 Page:9/14 available when the unit on; auto-run timer is only available when the unit is off. After timer setting accomplishes effectively, icon will keep on flashing until setting time is due. If set again, history record will be cleared. 1.6 Up and Down button：...
- Page 10 Page:10/14 5.Fan ：Press this key to set low/middle/high fan speed. 6.Swing ：Press this key to control swing function. 7.Temperature ：Press this key to choose Centigrade or Fahrenheit. （Only under cooling function） ：Press this key to enable this function. 8.Sleeping 9.Timer ：Press this key to set time.
-
Page 11: 5．Water-Drainage
Page:11/14 WATER-DRAINAGE 1.Manual drainage : 1.1 When water tank is full and unit stop working, please shut off the unit and unplug Please don’t move the model sharply, or the water will spilt out from water received plate. 1.2 Use a water container to take water under the water plug. 1.3 Screw off the water plug and unplug the water blocker, water will come out to the water container. -
Page 12: 6．Maintenance
Page:12/14 Maintenance Cleaning. Please shut off the unit and unplug the plug before cleaning or maintenance Clean the surface Clean the housing with a duster or a soft wet cloth. Do not use chemical solvent (such as benzene, alcohol, gasoline). The surface may be damaged or even the whole case may be deformed. -
Page 13: 7．Trouble Shooting
Page:13/14 Trouble Shooting Don’t repair or disassemble the unit by yourself, unsuitable repair may make the quality-protected card in vain, and even cause damage to the user or his/her possession. Trouble Reason Solution No power supply Power-on and turn on the unit. Water-full indicator illuminate Drain out the inner stored water unit... -
Page 14: 8．Appendix
Page:14/14 APPENDIX Fuse Parameter Type: FSD or 50F Voltage: 250V Current: 3.15A The working principium diagram of the unit: Capillary tube Condenser Compressor Evaporator There is no further notice for the change of the parameters above, the exact parameters base on the rating plate. Disposal: Do not dispose this product as unsorted municipal waste.
