Dynaric MUL-320 Operation Manual

Tensioner for polyerster and polpropylene plastic strap

Table of Contents

Download this manual

MUL-320 Tensioner for Polyerster

and Polpropylene Plastic Strap

Strap Type

Strap Thickness Up to 0.050" (1.27 mm)

Operation Manual

Polyester (PET), Polypropylene (PP)

Up to 3/4" (19 mm)

Seal, buckle

3.6 lbs (1.6 kg)

L: 4.75"; W: 2.75"

Table of Contents

Do you have a question about the MUL-320 and is the answer not in the manual?

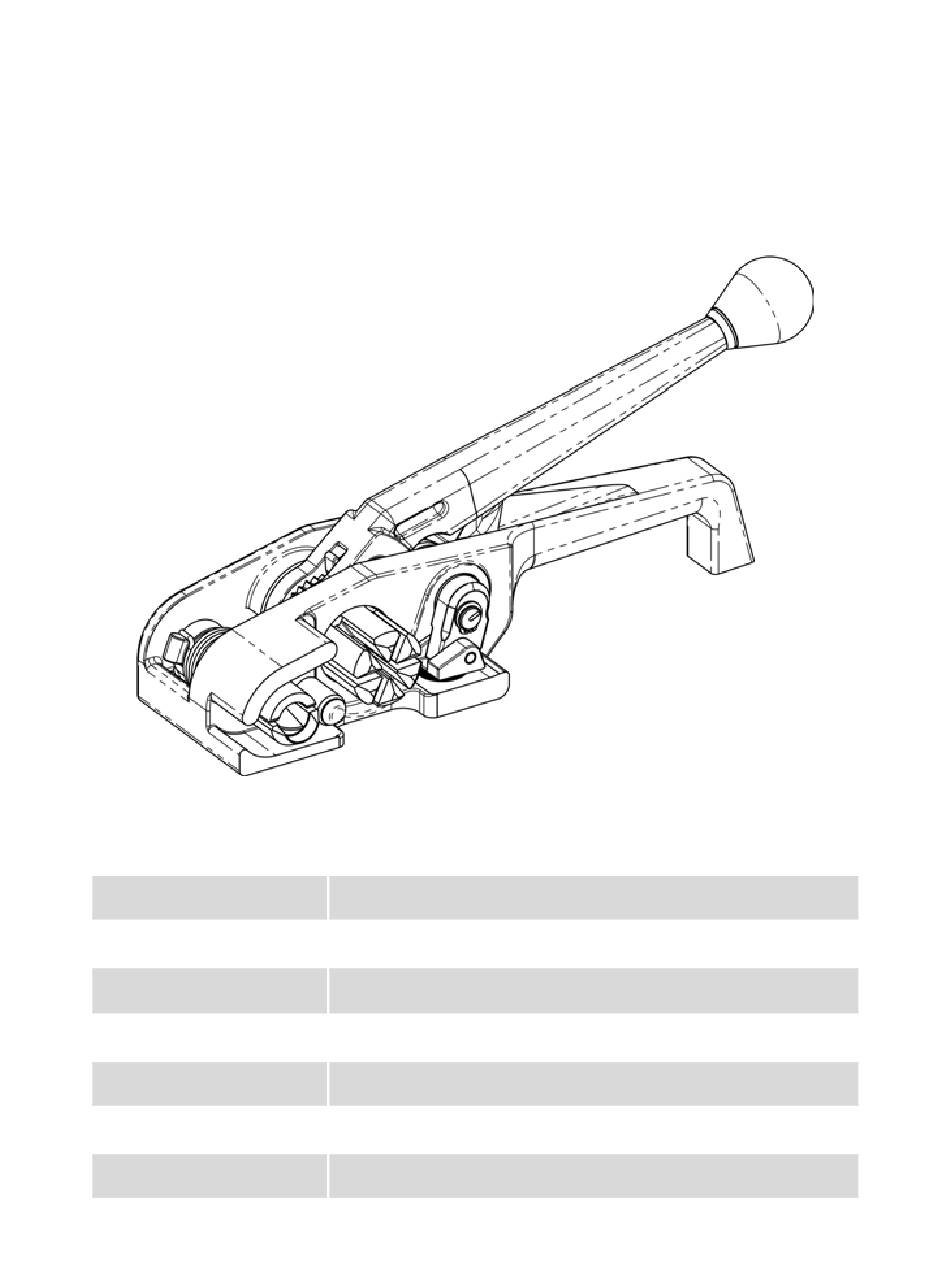

Page 1 MUL-320 Tensioner for Polyerster and Polpropylene Plastic Strap Operation Manual Strap Type Polyester (PET), Polypropylene (PP) Strap Width Up to 3/4" (19 mm) Strap Thickness Up to 0.050" (1.27 mm) Joint Type Seal, buckle Weight 3.6 lbs (1.6 kg) Footprint L: 4.75";...
Page 2 Fig. 1 – Starting Position 1. Raise Gripper Foot 38 by pressing down on Tension Handle 04. Load bottom strap 101 under Cutter Housing 23, under Gripper Foot 38 and leave at least 2” of the strap extended out from the front of the tool for seal placement as shown on Fig.
Page 3 3. Apply tension by ratcheting Tension Handle 04 as shown on Fig. 4. Fig. 4 4. Once satisfactory tension is achieved the strap is ready to be sealed. With the Seal 103 securely in place use the appropriate Sealer 104 to snap the Seal 103. Place the Jaws 105 of the sealer on the middle of the Seal 103 and press the Handles 106 till they cannot be squeezed no further.
