Lightdiction KB2D Quick Start Manual

1. INSTALL THE KB2D USER INTERFACE

Last version of KB2D User Interface can be downloaded on the following link:
The name of the program is KB2D_v2.00b102_setup.exe (version and build number may vary, you should take the last version
and last build available).
Install the program on a computer with Windows OS and launch it. If the program does not start because some files are
missing, install the following package:
https://lightdiction.com/Ressources/vc_redist.x64.exe
https://lightdiction.com/Ressources/vc_redist.x86.exe

2. PLACE THE KB2D

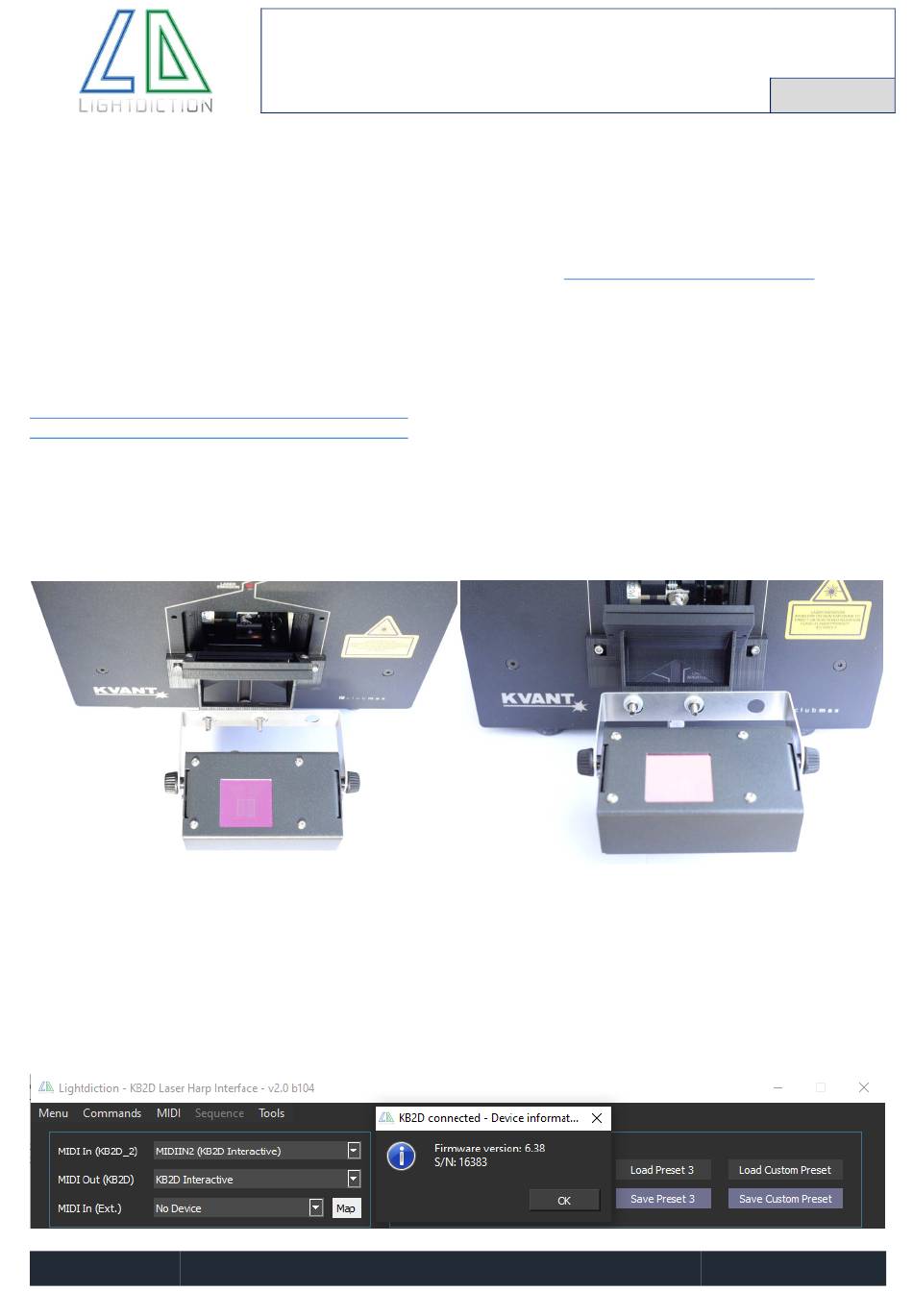

If you have a KVANT Laser projector and the mirror holder by Lightdiction, attach the KB2D and the mirror as shown on the
following picture:
Else, just place the KB2D in front of your laser projector to have a position similar to the one on the picture above. The window
of the detection system should be centered (approximatively) relatively to your laser emission point.

3. CONNECT THE KB2D TO YOUR COMPUTER

Connect the KB2D to your computer with the USB cable. It should automatically install the MIDI drivers after a few seconds.
Then, restart the KB2D User interface. It should show the following window, with the firmware version and Serial Number
indicated:
Lightdiction SAS
Lightdiction
KB2D Laser Harp – Quick Start Guide
Quick Start Guide
(64 bits operating systems)
(32 bits operating systems)
KB2D Laser Harp – Quick Start Guide
https://lightdiction.com/Ressources
April 2019 rev 1.0
05/09/2015
Page 1/2
