JLB7tech JLB853 Instruction Manual

JLB853
INSTRUCTION MANUAL
1

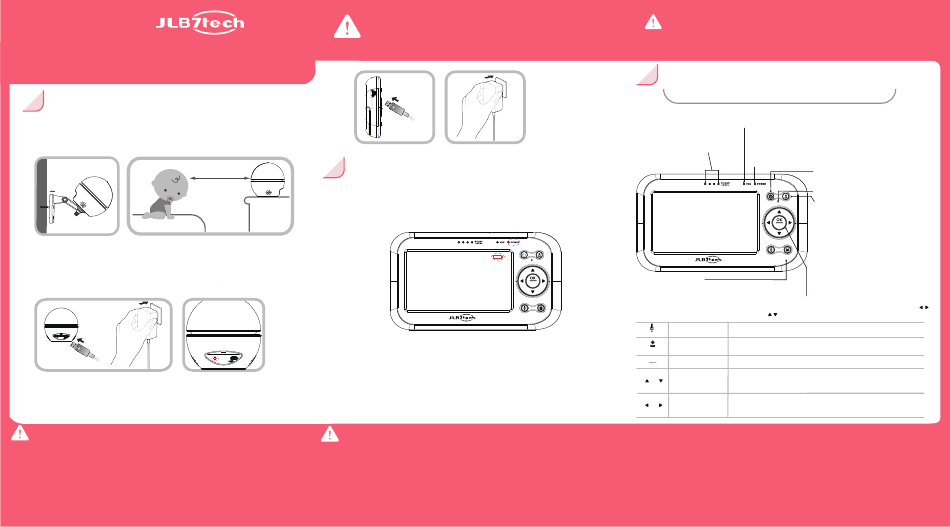

Setup and use your digital video baby monitor
Installing Baby Unit
A.
Place Baby Unit on a flat surface, such as a desk or shelf or mount the camera on a wall.
Fix the bracket with screws. Never place the baby unit or the cord
within 1 meter of the crib.
B.
Connect the small plug of the power adapter to the Baby Unit and the other end to a
suitable electrical outlet. Only use the enclosed adapter (5V DC 1000mA).
The baby unit is turned on and the power LED will be green.
C. Connecting the power supply for the Parent Unit.
Connect the small plug of the power adapter to the parent unit and the other end to
a electrical outlet. Only use the enclosed adapter (5V DC/1000mA).
Recommend charging time of at least 3 hours before first use.
WARNING
THIS PRODUCT CANNOT REPLACE RESPONSIBLE ADULT SUPERVISION
· When an AC Adapter is plugged into an electrical outlet, do not the exposed end.
· Test baby monitor before first use, periodically, and when changing location of the baby unit(Camera).
· Do not use monitor near water (Such as bathtub, Sink, etc).
· Keep parent unit away from heat sources (Such as stoves, radiators, etc).
· Make sure there is proper ventilation around baby unit and parent unit.
·This product is not a toy. Do not allow children to play with it.
· The mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily
operable.
· The baby monitor should not be considered as a medical device. While using the baby monitor, it is strongly
recommended to have an adult directly checking on your baby. Premature babies or children considered at risk must be
supervised by your pediatrician or other medical staff.
STRANGULATION HAZARD －
Keep this cord out of reach of children (more than 3 feet/1 meter away
from the crib). Never use extension cords with AC adapters. Only use the
WARNING
AC Adapters provided.
Precaution: use of battery for Parent Unit
2
1 meter
Only charge the battery when the battery life indicator is low. Constant
recharging of your battery before the low battery indicator light comes on will
decrease the life of your batteries.
When battery is low, the power on off LED (icon) will flash red and on screen
display battery icon will flash red indicating that the battery needs to be
charged.
Notice:
If you use the parent unit for the first time, when you turn on the parent unit, some boot menus
will pop-up on the screen, we try to explain status and function on these menus, please
according to the tips to switch to the monitor system interface. When you are fimaliar with
this monitor, you could switch off these on screen tips in menu.
Battery Warning
· Use only the original rechargeable battery provided.
· Do not shot-circuit supply terminals.
· Remove battery when product is stored for long periods of time or when battery is exhausted.
· Dispose of exhausted battery properly.
· Keep all batteries away from children.
· The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
· Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
· Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
WARNING
Children have STRANGLED in cords.
Adult assembly required. Keep small parts
away from children when assembling.
3
Function of keys and LED indicators
Sound Level indicator
Visual indicator for sound
picked up from baby unit.
The louder the sound is
from Baby unit, the more
LEDs are light on.
POWER VOX
SPLIT
TALK MENU
Talk
TALK
Power Saving-on/off
VOX
OK
Select
SPLIT
Up/Down
Camera Up/Down
Left/Right
Camera Left/Right
Precautions
· Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electrics
shock.
· The baby monitor works better in temperature ranging between 0℃ and 40℃(32℉ and 104℉).
· Do not dismantle the appliance. It does not contain any parts that may be used independently.
· Never expose the baby monitor for long period to sun's direct rays and never place it next to a source of heat, in a damp or
very dusty room.
· Never push objects of any kind into this product through openings they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
· Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
·The product should be mounted to a wall or ceiling inly as recommended by the manufacturer .
Warning Information
＊Keep this instruction manual for
future reference.
＊For adult use only.

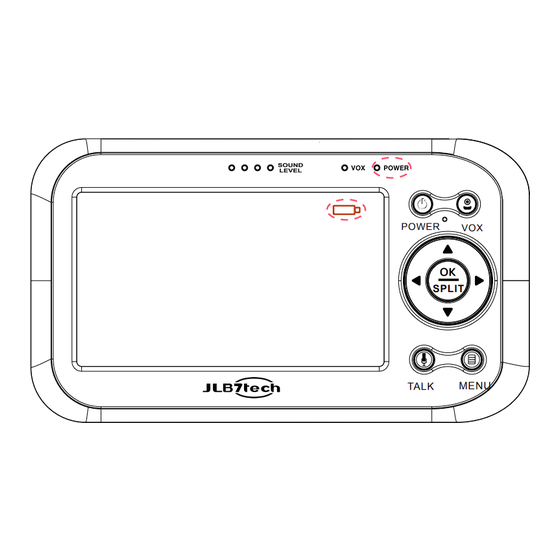

Parent Unit
Power Saving on off status
Steady Green: Power saving mode is activated.
Power on off status LED
Steady Green: Parent Unit is powered on.
Steady Orange: Charging battery.
Flash Red: Battery Low
Power
Press and hold to switch "On/Off" the
unit.
Microphone
Power Saving-on/off mode
POWER
VOX
Screen is switched off to save battery
energy. When keep audio on in power
SPLIT
saving mode, the screen will always
be off. When keep audio off in power
saving mode, when baby cry loud
enough, screen is switched on to
TALK MENU
display baby's video. Baby cry level is
adjustable from Menu setting (Sensitivity
MENU
Level L, M, H).
Press to open and exit menu options.
Split Screen View
Press and toggle between single and split screen. Use
key to move red frame between 2 cameras.
In single screen mode, press and hold to talk to baby unit.
Press to switch on/off Power Saving (When power saving mode
is enabled, screen will be turned off)
Menu mode (Press to select menu option)
Menu mode (Press to adjust menu settings)
Single screen mode(Press to control the current camera to rotate
up/down)
Menu mode (Press to adjust menu settings)
Single screen mode(Press to control the current camera to rotate
left/right)
