DoseLogix Topi- CLICK Topi-Filler Quick Start Manual

TITLE: Topi-Filler™ Filling Station
SOP #1.3
1.0

PURPOSE

1.1 The purpose of this procedure is to outline the use and maintenance of the Topi-Filler™ Filling
Station.

SCOPE

2.0
2.1 This procedure applies to all personnel who utilize the Topi-Filler™ Filling Station at the Pharmacy.
3.0

PERSONNEL

Personnel involved in filling Topi-CLICKs or other topical medication dispensers.
3.1
4.0

REFERENCE

Instruction Manual
4.1

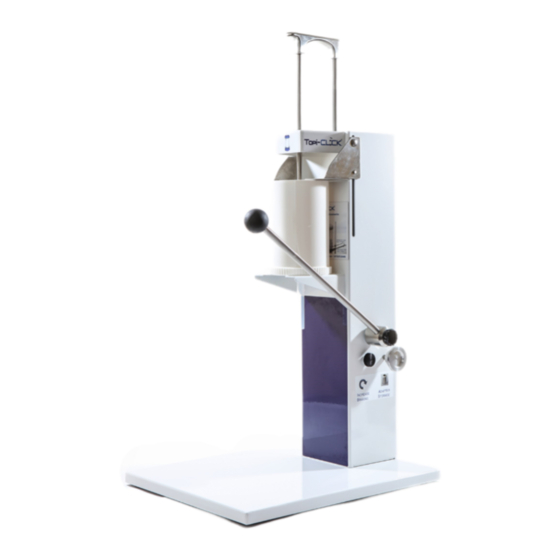

Figure 1: Topi-Filler™ Filling Station
4.2

DEFINITIONS

5.0
5.1 N/A
6.0

FREQUENCY

N/A
6.1
7.0

EQUIPMENT/MATERIALS

Topi-Filler™ Filling Station
7.1

GENERAL INFORMATION

8.0
8.1 Refer to instruction manual for troubleshooting.
9.0

PROCEDURES

9.1 Set-Up: Topi-Filler™ Filling Station (see Figure 1.)
9.2 Use-Topi-CLICK Filling Station
www.DoseLogix.com
Toll Free: 877-870-8448
9.1.1 Adjust Brake, located on the right side BELOW dispensing handle knob, to
preferred tension. Loosen tension by turning forward; tighten by turning
backward. The brake keeps the push rod from falling down when there is no jar
in the filling station. Therefore, use the least amount of braking needed to
reduce the force required for pulling the push rod assembly up when removing
a jar.
9.1.2 Attach Quick Dispensing Rod Adapter onto the end of the Dispensing Rod.
9.1.3 Adjust EMP Jar brace to fit EMP jar by twisting the Brace Locking Screw forward
then lowering/ raising the brace as needed. Re-tighten the Brace Locking
Screw by twisting backward.
9.2.1 Select topical dispenser and preparation-filled EMP jar.
SOP #1.3 Topi-Filler™ Filling Station
Copyright © 2019 DoseLogix, LLC All Rights Reserved.
US Patent # 9,097,571
MK-1001 TFFS SOP
Rev 1.22.2019
pg. 1
