FANGOR F-157 User Manual

Portable monitor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

PORTABLE MONITOR

User Manual

Model: F-157

Table of Contents

Summary of Contents for FANGOR F-157

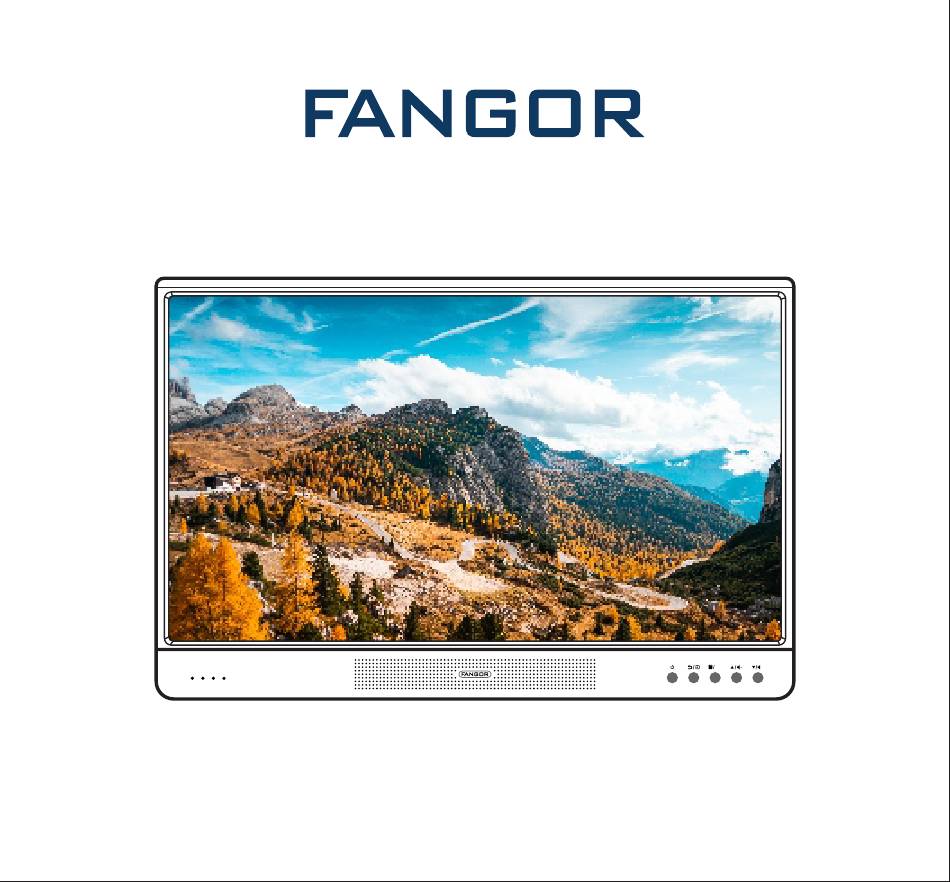

Page 1 PORTABLE MONITOR User Manual Model: F-157...
Page 2 User Manual........English 1-31 取扱説明書........日本語 32-52...
Page 3: Table Of Contents
Table of contents Safety Information ......................04 Care & Cleaning ........................ 04 Welcome to FANGOR ....................... 05 Package Contents ......................06 Adjust the Monitor Stand ....................07 AC Adapter Installation Instruction..................07 Install Power Adapter or Power Bank ................08 Monitor Introduction ......................
Page 4 ACTIVATE YOUR 12 MONTH WARRANTY & GET EXCLUSIVE GIFT REGISTER WITHIN 7 DAYS AFTER RECEIVING YOUR NEW PRODUCT. PLEASE VISIT NOW www.fangor-store.com/warranty CUSTOMER SERVICE us-pc@fangor.cn ！ NOTE: 1. Please charge the portable monitor fully before use at the rst time.
Page 5 A Big Thank You We're thrilled that you have chosen to purchase the Portable Monitor. At FANGOR, we're committed to providing you with products that enhance your daily life. We also aim to give our customers excellent support. Should you have any questions...
Page 6: Safety Information
Place this portable monitor on a stable surface. • Never push objects or spill liquid of any kind into the slots on this portable monitor cabinet. • If you encounter technical problems with this portable monitor, contact a qualied service technician or FANGOR After-sales Service.
Page 7: Welcome To Fangor

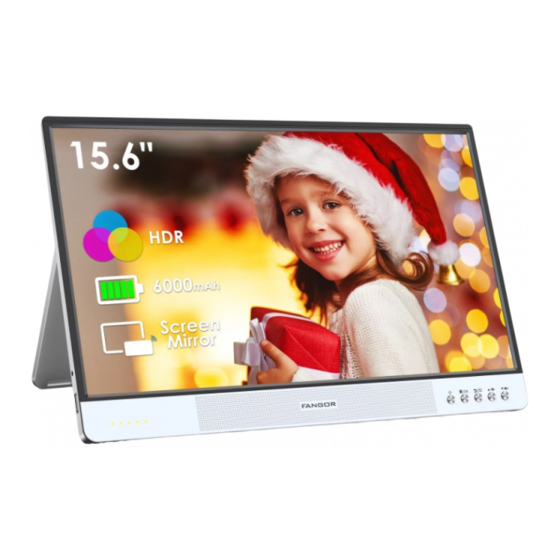

1. 15.6 inch large-screen display with 1920*1080P HD screen. 2. FANGOR portable monitor has the characteristics of plug and play, no need to install any software or set the input password. You only need to connect the power supply and the Type-C / HDMI data transmission cable to use it.
Page 8: Package Contents
Package Contents PORTABLE MONITOR User Manual Model: F-157 1. Portable monitor 3. Type C to USB cable 5. Type C to Type C cable 7. User Manual 2. AC Adapter(3 IN 1) 4. HDMI Cable 6. Screen Wiper Note：If any of the above items is damaged or missing, contact your retailer immediately.
Page 9: Adjust The Monitor Stand
3: Turn the charging head to the right with a little bit of force to lock. 1. Aim the hole of the charging 2. Turn the charging head to right 3. Correct installation diagram head at the charging base pin with a little bit of force to lock us-pc@fangor.cn...
Page 10: Install Power Adapter Or Power Bank
Follow below picture to connect power bank. Using Type-C to USB cable. Connect Type-C port to the monitor (Type-C dedicated charging port), plug USB port to power bank. Make sure the power bank is full and keep the output status. us-pc@fangor.cn...
Page 11: Monitor Introduction
USB connection for keyboard mouse, or U disk ect Attention: Please select the right annunciator or port for your devices, and connect in the right way. You may restart the phone or computer when it is out of order. us-pc@fangor.cn...
Page 12: Key Function
Press to enter the setting menu in the main interface. Indicates ‘OK’ in the setting interface. Menu/OK ⑤ Volume-/Up Indicates ‘Volume-’ in the main interface. Indicates ‘Up’ in the setting menu interface. ⑥ Volume+/Down Indicates ‘Volume+’ in the main interface. Indicates ‘Down’ in the setting menu interface. us-pc@fangor.cn...
Page 13: System Setup
The adjusting range is from 0 to 100. CONTRAST Select STANDARD, TEXT, GAME, MOVIE, FPS, RTS. The adjusting range is from 0 to 4. SHARPNESS The adjusting range is from 0 to 100. The adjusting range is from 0 to 100. SATURATION us-pc@fangor.cn...
Page 14 SIGNAL SOURCE Select Auto， HDMI, Type-C, MiraScreen. SIGNAL SOURCE The adjusting range is from 0 to 4. LOW BLUE LIGHT The adjusting range is from 0 to 100. VOLUME Select ON, OFF. MUTE INFORMATION Display resolution and version number. INFORMATION us-pc@fangor.cn...
Page 15: Connect To Mobile Phone
Note: Mobile phones that cannot be directly connected using Type-C to Type-C cables need to be connected using the HDMI VGA cable(for Android)/AV HDMI cable( for iOS), the specic connection method needs to be operated according to the instructions. us-pc@fangor.cn...
Page 16 You need to plug in the power supply and keep it powered on before connecting the Type-C to Type-C cable to the monitor. If the sequence is wrong, it will cause no input on the portable monitor. At this time, you need to unplug the data transmission cable, plug it in again and check whether plugged in properly and tight. us-pc@fangor.cn...
Page 17 Make sure the phone has enough power. b. Connect the adapter(Power Bank) rst and keep it charged. c. Find the USB1 transmission interface, use a Lighting cable to connect the iphone/ipad with the portable monitor, and the image will be copied and displayed immediately. us-pc@fangor.cn...
Page 18: Connect To Laptop
Pavilion X2/EliteBook/Folio/G1/ Keeping Update…… More models Shadow Elves 4 2. How to connect Cable selection: Option 1 AC Adapter, HDMI to HDMI cable Option 2 Power Bank, Type-C to USB cable, HDMI to HDMI cable Laptop HDMICable AC Adapter us-pc@fangor.cn...
Page 19 "P" button at the same time, 4 mode selection boxes will pop up on the notebook. Include Copy mode, Split screen mode, Computer mode only, Second screen mode only. Choose the appropriate working mode according to your needs. us-pc@fangor.cn...
Page 20: Connecting The 3.5Mm Jack
When you have a large event such as a party / picnic, you need to adjust the atmosphere, and need a super loud volume, you only need to plug in audio speakers to 3.5mm jack and enjoy the happy hour. us-pc@fangor.cn...
Page 21: Connect To Switch/Xbox One/Ps5
Connect to Switch/Xbox one/PS5 NINTENDO SWITCH FANGOR portable display brings you a large-screen 1920 * 1080p high-denition game experience. It supports connection to Switch, Xbox one, and PS5 game consoles via HDMI cable. Steps to connect： 1. First connect the game console and keep it powered on.
Page 22: Connect To Tv Stick， Blu-Ray Player And Other Pc Models
Connect to TV Stick， Blu-ray player and other PC models（HDMI connection） FANGOR portable monitor supports to connect and use TV stick, watch videos on YouTube and other websites. For detailed usage, you can check the instruction manual of TV stick.
Page 23: Wireless Connection To Smartphone/Pad
Android EZMira MIRAPLUG APK PJ-BT Wi-Fi Setting: 1:Mobile phone connection SSID Help/Download:mirascreen.com 2:Scan QR code or Log in http://192.168.203.1 Step3: Enter the URL:http://192.168.203.1 on the browser(or scan the QR code) Step4: Connect your Home WiFi on the browser page. us-pc@fangor.cn...
Page 24 Mirroring Stop Mirroring Tips: When you connect for the second time, Please make sure the phone is connected to the SSID；Switch the monitor to the "Mirascreen" page, and click the “screen mirroring” on your phone, the connection is successful. us-pc@fangor.cn...
Page 25 Step3: Choose "Cellular Data" and turn on it. 12:20 Celluar Setting Cellular Data Data Roaming Personal Hotspot Oﬀ Turn oﬀ cellular data to restrict all data to WLAN, including email, web browing, and push notiﬁcations. us-pc@fangor.cn...
Page 26 A) With WiFi environment. B) Without WiFi environment. A: Android device with WiFi Environment. Step1: Turn on the portable monitor and press the "source" button. Click to enter the “Mirascreen” on the portable monitor. (Loading time 5-10 seconds) Auto Type-C Mirascreen HDMI us-pc@fangor.cn...
Page 27 2:Scan QR code or Log in http://192.168.203.1 Step3: Enter the URL:http://192.168.203.1 on the browser(or scan the QR code) Step4: Connect your home WiFi on the browser page. 12:20 Websetting Internet St123456 iOS Docking Mirror+Streaming Device Name Dualcast-2677E9A9 WIFI Password 30661287 Display game Resolution 1920x1080-60P us-pc@fangor.cn...
Page 28 "Screen Mirroring" on your phone, the connection is successful. (No need to perform the Step 1-4) B: Android device Without WiFi environment.(Use the phone’s network data) Step1: Turn on the portable monitor and Click the "source" button to enter the "Mirascreen" on the portable monitor. (Loading time 5-10 seconds) Auto Type-C Mirascreen HDMI us-pc@fangor.cn...
Page 29 Step4:Open the Multi-screen/Miracast on your Android device , choose the correct SSID name. Then the connection is succeeded. Wireless projection Wireless projection Wireless projection Wireless projection Available devices Available devices Searching for devices... Dualcast-2677E9A9 Make sure that projection is enabled on the external Dualcast-2677E9A9 Connected display Connecting to Dualcast-2677E9A9... HELPCANCEL HELPCANCEL HELPCANCEL HELPCANCEL us-pc@fangor.cn...
Page 30 Step3: Click "Trust" and input your screen lock password. If no password, ignore it. Trust This Computer? Your settings and data will be accessible from this computer when connected wirelessly or using a cable. Trust Don’t Trust Step4: Then the connection is succeeded. us-pc@fangor.cn...
Page 31 ............③Click ,Connect Bluetooth according ............to the prompt tone CANCEL VIEW (Bluetooth name：PJ-BT); ④Back to UI interface. Please plug in the MiraPlug device Then the connection is succeeded. 055F96D4 is connected 055F96D4 is connected us-pc@fangor.cn...
Page 32: SpeciCations
Press the button to check if the monitor is in the ON mode. Check if the Type-C cable is properly connected to the monitor and the power outlet. (FANGOR monitor is equipped with Type-C charging dedicated interface) 2. Screen image is too light or dark Adjust the Brightness settings via the button.
Page 33: Customer Support
If "No cable" appears on the display during use, it may be that the power supply or data transmission interface is loose. You need to check whether the port is loose and plugged in, which can restore normal use. If still not available, please contact us via us-pc@fangor.cn 5. During use, the monitor shows "no signal"...
