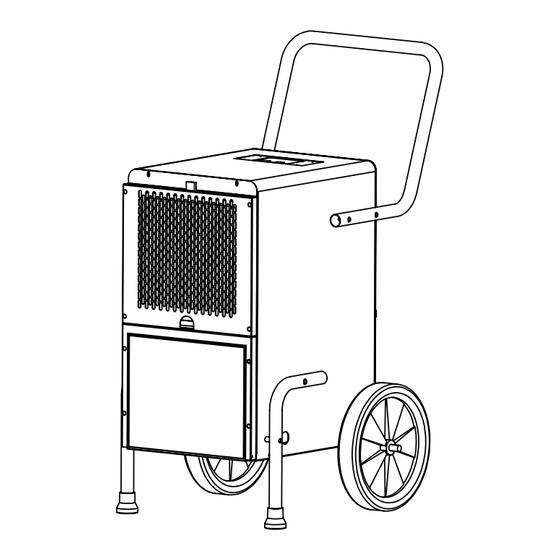

Seedmax ECO Series Owner's Manual

Commercial dehumidifier
Hide thumbs Also See for ECO Series:
Table of Contents

Advertisement

Quick Links

READ THIS MANUAL CAREFULLY BEFORE OPERATING
OWNER'S MANUAL
Commercial
Dehumidifier
ECO Series
Specially Designed for Growing Industry
Maximum Capacity at over 210 Pints Per Day
Product Category : H50, H60, H70, H70B, H90 &H100
IMPORTANT: After unpacking (or accidental tip-over) allow
dehumidifier to stand upright for 20 minutes before starting

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO Series and is the answer not in the manual?

Questions and answers

Joe Adcock
January 22, 2025

I need to replace the drainage outlet on my H100. Can you supply the part or tell me somewhere That I can obtain on.

0

Related Manuals for Seedmax ECO Series

Summary of Contents for Seedmax ECO Series

  • Page 1 READ THIS MANUAL CAREFULLY BEFORE OPERATING OWNER’S MANUAL Commercial Dehumidifier ECO Series Specially Designed for Growing Industry Maximum Capacity at over 210 Pints Per Day Product Category : H50, H60, H70, H70B, H90 &H100 IMPORTANT: After unpacking (or accidental tip-over) allow...

  • Page 3: Important Instructions

    Important Instructions DO NOT use this unit outdoor! Before installing and using your dehumidifier, please read this owner’s manual carefully. Store this manual in a safe place for future reference. The user of electrical products may create hazards that include, but are not limited to injury, fire, electrical shock.
  • Page 4 Owing to an external condensate drain and optionally available condensate pump, ECO series product is further ideally suited for longer unattended dry keeping applications, the duration of which can be determined precisely by means of the integrated operating hours counter –...
  • Page 5 Items Included （ECO-H60） Drain hose x1 User’s Manual x1 *ECO-H Dehumidifier x1 Items Included （ECO-H70B） Drain hose x1 User’s Manual x1 *ECO-H Dehumidifier x1 *ECO-H90 & H100 have water-pump pre-installed.
  • Page 6 Items Included （ECO-H70, ECO-H90） Drain hose x1 User’s Manual x1 *ECO-H Dehumidifier x1 Items Included （ECO-H100） Drain hose x1 User’s Manual x1 *ECO-H Dehumidifier x1 *ECO-H90 & H100 has water-pump pre-installed.
  • Page 7 Product Description (ECO-H50) FRONT Control Handle Panel VIEW Filter Air-intake Water-tank (Grille) (9.5Pints) Front Door Wheel(s) Drainage Outlet Front Feet REAR Control Panel VIEW Grille (filter) Outlet Power cord Front Door holder (Water-tank) Front foot Pedal...
  • Page 8 Product Description (ECO-H60) Control FRONT Handle Panel VIEW Filter Air-intake (Grille) Water-tank (15.2 Pints) Front Door Front Feet Wheel(s) REAR Control VIEW Panel Air Outlet Cable Direct Drainage Holder Plug Holder (NO ELECTRICITY SUPPLY) Pedal...
  • Page 9 Product Description (ECO-H70B) FRONT Control VIEW Handle Panel Filter Air-intake (Grille) Side Water-tank Handle(s) (9.5 Pints) Front Door Wheel(s) Drainage Outlet REAR VIEW Cable Holder Side Air Outlet Side Handle(s) Pedal Front Feet...
  • Page 10 Product Description (ECO-H70, ECO-H90) FRONT Control VIEW Panel Filter Handle Air-intake (Grille) H70 – Water tank (22.2 Pints) Front Door Drainage Outlet Front Feet Wheel(s) H90 – Water-pump REAR VIEW Plug Holder (NO Electricity) Power Pump Inside Cord Holder Pedal...
  • Page 11 Product Description (ECO-H100) Control Panel Handle Air-intake FRONT VIEW Filter Roto-mold Housing Wheel(s) VIEW Pump Inside Control Panel Cable Holder REAR VIEW Air Outlet Roto-mold Housing VIEW Drainage Outlet Pump Inside...

  • Page 12: Product Description

    Product Description Control Panel H50, H60, H70 & H70B 3-button • Panel – for ECO Model: Defrost Dehumidify Tank Full (Indicator) (Indicator) (Indicator) (Indicator) Total Running Time (Indicator) ON/OFF (Button) Humidity Humidity Humidity % Down (Indicator) (Button) (Button) Buttons Information Unit makes a “BEEP”...
  • Page 13 Installation and Operation Guide Control Panel H90 & H100 (pump control) 4-button • Panel – for ECO Model: Defrost Dehumidify Tank Full (Indicator) (Indicator) (Indicator) (Indicator) Total Running Time (Indicator) ON/OFF (Button) Humidity % Humidity Control Pump Control (Indicator) (Button) (Button) Buttons Power...

  • Page 14: Installation

    Installation and Operation Guide Installation Environment Temperature and Humidity: the Before operating the unit, place the unit dehumidifier is designed to work in an UPRIGHT for at least 1hour to allow environment with a temperature of 41ºF - 95 refrigerant to stabilize. If the unit was titled ºF (5 ºC - 35 ºC) and relative humidity level of on its side or upside-down during 10% and higher.

  • Page 15: Operation

    Installation and Operation Guide Operation PLEASE READ ALL INSTRUCTIONS CAREFULLY Do not handle the plug BEFORE OPERATING THE PRODUCT with wet hands. Electric shock may • Power – plug the power into a standard 115V power supply outlet. occur, resulting in •...
  • Page 16 Installation and Operation Guide Operation – Drainage Drainage instruction - (tank drainage, continuous drainage & *water-pump drainage *water-pump is PREINSTALLED on ECO-H90 & ECO-H100 and is optional available of interchange with tank for other models A. Water-tank connection (for ECO model: H50, H60, H70 & H70B) Drain hose (into water-tank) Normally the condensate water on evaporator will be collected on the dip tray and then runs into water tank through drain...

  • Page 17: Maintenance

    Installation and Operation Guide Maintenance Clean the surface • Use a damp cloth to wipe the surface of the housing. DO NOT clean the unit with water directly. • DO NOT clean the fins of the evaporator and condenser by yourself. Store the machine •...
  • Page 18 Installation and Operation Guide Error Codes For ECO H-series codes: SOLUTION CODE CAUSE Humidity Sensor Failure Change humidity sensor Water-tank is Full Empty the water inside the tank Call service for changing defrost Defrost Sensor Failure sensor...

  • Page 19: Troubleshooting

    Installation and Operation Guide Troubleshooting PROBLEM POSSIBLE CAUSE(S) SOLUTION No electricity. Check power supply. Dehumidifier does not turn on The power cord is not Reconnect the power cord. properly plugged in. The system is still wait for 3 minutes (180 seconds) until the starting up compressor starts running (protection).

  • Page 20: Technical Specifications

    Technical Specifications H50, HT60 & H70B H70B MODEL 115V/60Hz Power Supply Current (A) Operation Condition 41°F - 95°F (Temperature and Relative 30% - 90%RH Humidity) R410a Refrigerant 14.1 20.5 11.3 Charge Vol. (Oz) Air-flow Volume (CFM) Capacity (90°F, 90%RH)/ 24hrs 102 Pints 125 Pints 138 Pints...
  • Page 21 Technical Specifications H70, HT90 & H100 (Roto-mold Housing) *H100 MODEL 115V/60Hz Power Supply Current (A) Operation Condition 41°F - 95°F (Temperature and Relative 30% - 90%RH Humidity) R410a Refrigerant 20.5 24.3 26.5 Charge Vol. (Oz) Air-flow Volume (CFM) Capacity (90°F, 90%RH)/ 24hrs 138 Pints 165 Pints 210 Pints...

  • Page 22: Limited Warranty

    Evaporator/Condenser Limited Warranty SeedMax ™ warrants the accompanying Dehumidifier to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) years for components and TWO (2) years for the compressor AND evaporator/condenser from the date of original retail purchase in the United States.
  • Page 23 NOTE...
  • Page 24 NOTE...
  • Page 25 NOTE...
  • Page 26 NOTE...
  • Page 28 Notice: All design and specifications herein are subject to change without notice for product improvement. Contact SeedMax for further details, updates and other information. Thank you for purchasing SeedMax ECO series dehumidifier...
