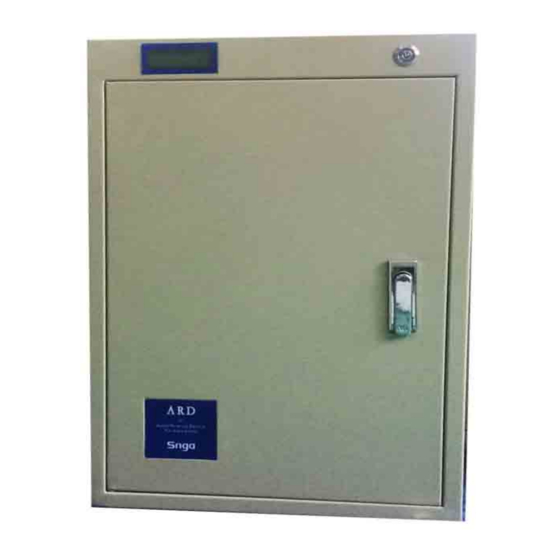

Summary of Contents for ARD Snga
- Page 1 Auto Rescue Device For Lift Operation Manual...
- Page 2 If the lift is staying at the floor level, ARD simply open the cabinet door. If the lift is blocked between two floors, ARD turns the motor in the direction that requires the least expenditure of current to bring the cabinet to the nearest floor level or bottom floor level with commanded, and then open the door.
- Page 3 ● Thank you for using our product. For the sake of maintaining the normal operation of this ARD device, please read the user manual completely before installation. ● Please carefully check the model and parameters on the nameplate of this product with relevant parts of elevator.
- Page 4 Time delay start time can be set as shown in figure by the time delay dial switch SW1. 1, 2 to set the ARD start time after power outage. 3, 4 is to set the ARD rescue to complete the signal down time.
- Page 5 WIRING CONNECTIONS external switch (open door switch N/C) When set S1 in close circuit and lift arrives at the floor level, ARD will shutdown the Elevator after 15 seconds; and restart the elevator automatically when AC mains come back. COM,NO&NC user can install accessories like alarm or others to our ARD unit.
- Page 6 Explanation of LCD Display LCD Display Description Remarks WELCOME System starts ARD SERVICE MAIN ON AC mains supply is on BATTERY CHARGE Battery charging on MAIN OFF AC mains stop INVERTER MODE System enters into inverter mode WARNING ! The alert for battery low...
- Page 7 Installation example NICE3000+Serial integrated machine system AS380 Integrated machine system - 6 -...
- Page 8 BL2000 split system - 7 -...
