Ohlendorf SF T30V Instruction Manual

Instruction manual

The manual contains information and instructions that are necessary for safe

operation and maintenance of the instrument. Before using the device, the operating

instructions must be read carefully and follow all instructions. If you don´t follow the

instruction manual, or if you fail to comply with the warnings and instructions, you

may occur serious or fatal injuries or damage to the device.

Functionality

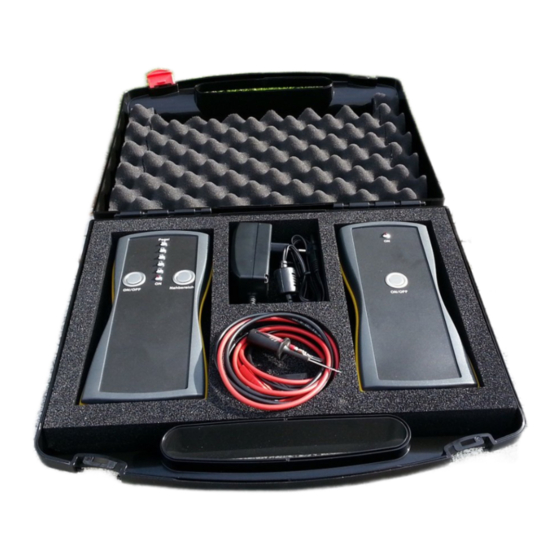

The equipment set consists of a transmitter OE - SF T30V with cable set and a

receiver OE - SF R30V. The transmitter supplies a modulated alternating voltage in

the affected line. This AC voltage generates an electric field in the line. If the

receiver is brought into proximity of the affected line with its search coil, the

modulated AC voltage is evaluated and displayed.

• Locating cables in the wall, line interruptions

• Line tracing in the ground, open circuit of wire loops for

Robot - Lawnmowers

When working on electrical system, the respective accident prevention regulations of

the professional trade association for electrical equipment and utilities must be

followed. To avoid electrical shock, the valid safety and VDE regulations must be

strictly observed relative to excessive contact voltage when working with voltages

Table of Contents

Do you have a question about the SF T30V and is the answer not in the manual?

Page 1 Functionality The equipment set consists of a transmitter OE - SF T30V with cable set and a receiver OE - SF R30V. The transmitter supplies a modulated alternating voltage in the affected line.
Page 2 The device may only be used under the conditions and for the purposes for which it was designed. The operational safety is no longer guaranteed for modified or adapted devices. Connect the transmitter OE - SF T30V (single pole application) Connect the transmitter to only one conductor. The signal generated by the transmitter is a high-frequency signal, even a single conductor can be searched or tracked.
Page 3 Connect the red cord to the red socker of the transmitter and the black cord to the black socket of the transmitter. Disconnect all lines from the lawnmover station. Connect the red cable to one of the wires of the affected line. The black cable has an attached spike, stick this spike into the ground.
Page 4 For example, we are looking for the interruption of a line in the earth. The mode is the single-ended application. After the transmitter was taken as described above in operation, switch the receiver with a short press on the power button. To check if the power is on the lowest red led (it is the left Led in the picture) lights.

Sf r30v
