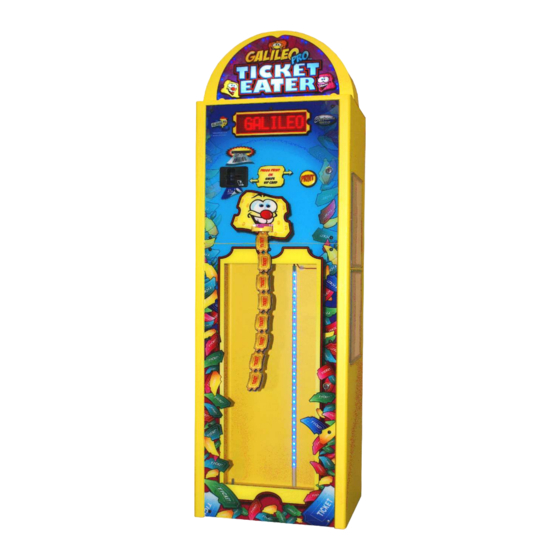

Summary of Contents for ELMAC Galileo Pro Ticket Eater

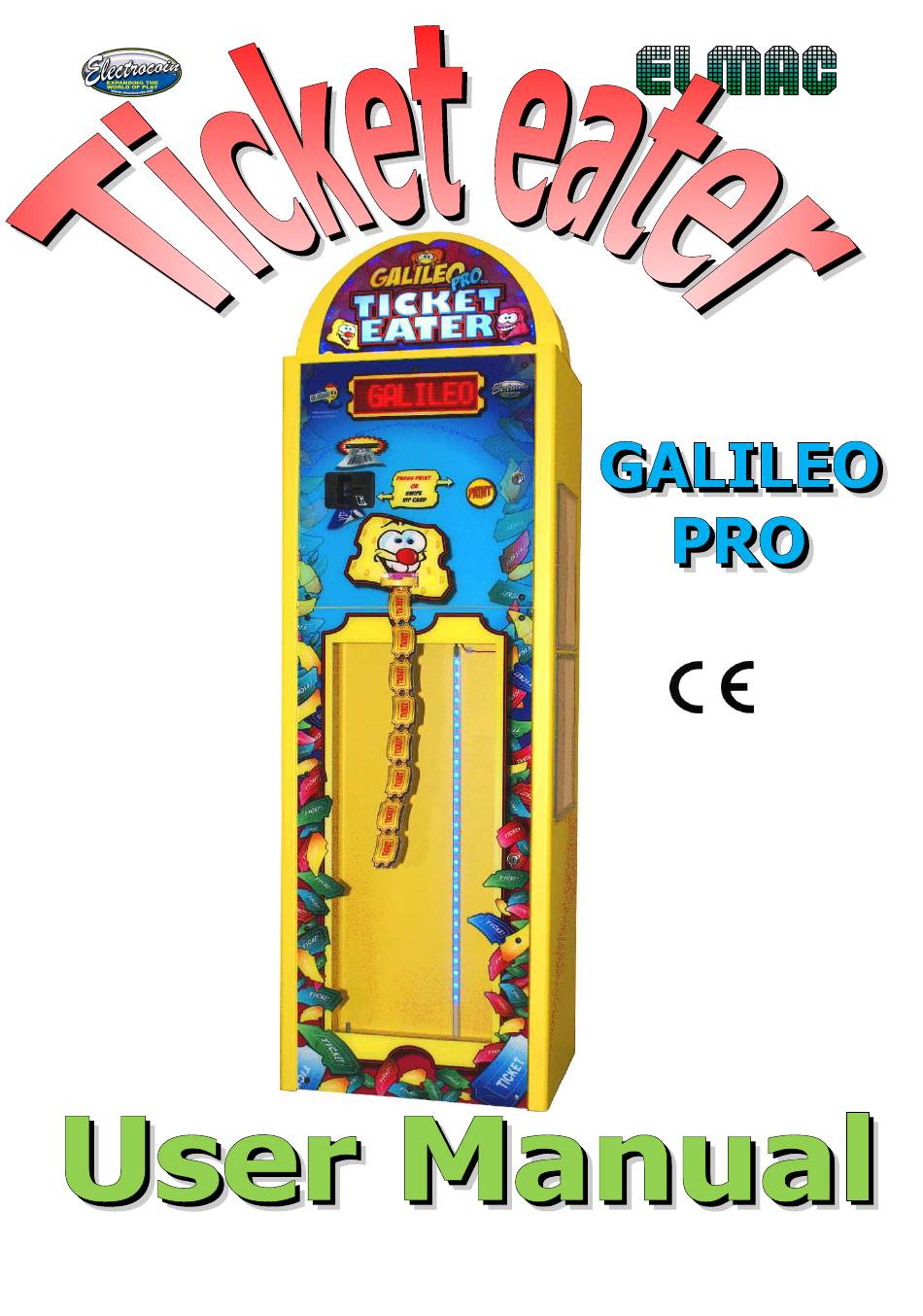

- Page 1 Firmware V.1.000 – 1.006 PATENTED N.PD2007A000098 May 19 2007...
-
Page 2: Table Of Contents
SUMMARY: DESCRIPTION ..................3 TECHNICAL CHARACTERISTICS ......................3 DIMENSIONS AND WEIGHT ......................3 INSTALLATION..................4 POSITIONING AND PRECAUTIONS....................4 CONFIGURATION ................. 4 REMOTE CONFIGURATION THROUGH PC ..................4 MANUAL CONFIGURATION…………………………………………………………………………………………………………5 MENU STRUCTURE ...........................6 LANGUAGE ............................6 CLOCK SET............................7 STARTING AND EXPIRING DATE......................7 OPERATION NAME ...........................7 MACHINE CODE..........................7 LENGTH SETUP ..........................8 PC CONNECTION..........................8... -
Page 3: Description
HOW TO PROGRAM A PERSONALIZED LOGO .................15 REPLACING THE SACK ........................15 REPLACING THE PAPER FOR THE PRINTER..................15 ELIMINATION PAPER BLOCKAGES ....................16 CLEANING THE DRAGGING AND CUTTING UNIT................16 PROBLEMS AND SOLUTIONS ......................18 WIRING DIAGRAM……………………………………………………………………………………………………………………20 MIAN PCB CONNECTORS........................21 DECLARATION OF CONFORMITY ........22 WEEE MARK............................23 Description The Mangia Tickets mod. -
Page 4: Installation
INSTALLATION POSITIONING AND PRECAUTIONS The machine is to be used in indoor places and should be placed on a flat surface and far away from sources of excessive heat and/or humidity, ensuring sure that the connection to the “earth” is efficient. Any possible maintenance, except from the changing of the sack, should be carried out by qualified and trained engineers and adhere to health and safety procedures. -
Page 5: Manual Configuration
MANUAL CONFIGURATION For the programming buttons and service display on the motherboard are used (Fig. 1). Opening the door, the machine turns off and the inner service lights turn on. To turn the machine ON, with the door open, and proceed with the programming, you need to pull the upper security switch out. -
Page 6: Menu Structure
MENU STRUCTURE In red the menu’s voices that refers to the parameter to program. PROGRAMMING LANGUAGE CLOCK SET The yellow items for printing of historical data and receipt of evidence STARTING DATE EXPIRING DATE PRINT OPERATION NAME BOOKKEEPING PRINT MACHINE CODE RECEIPT PRINT LENGHT SETUP PC CONNECTION... -
Page 7: Clock Set
CLOCK SET The clock set is not necessary if the Ticket Eater is connected to the PC, because every WinMt program start, the internal clock is automatically synchronized. For this happen it’s necessary that the Ticket Eater is turned ON before the WinMt start on the PC. -
Page 8: Length Setup
LENGTH SETUP To avoid counting errors in case of fraud attempts by the users (tickets stopped during the counting, tickets pulled back…), the system measures the tickets length and accept them as goods only if equal to the sample one. The sample length has to be saved during the machine installation as the following procedure: •... -
Page 9: Information Receipt
INFORMATION RECEIPT This option allows you to enable (ON) or disable (OFF) the “ONLY MEMORANDUM” receipt printing for the customers provided of magnetic card. With the UP and DOWN buttons you move the asterisk MEMORANDUM REC. (*) and then press ENTER. *OFF BARCODE PROGRAMMING To enable the identification of ticket with... -
Page 10: Barcode Enable
BARCODE ENABLE This option allows you to enable (ON) or disable (OFF) BARCODE ENABLE the barcode identification on the tickets inserted. With *OFF the UP e DOWN buttons you move the asterisk (*) and press ENTER. Setting this option ON the machine will accept only tickets with barcode equal to the saved one. -
Page 11: Attraction Sound
ATTRACTION SOUND This option sets the number of minutes that pass ATTRACTION SOUND between an attraction sound and another one. With the UP and DOWN buttons, select the desired range and press ENTER. The attraction sound can be disabled or repeat with ranges from 1 to 30 minutes. -
Page 12: Points Multiplier
(*) and press ENTER. If the printer is disabled the machine will work in “CARD SWIPE” mode, used only in case of connection with Management Systems of Prize Operations different from ELMAC WinMt for which the machine was designed. -
Page 13: Printing The Receipt
PRINTING THE RECEIPT Pressing ENTER a test receipt will be printed in order to verify the proper working of the printer, the correctness of the data RECEIPT PRINT concerning the Prize Operation: operation name and validity and clock synchronization. CANCELLATION HISTORY This option allows you to delete the counting history. -
Page 14: Functioning
FUNCTIONING TICKETS COUNTING Insert the tickets in the special “mouth”, the motor will turn ON and the tickets will be drawn in by the mechanism, passing under the photo-cellules, they will be counted and, at the end, will be cut by the helical blade. -
Page 15: Maintenance
MAINTENANCE HOW TO PROGRAM A PERSONALIZED LOGO The logo that will be printed on each receipt is saved in the printer in a no- volatile memory. To change it you need to have the LOGOMAKE program from Custom Engineering this is available for download from their website: www.custom.it. -
Page 16: Elimination Paper Blockages
ELIMINATION PAPER BLOCKAGES Under normal conditions and with the new roll, the green and yellow LEDS of the printer have to be lighted on and stable. The red led, if lighted on, indicates that it is nearing the end of paper (printing may continue unless there is not enough paper). - Page 17 Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6...
-
Page 18: Problems And Solutions
Figure 7 PROBLEMS AND SOLUTIONS The machine indicates on both the displays any malfunction with the following messages: ERROR CODE MEANING SENSOR ERROR Error sensor assembly: • Clean the drag unit. • Verify that the connection wire runs from the motherboard CN1 connector. - Page 19 CARD ERROR Error card reader: • Verify there is nothing inside the reader • Verify the connection with the motherboard (CN5) • Verify the connection to power supply of the card reader (CN9) • Verify that the reader installed coincides with those programmed (see CARD READER TYPE pag.10) If the error persists, call Electrocoin Aftersales...
-
Page 20: Wiring Diagram
SCHEMI SCHEMA DI CABLAGGIO... -
Page 21: Mian Pcb Connectors
MIAN PCB CONNECTORS CN13 Power supply CN9 Feeding - Buttons CN3 Display 230 Vac Lamp Clock Ground Data 230 Vac N.C. +5 Vcc N.C. N.C. N.O. Button – IN Strobe Card Swipe Mode N.C. +5Vcc +5 Vcc OUT Card Swipe +12Vcc Mode +5 Vcc... -
Page 22: Declaration Of Conformity
Domicilio Fiscale: Vi a G. Colombo, 17 – 35030 Rubano (Padova) ITALY Sede Operativa: Via Piccà Grolli, 2/Quater – 35030 R ubano (Padova) ITALY Tel. 049.89.76.176 r.a.- Fax 049.89.76.179 – www.elmac.com – elmac@elmac.com Codice Fiscale TRD TZN 46B17 H625H – Partita IVA / VAT No. IT01354370288 Al b o Imp. -
Page 23: Weee Mark
WEEE MARK If you want to dispose this product, do not mix with general household waste. There is a separate collection systems for used electronics products in accordance with legislation under the WEEE Directive (Directive 2002/96/EC) and is effective only within European Union. REPLACEMENT PARTS LIST PART NO: DESCRIPTION... - Page 24 Tel: +44 (0)29 2045 0345 Fax: +44 (0)29 2045 0385 Fax: +44 (0)29 2044 8322 Afterhours: +44 (0)7836 536195 Email:aftersales@electrocoin.net www.electrocoinaftersales.co.uk ELMAC S. r.l. Unipersonale Sede: Via Piccà Grolli, 2/Q – 35030 Rubano (Padova) ITALY Tel. 049.89.76.176 r.a.- Fax 049.89.76.179 www.elmac.com – elmac@elmac.com...
