Antonie & Emma Faber Manual

Climbing frame
Hide thumbs

Advertisement

Quick Links

Download this manual
What is climbing frame Faber

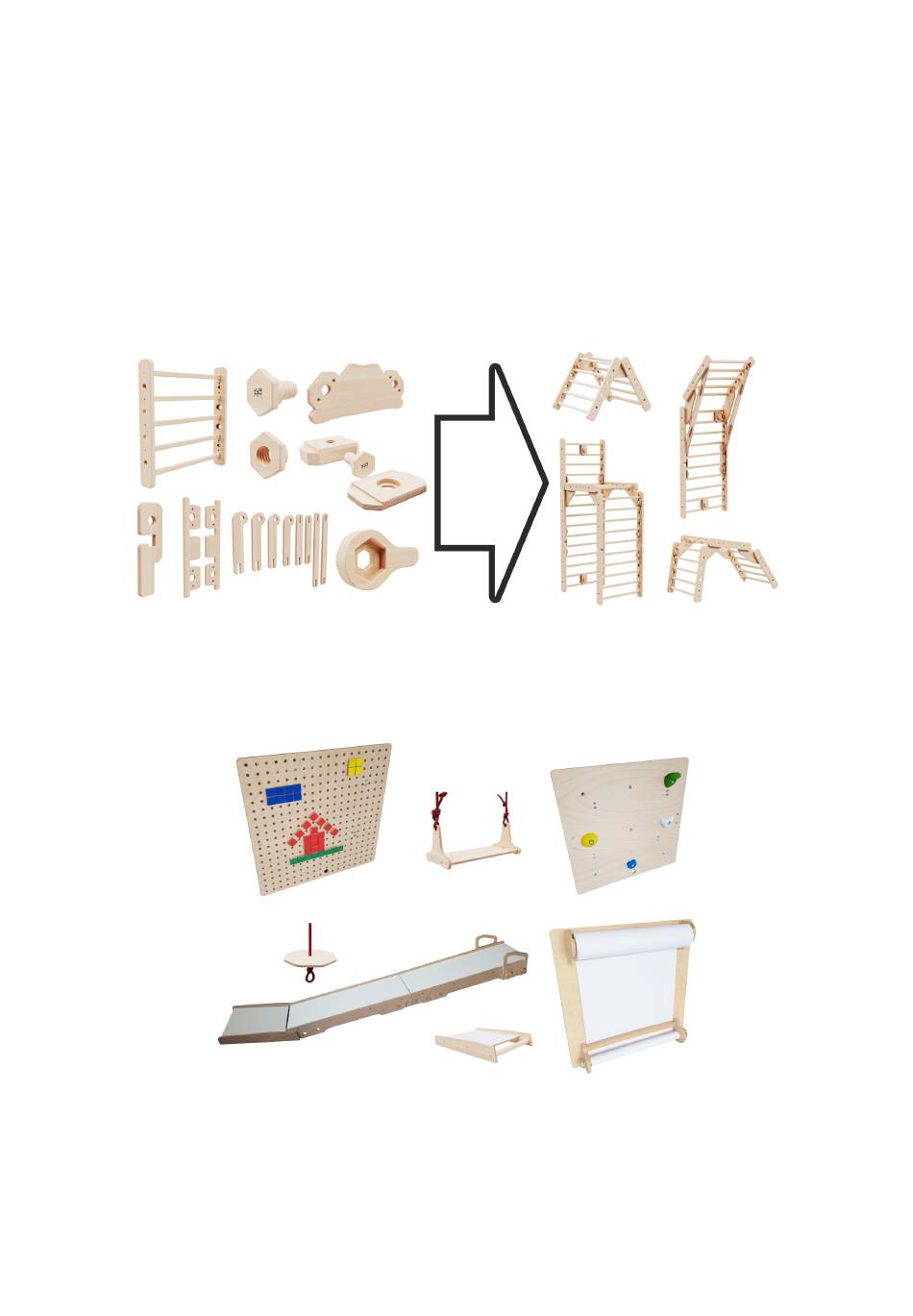

Faber climbing frames are a variable gym for the whole family. You can build many different climbing
structures (buildings) inside your house or in the apartment or in the garden. Faber grows with your children.
Gradually, you can expand your set of parts with additional parts and accessories, according to the current
needs of the family. You can enhance the climbing frames with accessories: balance boards, inclined planes
and other elements.
Faber can be split as follows:
1. Building parts, to build bare structures/projects:
2. Accessories, that can enrich the bare structures with various elements:
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Faber and is the answer not in the manual?

Questions and answers

Summary of Contents for Antonie & Emma Faber

  • Page 1 Faber climbing frames are a variable gym for the whole family. You can build many different climbing structures (buildings) inside your house or in the apartment or in the garden. Faber grows with your children. Gradually, you can expand your set of parts with additional parts and accessories, according to the current needs of the family.
  • Page 2 Building parts How to build a construction The basic building component of the Faber climbing frames is the Panel. Panel description: A - threaded holes for direct mounting of the bolt, B - holes without thread for mounting with bolt and washer, C - holes for reinforcing pin set It has a total of four screw holes at the ends.
  • Page 3 Here you can see how the E1 connector is installed: You can find the video instructions here: https://youtu.be/3Fz83QgE2ug E1 connector connects two panels together (above each other). One connector consist two parts. To connect two panels you will need one pair of E1 connectors. You can reinforce all joints made with these connectors with a set of pins  ...
  • Page 4 When combining those connectors with Faber panels you can build following projects:                        Basic constructions can be expanded and connected in various ways. This is done by the four holes located in the middle of the panel.
  • Page 5 First of all you need to find out what material is the wall on which you plan to install the Faber made of. Based on this you can choose one of three types of wall mounting kits for W1 connector in our eShop: For wood  ...
  • Page 6 If you have a problem attaching objects with similar wall plugs to your walls, or want to mount Faber climbing frame, for example, on the wall that has been insulated with polystyrene, take the W1 connector and consult your nearest specialist shop for fasteners or consult your dealer in every good hardware store.
  • Page 7 For big four-panel constructions, we recommend placing W1 connectors as shown below:...
  • Page 8 For constructions connected to each other we recommend to place W1 connectors as shown below: If you are not sure how or where to place W1 connectors in the best possible way for your construction, send us an email, we will be happy to help.
  • Page 9 The strength strap   is used to tilt two, three or four panels connected by E1 connectors at an angle to the wall. On the wall, the strength strap hooks into the W1 connector, which must always be tightened to fix strength strap as tight as possible. On the side of the panel, the strength strap is hooked into the bolts 50, which must be screwed 2 to 2.5 cm into the thread in the panel.
  • Page 10 Accessories Add some accessories to quickly and easily enhance your projects. For example a climbing board, whiteboard, plug and play board or an endless paper can be attached to each panel with a blink of an eye. Plug and play board must be place in a way when the top line is no higher than 100 cm from the floor.  Climbing board - for safety reasons, it is necessary to place blind screws in the holes where no climbing stones will be installed.
  • Page 11 The inclined plane can be also used as a counter, table, bridge or as an inclined surface to exercise with your own weight. The inclined planes can be interconnected, increasing their length. To do so you need 1 x SL1 connector and 8 x bolts 35. You can find out more about the load capacity of the connected inclined planes in the load capacity section.
  • Page 12 Make sure that the structure on which the balance board is installed is stable and that there is no risk of tipping over. The balance board can only be installed by an adult, who then checks the proper installation by testing the balance board himself. Use only the following knot (clove hitch) to tie the top of the rope behind the bars.
  • Page 13 Instructions of basic constructions Pikler triangle - small List of building parts: 1 x panel, 2 x T1, 4 x bolt 35 Load bearing capacity: 180 kg Pikler triangle - medium List of building parts: 4 x panel, 2 x T1, 4 x E1, 12 x bolt 35 Load bearing capacity: 100 kg...
  • Page 14 Bridge - small List of building parts: 3 x panel, 4 x T2, 8 x bolt 35 Load bearing capacity: 200 kg Bridge - medium List of building parts: 4 x panel, 4 x T2, 2 x E1, 12 x bolt 35 Load bearing capacity: 120 kg...
  • Page 15 Horse - small List of building parts: 3 x panel, 4 x T3, 8 x bolt 35 Load bearing capacity: 80 kg Horse - medium List of building parts: 4 x panel, 4 x T3, 2 x E1, 12 x bolt 35 Load bearing capacity: 80 kg...
  • Page 16 House - small List of building parts: 4 x panel, 4 x T3, 2 x T2, 12 x bolt 35 Load bearing capacity: 120 kg Dancing house - small List of building parts: 4 x panel, 2 x T2, 2 x T3, 2 x E1 12 x bolt 35 Load bearing capacity: 100 kg...
  • Page 17 Mountain - small List of building parts: 4 x panel, 6 x T3, 12 x bolt 35 Load bearing capacity: 80 kg Mountain - medium List of building parts: 5 x panel, 8 x T3, 16 x bolt 35 Load bearing capacity: 80 kg...
  • Page 18 Panther - small List of building parts: 3x panel, 2 x T2, 2 x T3, 8 x bolt 35 Load bearing capacity: 100 kg Lucky devil (push ups) - small List of building parts: 3 x panel, 2 x T2, 2 x E1, 8 x bolt 35 Load bearing capacity: 100 kg...
  • Page 19 Spider - small List of building parts: 4 x panel, 4 x T1, 2 x T2, 12 x bolt 35 Load bearing capacity: 100 kg Wall bars - small List of building parts: 2 x panel, 2 x E1, 1 x W1, 4 x bolt 35 Load bearing capacity: 150 kg...
  • Page 20 Wall bars (tilted) - small List of building parts: 2 x panel, 2 x E1, 1 x W1, 4x bolt 35, 2 x bolt 50, 1 x strength strap  Load bearing capacity: 120 kg...
  • Page 21 Wall bars with T2 trapeze - small List of building parts: 3 x panel, 2 x T2, 2 x E1, 3 x W1, 8x bolt 35  Load bearing capacity of trapeze without H1 brace is only 15 kg!!! Load bearing capacity of trapeze with H1 brace: 70 kg Wall bars with T3 trapeze - small List of building parts: 3 x panel, 2 x T3, 2 x E1, 3 x W1, 8x bolt 35 ...
  • Page 22 Cliff - small List of building parts: 4 x panel, 4 x T2, 2 x E1, 2 x W1, 12x bolt 35  Load bearing capacity: 120 kg Panel in open space - small List of building parts: 1 x panel, 1 x S1, 2 x nut 4 x bolt 35 Load bearing capacity: 120 kg...
  • Page 23 Load bearing capacity and stability It is recommended to always follow common sense. Each building must be built under the supervision of an adult and also checked and tested. Each building must also carry an adult with an average weight. The load-bearing capacities of individual basic constructions are described in the instructions.
  • Page 24 To increase load bearing capacity from 15 kg to 70 kg use H1 braces    Balance boards load bearing capacities:...
  • Page 25 Inclined planes load bearing capacities: Do not connect more than 3 inclined planes. The load capacity is reduced to 70 kg when three inclined planes are connected. For buildings in open space, it is extremely important to check their stability so that they do not flip over. Especially constructions that are equipped with a balance board or higher than one panel = 60 cm.
  • Page 26 Examples of properly built structures:        !!! HIGHER CONSTRUCTIONS ARE DANGEROUS, DON'T BUILD THEM !!! Buildings that do not comply with this rule shall not be fitted with balance board and climbing ropes unless properly anchored to the ground or to the wall.

  • Page 27: Maintenance

    Finish for outdoor use Surface treatment - Faber climbing frames for outdoor use should be treated only with Antonie Emma oil from our e-shop. In case of not following instructions (e.g. use of not approved oil) any claim will not be accepted.
  • Page 28 Important information ● The product is designed for indoor use. ● Do not expose to excessive moisture, rain or water. ● Do not expose to temperatures below 10 ° C and above 50 ° C. ● The product must not be used for any purpose other than that for which it has been designed. ●...
