West Coast Jump, LLC

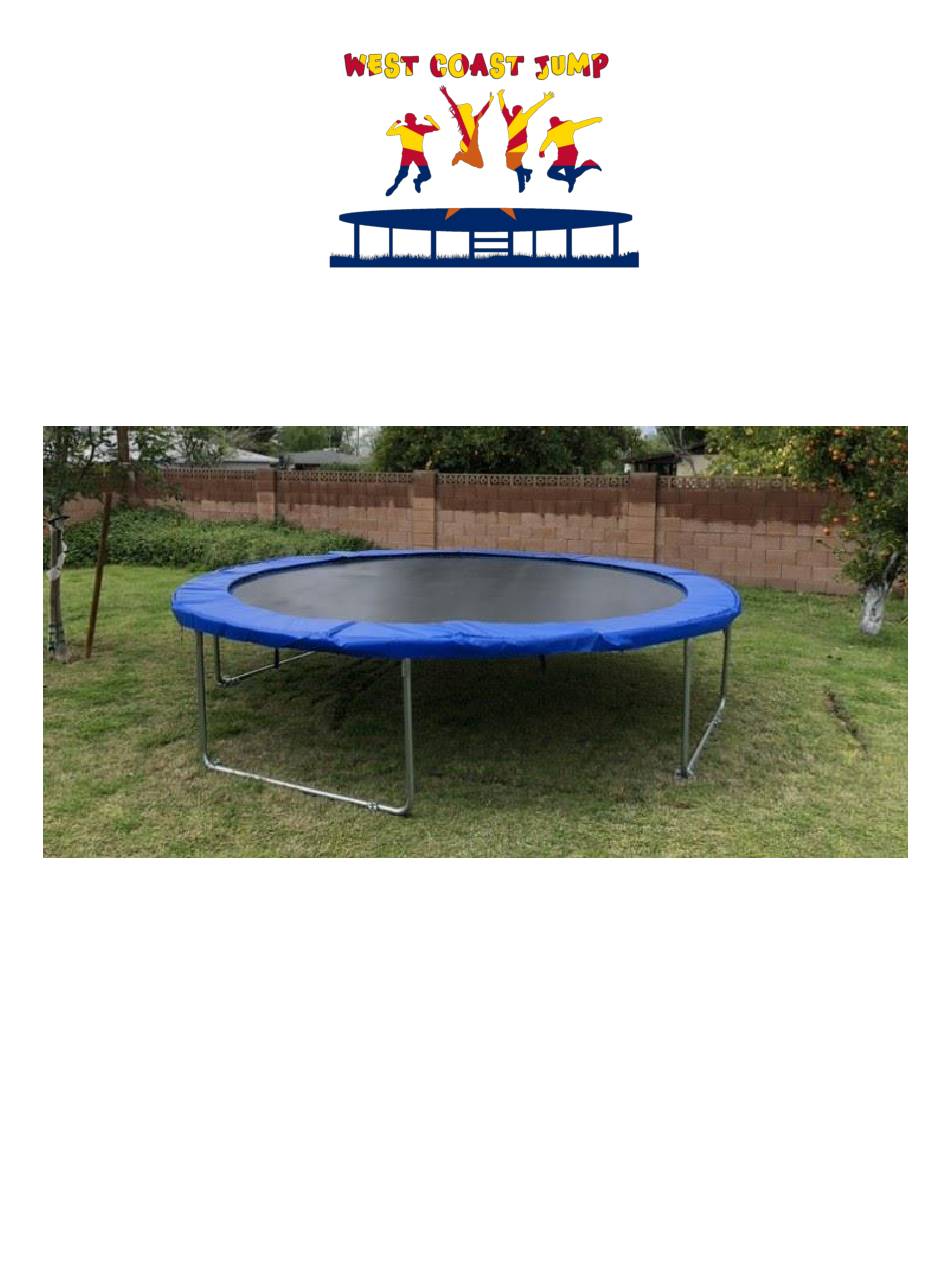

Round Trampoline Assembly Instructions
Parts List
4 - Round Frame Top Quarter Sections
4 - Trampoline Leg
1 - Box Springs (14'-104 Springs, 12'-88 Springs)
1 – Trampoline Mat
1 – Safety Pad
Trampoline ladder and Enclosure System sold separately
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for West Coast Jump Round Trampoline
- Page 1 West Coast Jump, LLC Round Trampoline Assembly Instructions Parts List 4 - Round Frame Top Quarter Sections 4 - Trampoline Leg 1 - Box Springs (14’-104 Springs, 12’-88 Springs) 1 – Trampoline Mat 1 – Safety Pad Trampoline ladder and Enclosure System sold separately...
- Page 2 Thank you for purchasing your trampoline from us- we hope you enjoy it for years to come! Assembly 1) Lay trampoline frame parts out as shown in photo. 2) Connect the top circle together by pulling out the ends and insert them into each other. It is normal for them not to go together all the way.
- Page 3 3) Start installing the trampoline mat by finding the West Coast Jump label and hooking 1 end of a spring into the v-ring and the other end into a hole in the circle frame.
- Page 4 4) Continue installing the mat by counting halfway around the circle frame and putting 1 more spring. (For it to be exactly halfway, the 14’ will be the 52 hole/v-ring, for the 12’ this will be the 44 hole/v-ring) Add 1 spring approx.
- Page 5 5) Insert legs into the top frame. It is normal for them to not go in completely. Once all of the legs are in, you will need to apply pressure above the legs to help them sink completely in.
- Page 6 6) Once all 4 legs are in place, split the distance and put one spring in the center of each spacing until you have all the springs installed. It will take about 3-4 times around the trampoline to complete this part.
- Page 7 7) Install safety pad. Place pad on trampoline on top of the springs with the side skirting facing up and buckle into place. Finally, to finish, fold the skirt down around the frame. 8) If you purchased an enclosure system, install it at this time. Follow the instructions supplied with the enclosure system.
