Summary of Contents for FOX-TECH TEMPHAWK
- Page 1 Fox-Tech Co. All Rights Reserved. Do not redistribute. With connectivity Document Version: V3.1 V4.1 User Manual TEMPHAWK Introduction...
- Page 2 TEMPHAWK device x1 Adaptor x1 USB charging cable x1 Contents Temperature & Humidity sensor cable Fox-Tech Co. All Rights Reserved. Do not redistribute.

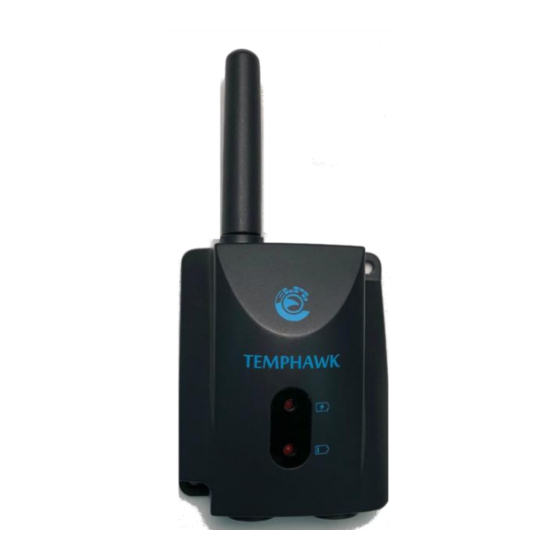

- Page 3 Fox-Tech Co. All Rights Reserved. Do not redistribute. TEMPHAWK Device Sensor Probe The Device • Sensor cable length: 1.5 M • Temperature Range: -40°C to +125°C • Humidity Range (%RH): 0% to 100% • Overall Dimensions: 68 x 86 x 36 mm 3.8 cm...
- Page 4 Fox-Tech Co. All Rights Reserved. Do not redistribute. Waterproof Cover Charging • Plug the charging cable into the charging port. • The LED light shows red when a device is being charged. • It takes about 5 hours for a device to be fully charged.
-
Page 5: Led Light Indication
Fox-Tech Co. All Rights Reserved. Do not redistribute. LED Light Indication LED Light Status Description Status icon Charging Light glows Charging None Completed Low power Blink (<15%) When the device is in low power mode, the LED light will blink 3 times every 5 minutes. -
Page 6: Installation
• Secure the sensor cable with the screw on the sensor port. Once being securely screwed; the device is ready for monitoring. Notice： • The TEMPHAWK device cannot be deployed in an ▸ Step 3 environment that is fully covered with metal. • Deploy TEMPHAWK solution in the environment •... - Page 7 Fox-Tech Co. All Rights Reserved. Do not redistribute. Hardware Troubleshooting - Contact us Please provide the following information and send it to service@fox-tech.co • Company Name • Contact person • Order Number • Product Name • Device ID • Time of problem occurred (YY/MM/DD hh:mm) •...
