- Page 1 Quick Installation Guide J Series/ M Series /S Series IP Security Camera (EN) For a complete product manual and installation software, please visit TOPODOME official website. www.topodome.com Copyright © 2020 Topodome, All rights reserved...
-
Page 2: General Introduction
Topodome Quick Installation Guide QIG-En-V1.0 General Introduction Topodome IP Security Cameras include J series, M series and S series products. These cameras can be installed in various places, walls, backyards, indoors and corridors. These series of products can be viewed with the same mobile APP or computer software, providing customers with convenient and safe services. -
Page 3: Physical Description

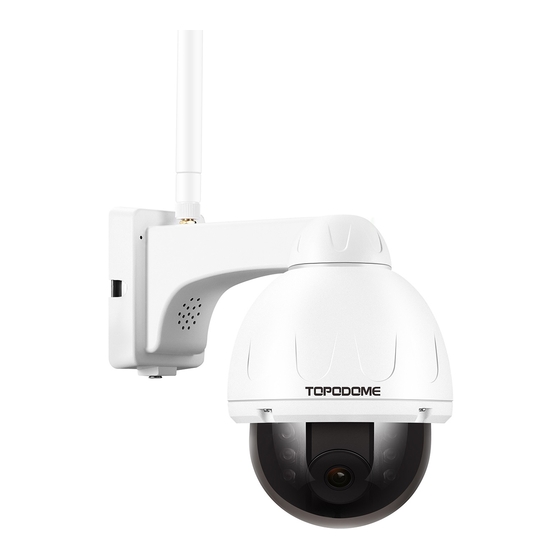

Topodome Quick Installation Guide QIG-En-V1.0 Physical Description S- Series Overview J- Series Overview M- Series Overview ● The above figures are for reference only, the actual products appearance maybe different. www.topodome.com Tech support email support@topodome.com... -
Page 4: Important Tips
Topodome Quick Installation Guide QIG-En-V1.0 Important Tips: 1.The suitable use environment temperature is -20 to 60 degrees Celsius, please avoid using in an environment that exceeds this range. 2.These products only support 2.4G wireless network. Please make sure that your wireless router supports 2.4G wireless and does not activate MAC filtering (For Mac address of camera, please refer to 3.1 section) or firewall. -
Page 5: Hardware Installation
Topodome Quick Installation Guide QIG-En-V1.0 Start Installation of the Camera These cameras can be installed by a smartphone/ tablet (Android or iOS), or by a PC (Windows or Mac OS). Please finish the hardware installation first and begin the software configuration refer to the below guide. - Page 6 Topodome Quick Installation Guide QIG-En-V1.0 1.4 During the camera configuration process, if you use a mobile phone or tablet device, you can choose to connect the camera to the router with a network cable, or choose not to connect the network cable. Instead, connect the camera's hotspot first, and then set up a wireless connection with the router.
- Page 7 Topodome Quick Installation Guide QIG-En-V1.0 2. Smart Phone Installation Method 2.1 Download and Install CamHi Pro App. Search "CamHiPro" on App Store or Google Play, or scan the QR code to download CamHiPro App and install it on your Phone/ Tablet.
- Page 8 Topodome Quick Installation Guide QIG-En-V1.0 Run the CamHiPro App on the phone. Tap "Click Add Camera", then tap "IP camera". If it is for the first installation, go to "New device", 2.2.1 then tap "Power is on, next step". Here you can choose "Connected network Cable"...
- Page 9 Topodome Quick Installation Guide QIG-En-V1.0 yours, input the WIFI password, then tap "Configure wireless and add". Fig2.1 Wireless configuration When WiFi configuration is successful, you can choose Camera Name from default options or input yours. If you decide not to configure the Wireless and click the "Not configured yet, add directly", will skip the...
- Page 10 Topodome Quick Installation Guide QIG-En-V1.0 Now the camera device page will appear, please tap the Video Windows of the camera and enter the Control Panel of your camera. In the Control Panel, you can implement functions such as video recording, screenshots, two-way voice and image adjustment.
- Page 11 Topodome Quick Installation Guide QIG-En-V1.0 For Android phones, next step will display "Discover device hotspots" , and WiFi hotspot "IPCAM-xxxxxx" will appear in the hotspots list (xxxxxx is same as the UID middle number, Fig1.3), default password is "01234567". It is recommended to connect to the hotspot manually.
- Page 12 Name your camera and go to the camera list page, tap the camera you have added, enter Control Panel to operate the camera (more details please refer to the manual book on the www.topodome.com). 2.2.2 If the camera has been added successfully before and you want to connect it with another mobile phone, go to "Device in use"...
- Page 13 Topodome Quick Installation Guide QIG-En-V1.0 is successful, Congratulations! Fig2.4 Add camera in use 2.3 Change the default Password of the Camera For security reasons, after the installation is complete, it is strongly recommended that you modify the default login password. You can modify it through the mobile App or through the browser.
- Page 14 Topodome Quick Installation Guide QIG-En-V1.0 Click here and enter camera function settings Fig2.5 Camera settings Tap the "Gear Icon" in the camera panel, the function settings page will pop out, go to the "Change Password" option, input your new password and tap "Apply".
- Page 15 Topodome Quick Installation Guide QIG-En-V1.0 2.4 Modify Wireless Configuration via App You can modify the WIFI configuration via APP anytime. Go to "functions settings", tap "Wireless setting". You can get the Wi-Fi list near your device, if you want to change a new Wi-Fi network, just choose the new SSID and input the login password to connect again.
- Page 16 Topodome Quick Installation Guide QIG-En-V1.0 3. Personal Computer Installation Method If you want to install the camera by a PC for the first time, please finish the hardware installation. Refer to Fig1.1 and Fig1.2 (connect a network cable to router and power on).
- Page 17 Topodome Quick Installation Guide QIG-En-V1.0 Install the camera with CMS Software Please download the CMS software from the URL of www.topodome.com/support, the software named HiP2P Client. After the CMS software is installed, a shortcut will appear on the desktop. Double click and run the software.
- Page 18 Topodome Quick Installation Guide QIG-En-V1.0 click "OK" to log in to the software. When the software starts, it will automatically search and add all cameras in the local area network. If the default username and password of the camera are still "admin", the camera will be added automatically;...
- Page 19 CMS software, and then you can view the camera, or set PTZ,Preset,Image setting etc. For other advanced software settings, such as Alarm Settings, Video playback, Wi-Fi settings or record management, please visit Topodome official website www.topodome.com for more details.
- Page 20 Topodome Quick Installation Guide QIG-En-V1.0 "admin" and default password "admin". 4. For IE11 and edge browsers, when the camera is installed for the first time, a plug-in installation prompt will appear.The name of the plug-in is ClientPlusSetup. If there is no prompt, you can click "Setup software"...
- Page 21 Topodome Quick Installation Guide QIG-En-V1.0 3.4 Wireless Connection Setup via Browser 1. Click the menu Settings on the top of the live view window, go to the option Network-->Wireless, first select Enable Wireless, then click the search button, all WiFi names around the camera will be displayed, please choose the WiFi name you want to connect and input the login password of WiFi.
-
Page 22: Frequently Asked Questions
Topodome Quick Installation Guide QIG-En-V1.0 Frequently Asked Questions Q1: Why does the program prompt me with "wrong password" even though I tried different username and password several times? A1: ①The original username and password are both "admin" (lowercase, no capital letters) as factory default setting. - Page 23 Topodome Quick Installation Guide QIG-En-V1.0 the oldest file. If you want to delete files manually, please enter the "SD Card Settings" function and click Format. Q5: I set up the wireless function of the camera, but when I unplug the network cable, the camera...
- Page 24 Q9: What kind of memory card does the camera support? A9: The memory card supported by the Topodome camera is a Micro SD card, its size is 15mm × 11mm × 1mm; please be careful not to buy an standard SD card for the camera, it is larger (24mm×32mm×2.1mm).
- Page 25 Topodome Quick Installation Guide QIG-En-V1.0 integral transparent covers, which need to be removed before installing the TF card. For J series cameras, you can find a detachable cover at the bottom of its body. After opening, you can find the TF card slot.
