FITWAY FW-1000IC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
FW-1000IC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FW-1000IC and is the answer not in the manual?

Questions and answers

Summary of Contents for FITWAY FW-1000IC

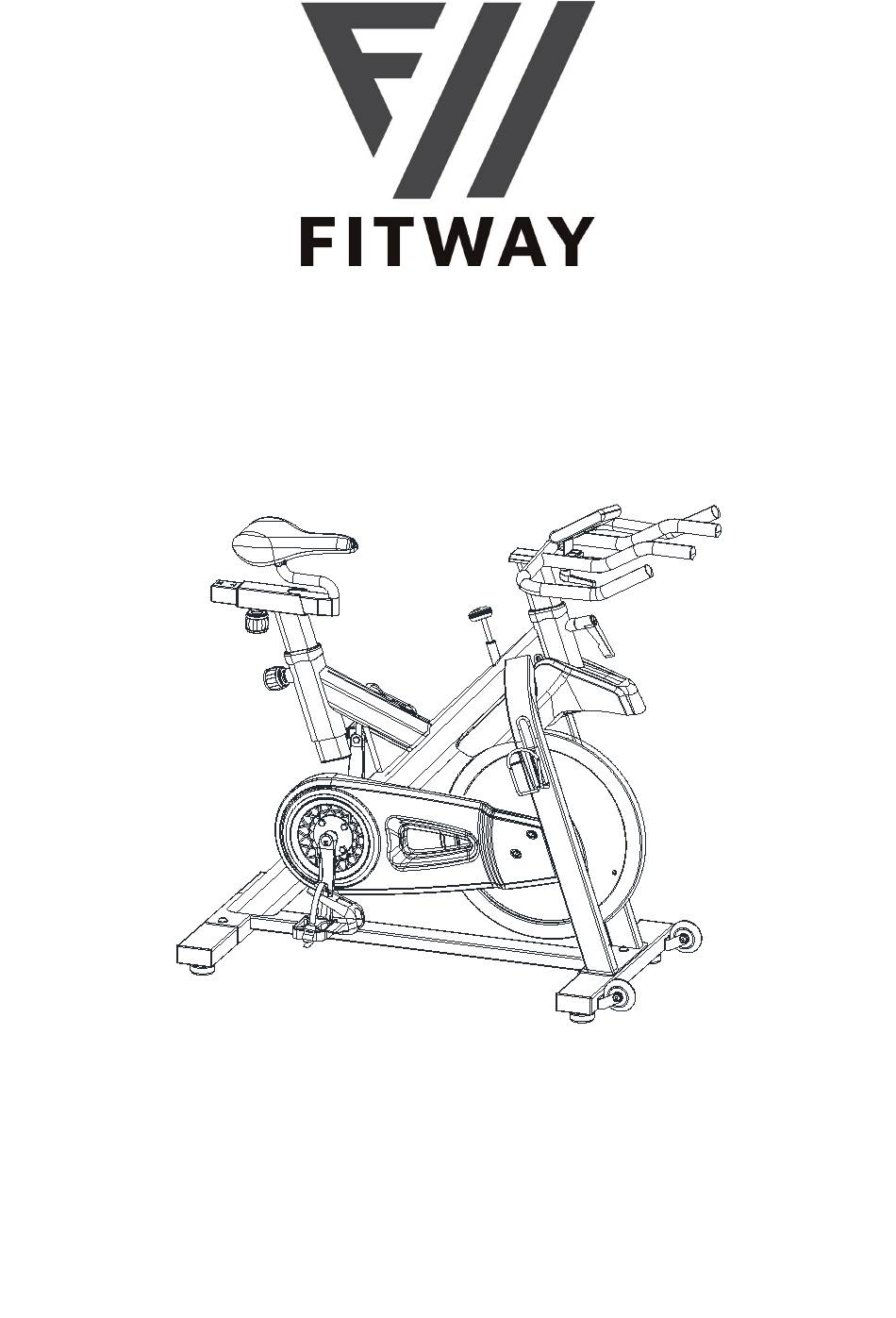

  • Page 1 USER MANUAL FW-1000IC...
  • Page 2 Amendment: Console Pairing Instructions Although your new FitWay 1000ic may come with the wireless console paired, it is sometimes possible that the console will have to be paired with the bike again after assembly. Please follow the steps below to complete the pairing process: 1) Remove the battery cover from the back of the console.

  • Page 3: Safety Guidelines

    SAFETY GUIDELINES Regular maintenance of the bike should be performed and is essential to keep your Indoor Cycle in top operating condition. Without preventative maintenance, normal wear and tear may cause cumulative effects, such as misalignment or early replacement of parts. Once assembled, please inspect to make sure that all hardware parts such as bolts, nuts and washers are positioned and tightened correctly.

  • Page 4: Exploded View

    EXPLODED VIEW...

  • Page 5: Parts List

    PARTS LIST DESCRIPTION SPECIFICATION Main Frame Seat Post 30*70*1.5T*340L Seat Slider 38*38*270L*T1.5 Handlebar Post 30*70*1.5T*340L Handlebar Ø28*2T Cap Nut M12*P1.0 Rear Stabilizer 40*80*498*1.5T Front Stabilizer 40*80*498*1.5T Tension Knob Tension Bracket welding Plastic Sleeve Φ19*Φ15.5*40L R/L Crank 9/16"-20UN 1SET Phillips Self-Tapping Screw ST4.8*15 Chain Cover A Chain Cover B...
  • Page 6 Magnet Plate Bearing 6202 6202-2RS Bearing 6004 6004-2RS Bearing 608 608-ZZ Brake Thread Rob Φ10*240L C-Shaped Buckle Φ20 Hexagon Bolt M10*8T Inner hexagon hollow bolt Φ8*M6*30 Brake Adjusting Nut 20*15L Washer Φ5.2*1.0T Inner Hexagon Flange Bolt M10*P1.25*8 Cross Recessed Countersunk Bolt M5*25L Hexagon Thin Bolt M12*P1.0...
  • Page 7 ASSEMBLY INSTRUCTIONS...
  • Page 8 STEP 1: Assemble Front and Rear Foot Tubes Detach the shipping supports (metal pieces attached with 2 screws under the front and rear stabilizers.) Discard the supports and screws. Follow the figure below and attach the Front Stabilizer (8) and Rear Stabilizer (7) under the Main Frame (1) with 4 pcs of Button Head Hex Socket Bolts (34), and 4 pcs of Flat Washer (33) by using the supplied Allen wrench for fastening.
  • Page 9 STEP 2: Assemble the Front Fender Attach the Front Fender (85) to frame with Phillips Bolt (84).

  • Page 10: Step 3: Install The Pedals

    STEP 3: Install the Pedals Gently insert the Left Pedal into the Left Crank, make sure the pedal is at a 90° Angle to the crank. Slowly rotate the Left Pedal (35-L) into the left crank using Open Spanner Wrench (15) towards the direction of Handlebar (counterclockwise).
  • Page 11 STEP 4: Assemble the Handlebar Post Slide the Handlebar Post (4) into the housing on the Main Frame (1). Install and tighten the L-Quick Handle (79) to secure the Handlebar Post. (As Pictured)

  • Page 12: Step 5: Assemble The Handlebar

    STEP 5: Assemble the Handlebar Attach the Handlebar (5) to the Handlebar Post (4) and tighten in with the ratcheting Quick Handle (66) and Flat Washer (big and thick) (31).
  • Page 13 STEP 6: Assemble the Seat Post Slide the Seat Post (2) into the housing on the Main Frame. Install and tighten the Quick Handle (23) to secure the seat post.

  • Page 14: Step 7: Assemble The Seat

    STEP 7: Assemble the Seat Loosen the Pop Pin (23) and then pull down on the Pop Pin (23) to insert the Seat Slider (3) into the Seat Post (2). Re-tighten the Pop Pin (23). Attach the Seat (22) to the Seat Slider (3) with the wrench provided.
  • Page 15 STEP 8: Assemble the Console Install the Console Mount (81) onto the handlebar (5) with Philips Screws (72). Install the Computer (80) onto the Computer Mount (81) and then lock it with Philips Bolt (82).
  • Page 16 STEP 9: Assemble the Water Bottle Holder Install the water bottle holder (65) onto main frame with Washer (70) and Philips Screws (72).
  • Page 17 SAFETY CHECK, TRANSPORT & MAINTENANCE 1. Before using your Indoor Cycle, please kindly check that all the moving parts (screws, nuts, adjustment levers, etc.) are firmly tightened and secured. Please check your equipment regularly. If any damaged parts are found, discontinue use, and replace them immediately. Do not exercise with your Indoor Cycle until relevant worn parts are repaired or replaced.

  • Page 18: Computer Operation

    COMPUTER OPERATION BUTTONS (Left to Right): MODE -Select what appears in the window -Hold for 2 seconds to reset all data -Set the values of the current display, hold to quickly increase REST -Resets the current values displayed on the screen RECOVERY -Press to enter or exit the pulse recovery function while in the Heart Rate Display mode (only works when using a compatible heart rate strap, sold separately)
  • Page 19 CONGRATULATIONS Thank you again and congratulations on your purchase of this FitWay Indoor Cycle. Should you have any questions or concerns please contact us at: Support@fitwayequip.com Full Warranty details can be obtained at: fitwayequip.com -or- By emailing us at: Support@fitwayequip.com...
