SAM-A1 Owner's Manual

FSL0132

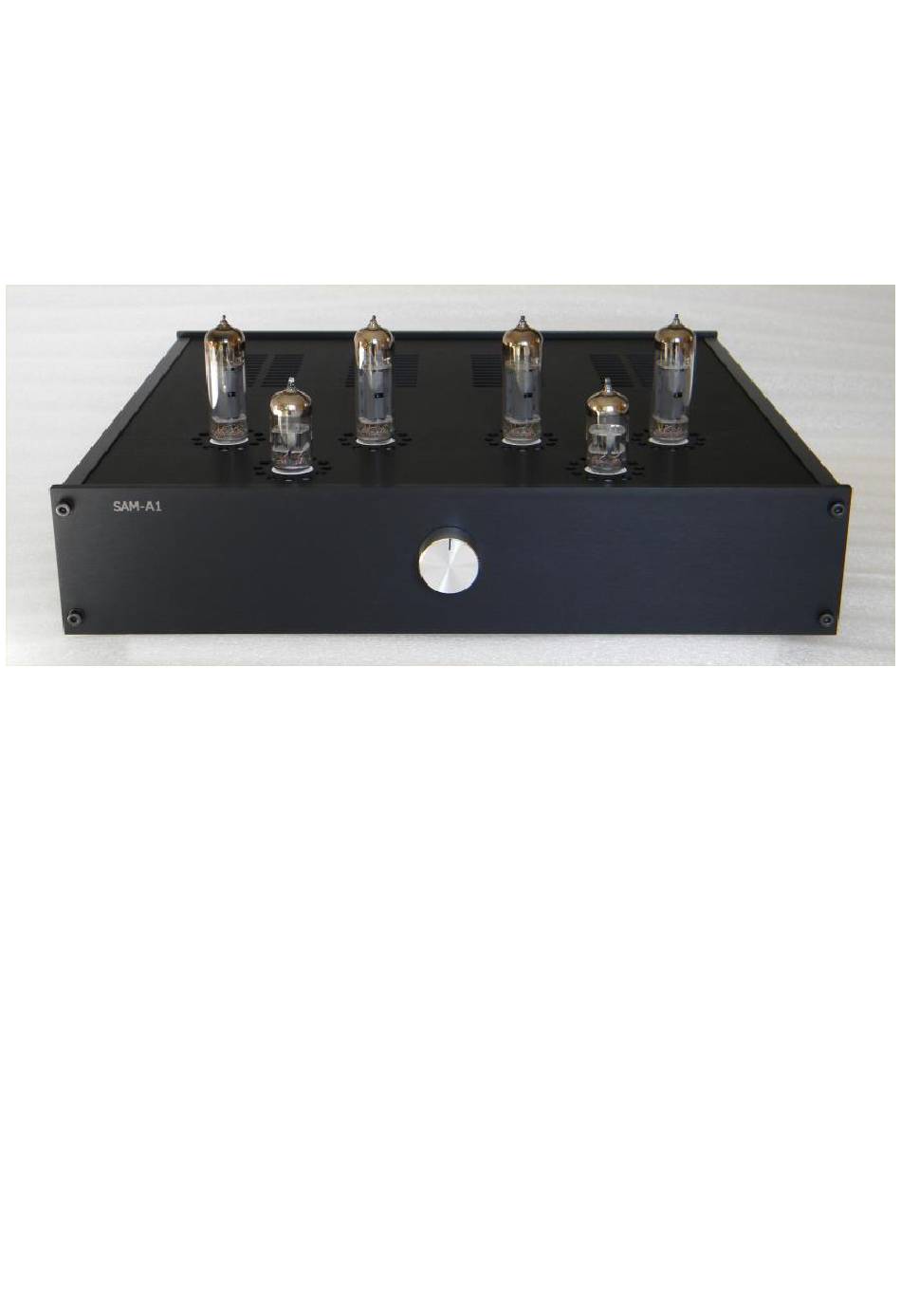

SAM-A1 Stereo Audio Valve Amplifier

Owner's Manual

READ BEFORE OPERATING THIS EQUIPMENT

Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the

information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party

Page 1

Table of Contents

Need help?

Do you have a question about the SAM-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fireworks SAM-A1

Page 1 READ BEFORE OPERATING THIS EQUIPMENT Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 2: Contents Introduction
This document master is held electronically. Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 3: Table Of Contents
RoHS and WEEE statement ..................24 Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 4: Glossary/Abbreviations
Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 5: Safety And Warnings
Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 6: Equipment Operating Specifications
Frequency response and distortion dependent on configuration. Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 7 0(zero) or 10kOhms. Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 8: Hazardous Voltages & Fragile Components
NEVER remove valves while the equipment is connected to the mains ac supply. Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 9: Mechanical Properties
Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 10: Getting To Know The Sam-A1
Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 11: Connecting The Sam-A1 To Your Other Audio Equipment
Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 12: Installing The Valves
Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 13 Correctly installed valves: Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 14: Using The Sam-A1 Amplifier
Turn the volume control up (clockwise) until the desired listening volume is achieved. Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 15: Installing Or Removing Valves
Inserting a valve in to its base. Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 16: How To Remove A Valve From Its Base
Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 17: Routine Maintenance
Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 18: Servicing And Configuration
10.1. Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 19: Routine Output Bias Adjustment
Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 20: Troubleshooting
Troubleshooting continued…. Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 21 Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 22: Manufacturer Information And Warranty
Tel: +44(0)7747 863 196 Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 23: Ce Marking: Declaration Of Conformity
Will Bartlett-Hooker, Director. Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
Page 24: Rohs And Weee Statement
– usually your local council run recycling centre. Fireworks Solutions Limited (FSL) has proprietary rights in the information disclosed herein. The recipient, by accepting this document agrees that neither this document nor the information disclosed herein nor any part(s) thereof shall be produced in any manner whatsoever or transferred to other documents or media or used or disclosed to any third party for any purpose except as specifically authorised in writing by FSL.
