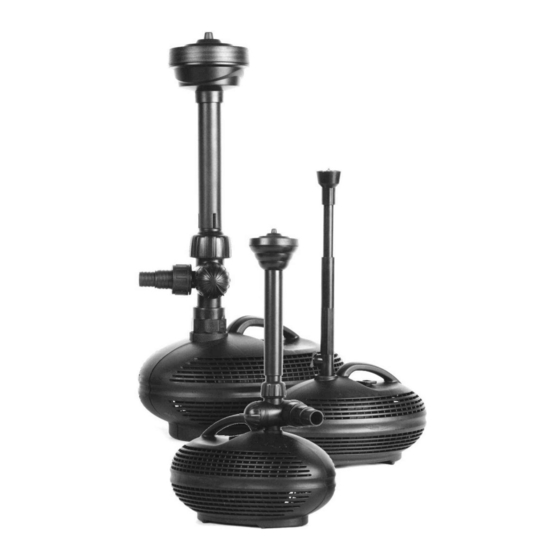

Oasis Atlantis Lotus MAXIMUS Eco 800 Installation And Maintenance Instructions

Maintenance Maximus Eco 4500-6000-8000
1. Disconnect pump from
the mains electrical
supply.
2. Remove outer shell and
clean in water.
3. Remove the 3 Screws
4. Remove impeller housing
Inspect and clean if
necessary.
5. Inspect site of impellor
housing and o-ring. Clean
if necessary.
6. Check impeller for any
debris. Clean if
necessary.
7. Check if impeller runs
freely: if not, rotate
several times until
impeller is free to rotate.
8. There are no other consumer maintenance items in these pumps.
9. Reassembly is a straightforward reversal of the above procedure.
For 36 months (3 years) from the date of purchase OAL will repair or replace this pump, free of charge, if
defective in material or workmanship. The ceramic bearings and shaft contained within this pump are
guaranteed for the life of the pump. The maintenance schedule must be followed. This warranty will be invalid
if the pump is not maintained in accordance with the instructions within this manual.- To claim please see
below.
LIMITATION OF WARRANTY
OAL will not be liable for normal "wear and tear'' items as indicated in this owners manual. No liability is
assumed with regard to loss or damage of livestock or property irrespective of the cause thereof. This warranty
does not affect your statutory rights. Failure caused by misuse is not covered by this warranty.
This warranty is invalid if the product fails as the result of accidental damage, improper installation, or failure to
maintain as directed in this owners manual. Neglect, misuse, modification or use with any liquid other than
fresh, clean water (above freezing point, but below +35C) will invalidate this warranty. The use of this pump
below the rated depth (2 metres) will invalidate this warranty. Running this pump dry or without the pump
body/base cover will invalidate this warranty.
DO NOT return the pump to the retailer. Either contact us by telephone/email or send the pump, securely
packed With your name and address. Enclose a brief note advising the nature of the fault. If repair is
claimed under warranty, proof of purchase receipt MUST be returned with the pump.
OAL WATER GARDEN PRODUCTS LTD.
Oasis House, Deer Park Ind Est. Knowle Lane
Fair Oak, Eastleigh, Hants, SO50 7PZ
+44 (0) 23 8060 2602
Email: info@oasis-water-gardens.com www.oalwatergardens.com
Pump Body
Pump Outlet
Water Inlet
WARRANTY
HOW TO CLAIM
Impeller
800, 1200, 1700, 2300, 3000, 4500, 800, 1200, 1700, 2300, 3000, 4500,
* Depending on model - Compared to previous Maximus Pump Models
INSTALLATION INSTALLATION
MAINTENANCE MAINTENANCE
INSTRUCTIONS INSTRUCTIONS
6000 & 8000 6000 & 8000
AND AND
