Summary of Contents for KineticoPRO Compact Commercial Series

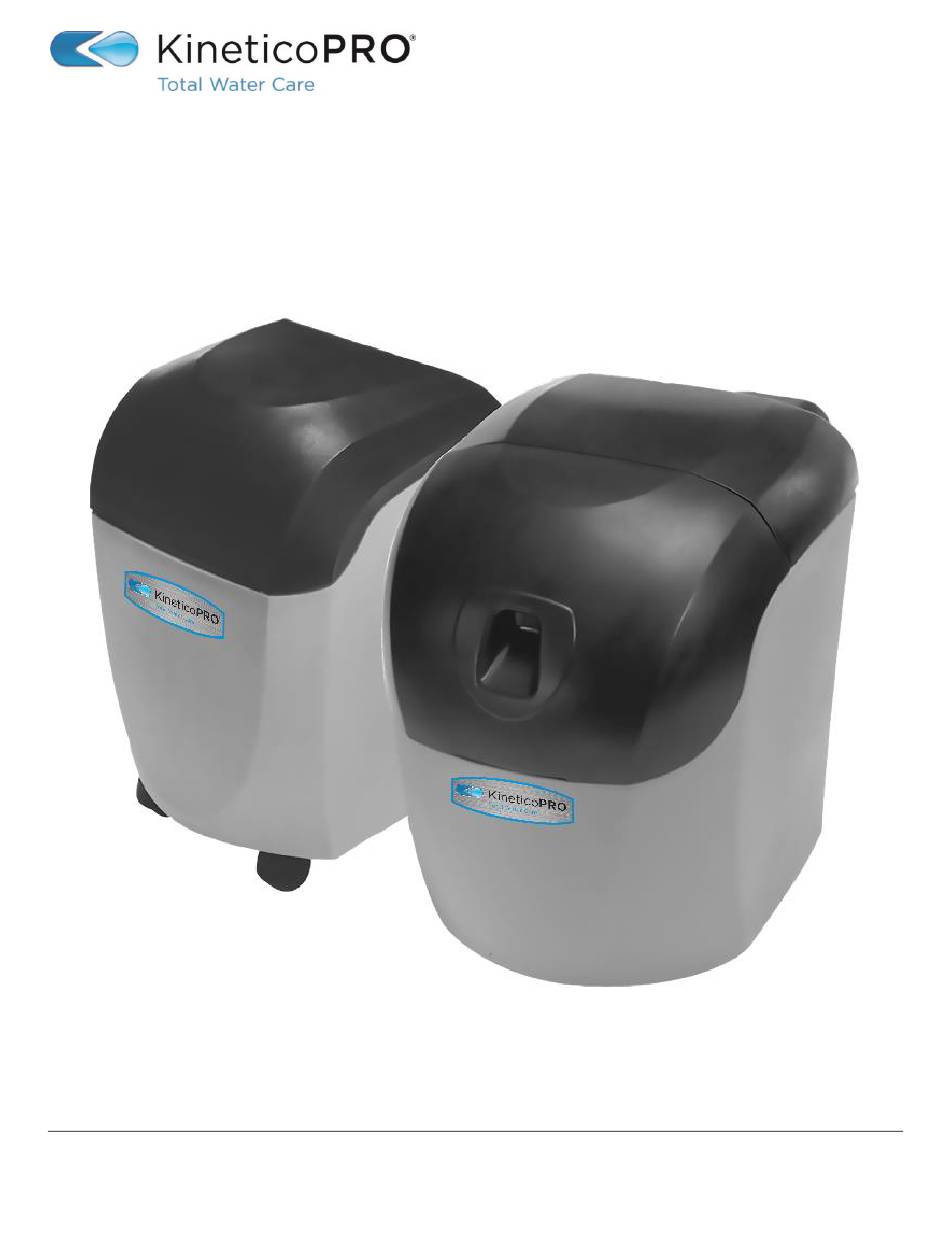

- Page 1 Owner’s Manual Compact Commercial Series Models: CC 206s CC 206c CC 208s CC 208c CC 208h...
-
Page 3: Table Of Contents
Tank Components ..........................12 3.0 I NSTALLATION Getting Started ........................... 13 Pre-installation Review ........................13 KineticoPRO Compact Commercial Softener Installation ..............14 4.0 T ROUBLESHOOTING Ten Steps to Determine the Problem ....................17 Hard Water ............................19 Frequent Regeneration ........................20 High Salt Consumption ........................ -
Page 4: General Information
NFORMATION About this Manual This manual will cover information needed for the proper installation and operation of your KineticoPRO Compact Commercial Softening System. We have also included information regarding the frequently asked questions about softening systems. This information may be more technical in nature, but provides further insight to the continued operation of this equipment at its highest levels. -
Page 5: The Compact Commercial Softener
The Compact Commercial Softener The CC Series provides continuous soft water to smaller (<10 gpm) commercial applications. The unique design of Kinetico’s control valve allows for all softener functions to operate automatically and non-electrically. The system has a number of options as described: (s) –... -
Page 6: Flow Rate Sizing
Compact Commercial Softener Owner’s Manual Flow Rate Sizing For sizing flow rates, there are three parameters that need to be determined to appropriately size a system: • Average Flow • Peak Flow • Continuous Flow Average Flow This can be calculated based on the daily or monthly volume of water used, divided by the number of hours the facility is in operation. -
Page 7: Specifications
Specifications CC 206s CC 206c CC 208s CC 208c CC 208h* 6” x 13” 6” x 13” 8” x 17" 8” x 17" 8” x 17" Tank Size Resin Volume 0.2 ft 0.2 ft 0.4 ft 0.4 ft 0.4 ft Service Flow Upflow Upflow... -
Page 8: Operating Specifications
PECIFICATIONS System Operation KineticoPRO Water Softeners use a twin tank design to assure that treated water is always available. When one tank regenerates, the other supplies treated water. The Kinetico Valve controls when each tank is in service, when each tank must be regenerated and the regeneration of each tank. -
Page 9: Disc Selection
Disc Selection CC 206c Alternating Operation with Central Brining Meter Disc Selection (Compensated Hardness*) Setting Capacity Efficiency Dosing 0.5 lb 1,914 grains 3,828 g/lb 2.7 lb/ft 1.0 lb 2,527 grains 2,527 g/lb 6.25 lb/ft Gallons/Regeneration: Flow during regeneration (@ 15 psig): *Compensated hardness in gpg = Hardness + (3 x Fe in mg/L) CC 208s Alternating Operation with Central Brining... -
Page 10: Kinetico Valve Operation
Compact Commercial Softener Owner’s Manual Kinetico Valve Operation Water Meter Disc The frequency of regeneration can be adjusted without re-gearing the system. The use of the water meter disc provides for multiple regenerations per 360º cycle on the water meter. Each regeneration notch on a water meter disc will initiate a regeneration when the regeneration start pawl drops into one of these segments and engages with the teeth Meter Disc 1 Meter Disc 5... -
Page 11: Control Disc Indicator
Control Disc Indicator right left right left A visual indicator on top of the control disc (black dot) shows the state of the system at any time. The control disc rotates clockwise. When the indicator dot is at the 12 o'clock position, the Right Tank is in service. -
Page 12: Tank Components
Compact Commercial Softener Owner’s Manual Tank Components System By-pass For each system, a by-pass is recommended. This can be installed using three ball valves. This allows the system to be isolated during any service operations. By-pass valving is not included as a part of the system package. -
Page 13: Installation
NSTALLATION Getting Started The following procedures have been developed to assist during the installation of your KineticoPRO Softener. ALL STATE AND LOCAL PLUMBING CODES MUST BE MET, including, but not limited to: • Distances that equipment should be placed from the main panel box and electrical outlets. -
Page 14: Kineticopro Compact Commercial Softener Installation
NOTE: Clear area along wall where PVC drain line will be run to floor drain. KineticoPRO does not recommend running flexible tubing across floor or along walls, as it may be kicked out of discharge point at floor drain, or line may become pinched resulting in improper backwashing. - Page 15 Running drain line higher than 10 feet will inhibit the ability of the venturi to draw brine. In KineticoPRO Softeners, the brine drum mixes and stores a solution of salt for regeneration of the softener media. During the brine rinse cycle, this solution is drawn from the brine drum and through the media to regenerate it.
- Page 16 Compact Commercial Softener Owner’s Manual Adjuster Tube Setting The Adjuster Tube is set by cutting and removing tabs on both sides of the tube. Using a pocket-knife, cut across each tab horizontally, following the channel in the plastic. Break off each tab individually until the proper setting is reached.
-
Page 17: Troubleshooting
ROUBLESHOOTING Ten steps to determine the problem… 1. Gather Information Any information obtained can reduce troubleshooting time. 2. Test the Water Test hot, cold and raw. • Hot water, stored in the water heater, can tell you what the water was like yesterday. •... - Page 18 Compact Commercial Softener Owner’s Manual 5. Place the unit in manual Check if unit is drawing brine by disconnecting the brine line from regeneration in the brine position the elbow on the Level 3. • Is the brine suction elbow screen clogged? •...
-
Page 19: Hard Water
Hard Water Problem Reason Solution ▪ Replace meter drive pawl. 1. Water meter disc is ❑ Non-conforming meter drive pawl. not turning. ▪ Reinstall meter drive spring. ❑ Meter drive spring installed wrong. ▪ Install no back pawl. ❑ No back pawl not installed. ▪... -
Page 20: Frequent Regeneration
KineticoPRO softener works. Emphasize KineticoPRO units. may not realize that KineticoPRO units that regeneration is controlled by the can regenerate at any time of the day or measurement of water use rather than night. -
Page 21: Salty Treated Water
❑ This is due to heavily chlorinated raw city chlorine odor water. and/or taste. ▪ Inform the customer of the KineticoPRO 3. Treated water has ❑ In high TDS (1000+) applications, salt a salty taste. taste may be present due to the ion RO System or Commercial RO System. -
Page 22: Iron Bleed-Through
Compact Commercial Softener Owner’s Manual Iron Bleed-through Problem Reason Solution ▪ Verify the customer plumbing is the 1. Customer ❑ Previous iron buildup inside existing plumbing. plumbing after the water softener. problem by testing the water quality at the brine fitting with water conditions. 2. -
Page 23: Pressure Loss
Pressure Loss Problem Reason Solution ▪ Replace the clogged prefilter. 1. Reduced pressure ❑ The prefilter is clogged. entering the unit. ▪ Clean the distributors. Add a prefilter to 2. The upper and/or ❑ Foreign matter from the input lines is lower distributors accumulating in the distributors. -
Page 24: Parts
Compact Commercial Softener Owner’s Manual PARTS Complete Valve Level One Cap Screw (8) ......1010 Cap ........9044B Actuator O-ring ....... 1460 Actuator ........ 9284A Cap Seal ......... 8628 Meter Disc 1 ......1504 Disc 2 ......1505 Disc 3 ......1506 Disc 4 ...... - Page 25 Gearing Nozzles Regeneration Gearing Micro Nozzle 0.05 gpm – 5 gpm......... 10880B ½ Louver Nozzle CC 206s CC 206c/h CC 208s Meter Gearing CC208c/h 0.3 – 25 gpm ........... 11018 Full Louver Nozzle 4 Stack Meter Gearing 0.7 – 40 gpm ........... 11019 Unit (Gallons) Stem Gear...
- Page 26 Compact Commercial Softener Owner’s Manual Level 2 Level 5 206/208(s) 206/208(c/h) Vent Tube ........ 1480 Drain Valve Quad Ring ..8187A ....1590 Level 2 ........8784D Drain Valve ..... 15129A ....7872A Brine Flow Control CC 206 (0.3 gpm) ....10546 CP 208 (0.4 gpm) ....
- Page 27 Media Tanks, Distributors and Riser Tubes Brine Valve ⅜” x ⅜” Tube Union ......... 9210 Upper Distributor ........9251 Bent Tube CC 206c/h .......... 11549A 12x20 Brine Tank ........7899 18x35 Brine Tank ........7802 Media Tank CC 206s ..........7224B CC 206c ..........11540B Well Cover CC 208s ..........11107B...
- Page 28 Salt Shield ..........11550 Grid Support..........8706 Salt Shield Screw ........12507 Tank ............11853 Cabinet ..........11546A Brine Well ..........7918A KineticoPRO Logo ......... 17526 Grid Plate ..........11547 Overflow Nut .......... 1139A Overflow Elbow ........1138A Caster ..........11977A Washer ..........11527 Rubber Feet ..........
- Page 29 Notes:...
- Page 30 Compact Commercial Softener Owner’s Manual Notes:...
- Page 32 Owner’s Manual Compact Commercial Series © 2021, Kinetico Incorporated Corporate Headquarters 10845 Kinsman Road Newbury, Ohio 44065 www.KineticoPRO.com Product No. 11524H Rev. 06.02.2021...
