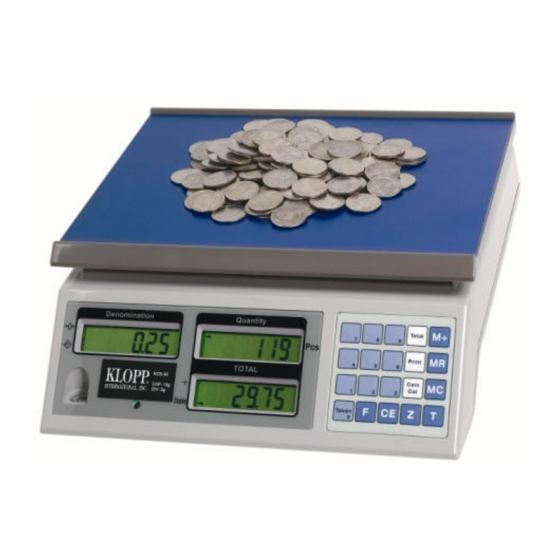

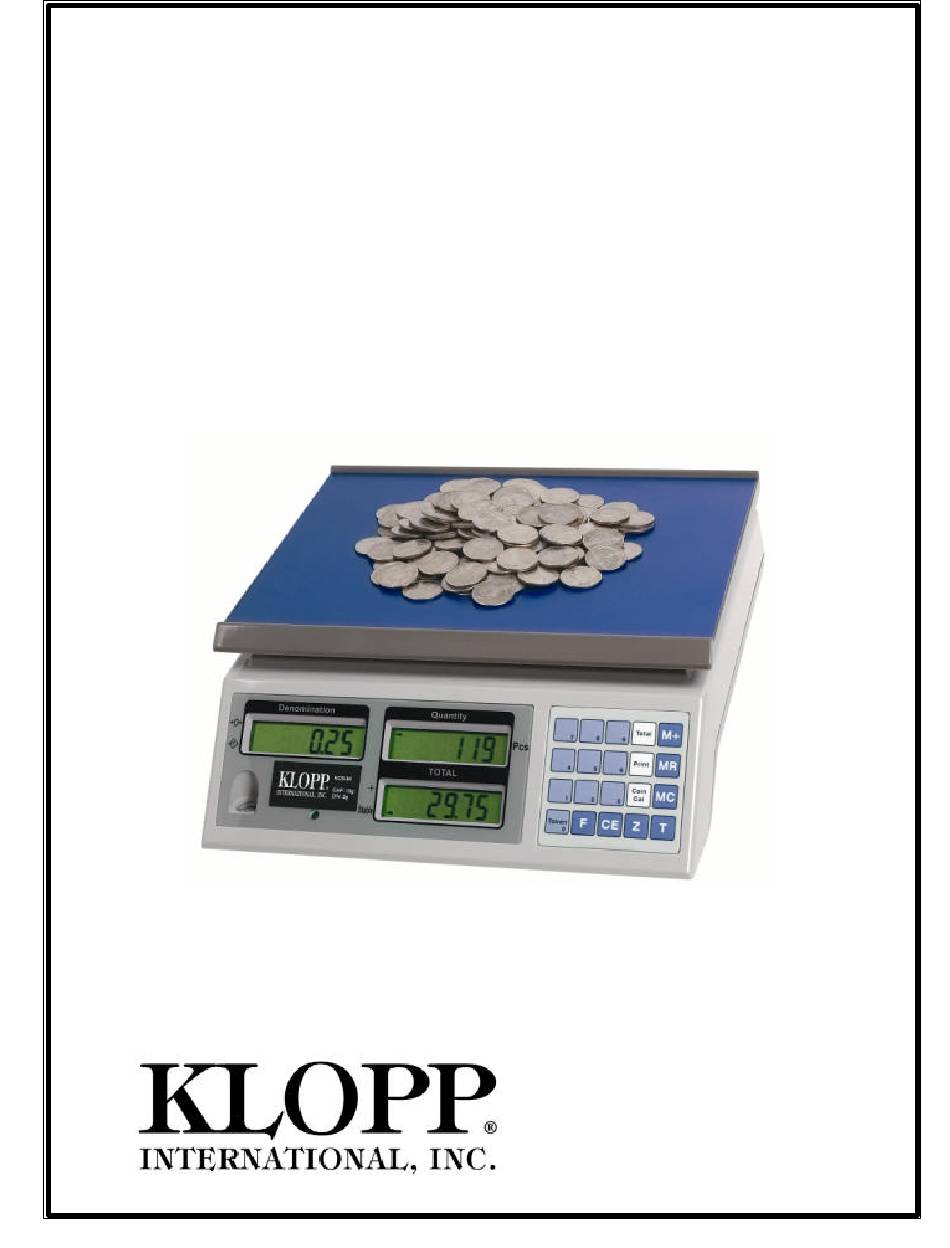

- Page 1 "KCS SERIES" COIN COUNTING SCALES 215 Vollmer Avenue P.O. Box 985 Oldsmar, FL 34677-0985 Tel: 813/855-6789 Fax: 813/854-3069 sales@kloppcoin.com...
-
Page 2: Table Of Contents
"KCS SERIES" - COIN COUNTING SCALE USER MANUAL CONTENTS: Page Features, Specifications ......Warranty, FCC Rules ...... -
Page 3: Features, Specifications
"KCS SERIES" – COIN COUNTING SCALE Features • Auto calibration • Programmable Unit Weight and Denomination • 10 preset keys for coins, tickets or tokens denomination • 3 bright displays for Quantity / Denomination / Total Value • Total value calculation •... -
Page 4: Warranty, Fcc Rules
If repair under warranty is confirmed by KLOPP International Inc., then the product will be repaired (or replaced at the discretion of KLOPP International Inc.) and returned to the customer at no extra cost. -
Page 5: Scale Unpacking Instructions
SCALE UNPACKING INSTRUCTIONS Unpack the scale carefully and keep the packing material if you are likely to transport the scale again in the future. In the carton you should find this manual plus: • The Counting Scale and Platter • An AC/DC adapter (check that the AC input rating is correct) •... -
Page 6: Best Conditions For Weighing
Earth ground the scale chassis for electrostatic discharge if the weighing conditions warrant. CALIBRATION KLOPP International Inc. has already done the calibration setup for your KCS Scale. Please see Page 17 for calibration information. HOW THE SCALE COUNTS The KCS Scale counts by knowing the weight of one piece, called the unit weight, then applying it to the total weight of what you are trying to count. -
Page 7: Keypad Functions
KEYPAD FUNCTIONS ≈ Keys used for entering unit weights of coins and tokens in “Coin Cal” mode. ≈ Selects pre-programmed “denomination to be counted” keys. Select token counting mode key. Note: The total accumulation window does Token not function in this mode. Also, use this key to enable/disable display screen backlight by holding it down until the scale beeps. -
Page 8: Setting Token Unit Weight Mode
SETTING INDIVIDUAL UNIT WEIGHTS FOR NUMERIC KEYS TOKEN UNIT WEIGHT MODES Pressing the Coin Cal key will display the following: Note: If no other key is pressed, the scale will return to counting mode in 10 seconds. Press the “0” key four times. The display will show the following: Note: If no other key is pressed, the scale will return to counting mode in 10 seconds Pressing the... - Page 9 Use the above procedure to set all the denomination and token unit weights. Upon completion, all denominations settings are saved by pressing the key. The scale will display zero in each window. Power the scale off, then on, to save settings. To print all denominations of unit weight, press the key.
-
Page 10: Setting Denomination Unit Weight Modes
SETTING UNIT WEIGHTS MODES Pressing the Coin Cal key will display the following: Note: If no other key is pressed, the scale will return to counting mode in 10 seconds. Press the “0” key four times. The display will show the following: Note: If no other key is pressed, the scale will return to counting mode in 10 seconds. -
Page 11: Preset U.s. Coin Settings
Use the above procedure to set all the denomination unit weights. Upon completion, all denominations settings are saved by pressing the T key. The scale will display zero in each window. Power the scale off, then on, to save the settings. To print all denominations of unit weight, press the PRINT key. -
Page 12: Accumulation Function
ACCUMULATION FUNCTION Accumulation (In counting mode) To select a denomination value, use the keys thru . Place coins of the same value on the platter or in a coin scoop. The following will be displayed: When the scale becomes stable (see arrow at bottom of “Total” window), press the key. -
Page 13: Recall Accumulation
RECALL ACCUMULATION If there is an accumulation of data in memory, it will be indicated in the “Total” display window. Press the key. It will display “Accumulated data” and “Total Accumulated Data” in sequence. Press the key one time. It will show the first accumulated data. Note: If no other key is pressed, the scale will return to counting mode in 10 seconds Press... -
Page 14: Clearing Accumulated Value
CLEARING ACCUMULATED VALUE If there is accumulation data in memory, it will be indicated in the “Total” window. Press to clear accumulated data. The accumulation indicator will disappear at the “Total” display window. Wiring the RS232 25-Pin DIN Connector Pin Outs Pin 1 Pin 11 Pin 2*... -
Page 15: Print Function
PRINT FUNCTION 1. In the counting mode, when the scale is in stable, pressing the M+ key will transmit dadata to be printed. The print format is as follows: Record Denomination 0.01 Quantity Amount 0.51 2. To see totals of all accumulated data in memory of all items stored, press the Total key. -
Page 16: F" Key Function Description
“F” KEY FUNCTION DESCRIPTION Press the M+ key and hold. Until F1 is displayed in the Denominations window Power the counting scale on. The scale will count back to zero and enter “Function Setting Mode”. Press the T key in sequence. The Denomination display will show F1 thru F9 in a display window. -
Page 17: Error Messages
inside the scale. To locate, remove the four case screws found on the bottom cover of the scale. Separate the bottom case from the top case. The display board will be exposed. Error Message Chart: 240000 320000 524287 A to D Value power on zero (Normal) Before adjusting linearity and completing weight calibration, the internal value counts... -
Page 18: F2 Baud Rate Setting
Baud Rate Setting Press the 0 key to display the prior setting value. Press the T key to select the required baud rate of 300, 600, 1200, 2400, 4800, or 9600 in the circle. Press the M+ key to save and store the selected baud rate. The scale will automatically count back to zero, finishing the baud rate setting. -
Page 19: F3 Weight Calibration
Weight Calibration Press the 0 key. It will change to Use the thru keys to key in the established kg calibration weight amount (6.000, 12.000, 15.000 kg). This amount is determined by the capacity of the scale. Place full capacity weights on the platter. When the scale indicates “stable”, the scale will automatically enter into weight mode and finish the weight calibration. -
Page 20: F4 Security Access Code
Security Access Code Before entering the Coin Cal function, key in 4 digits to establish the security access code number. The factory setting is “0000”. Use the following procedure to reset. Press the 0 key to show the prior setting value. Use the 1 thru 9 keys to input the new security access code number. -
Page 21: F5 Asc Ii Code Symbol Settings
ASC II Code Symbol Settings The coin symbol is set by ASC II code numbers as follows. “$” = ASC II code 24 Press the 0 key. It will show the present setting value. Use the keypad digit code numbers to ASCII code chart symbol as desired. Press the appropriate key following the ASCII code table list for reference. -
Page 22: F6 Denomination Setting
Denomination Setting Digits 0 thru 9 or total for 10 key pad locations can be set with 10 different types or amounts, denomination, values (Example 0.50¢, 1.00, etc). Use the T key to move from F1 to F6. Press the 0 key. To use digit 0 , 1 , 2 key to key in decimal point 0 (no decimal point), or 1 (1... - Page 23 Press M+ to save. After completing the setting, press the F key and the scale will count back to zero, saving the setting. Examples: Denomination 0 => If there is no decimal points used, the value will key in as (200.) Denomination 1 =>...
-
Page 24: F7 Linearity Calibration
Linearity Calibration The linearity setting is selected by using four points along a weighing sequence. Press the T key and move to F7 Display in the denomination window. Remove the platter from the scale and set aside. Press the 0 key. Replace the platter on the scale. - Page 25 Press the F key to record the second linearity point. When the scale is stable, (Denomination display 3 L.), place the third weight 10kg on the pan. Press the F key to record the third linearity point. When the scale is stable, take off the weight on the pan before the scale counts back to zero.
-
Page 26: F8 Specification Setting
Specification Setting Press the T key and move to display in the Denomination window. This procedure is used to set the internal values for the key pad and setting the capacity and min graduation of the counting scale. Press the 0 key. Entering to keyboard test mode. Press the M+ key. - Page 27 Press the M+ key and the scale will count back to zero. The scale specification setting is completed.
-
Page 28: F9 Weight Calibration
Weight Calibration (Set at Factory) Press the T key to move to the F9 display in the Denomination window. Press the 0 key. NOTE: Make sure there is no weight on the platter. Press the M+ key when the scale is in stable. The weight display will show full capacity value.
