Summary of Contents for SmartRoom SR-ZTPWBPW-I001-01

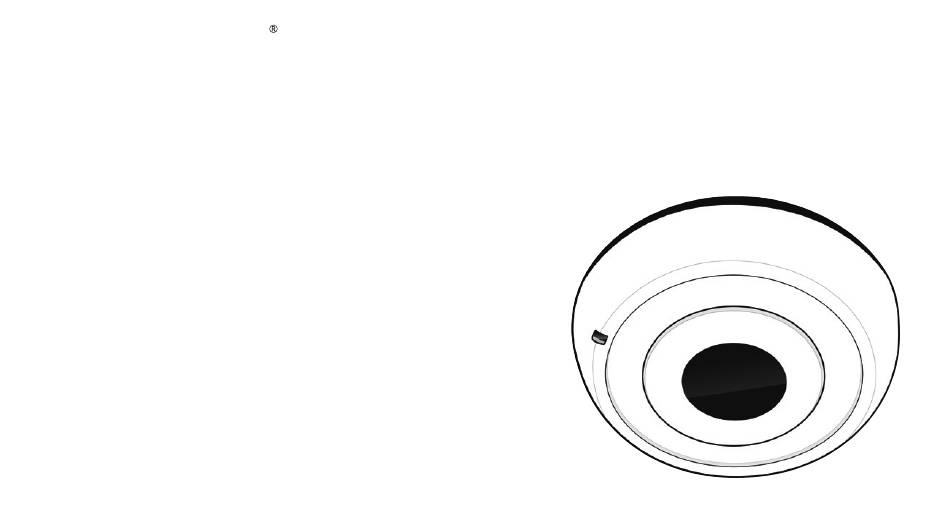

- Page 1 SmartRoom Wireless IR Transmitter Quick Guide Please refer to the software instruction manual or download the Software Download Guidance for more information if it is necessary.
- Page 2 Copyright © Nanjing IOT Sensor Technology Co.,Ltd. 2014 Publication Number：2014-1129.V1 The manual is issued by Nanjing IOT Sensor Technology Co., Ltd. It is without warranty. We reserve the right to change and modify misprinted and incorrect information and improve programs or devices at any time without notice. Such modifications will be written in the new- edition of the manual.
- Page 3 Trademark SmartRoom, IOT Sensor, Wulian are all the registered trademarks of Nanjing IOT Sensor Technology Co., Ltd. Usage of these trademarks is strictly prohibited without the written authorization and permission from Nanjing IOT Sensor Technology Co., Ltd. Legal action will be taken against unauthorized use of these trademarks.
-
Page 4: Basic Function
Basic Function Cute appearance, easy to install New technology and humanized design, easy to operate Control home devices anywhere and anytime through mobile smart terminal... -
Page 5: Function Illustration
Function Illustration System SET Key Indicator Light Magnet Cell Box Base IR Detection Zone Main Body Front Side Main Body Back Side... -
Page 6: Installation Steps
Installation Steps 1. The product supports ceiling mounted, wall mounted and also can be placed on the fixed plane. Ceiling Mounted Wall Mounted Fixed plane... - Page 7 Installation Steps 2. When it is mounted on the wall or top ceiling, fix the Base with two Expansion Screws in advance. As is shown in the following graph. Base Expansion Screw Screw Wall& Top Ceiling...
- Page 8 Installation Steps 3. Remove the Lid of Cell Box, input 1 CR2 Battery and attach the lid. CR2 Battery Lid of Cell Box Main Body Back Side...
- Page 9 Installation Steps 4. Attach the Main Body with the Base and adjust to the suitable angle. Installation is complete. Wall& Top Ceiling...
-
Page 10: Networking Setting
Networking Setting 1. Please make sure the gateway(additional purchase) ZigBee network is working and this product has power within effective communication distance of gateway before setting. Attention: for more details please refer to wireless gateway instruction. - Page 11 Networking Setting 2. Press SET Key 4 times to join ZigBee network. System Indicator Light stays flickering when searching network. Upon successful connection, System Indicator Light will stay lit in 2 seconds and then goes off. Press SET Key 4 times quickly. System Indicator Light flickers Each press must be done within 0.7 second when searching ZigBee network,...
- Page 12 Networking Setting 3. Press SET Key 10 seconds to restore to factory setting and exit ZigBee network. Press Multi-Functional Key 10 seconds System Indicator Light flickers 4 times and then goes out Main Body Front Side Main Body Back Side （When it restores to factory setting, the product exits ZigBee network by default.）...
- Page 13 Usage 1. When the transmitter joins in ZigBee network, users can directly choose the device needed to control (for example TV or air-conditioner) on smart mobile terminal. 2. The transmitter automatically searches the controlled device code and record the code. Users are able to control the device through smart mobile terminal without configuring manually.
-
Page 14: Product Standard
Product Standard Communication Way IEEE802.15.4（ZigBee） Communication Distance 100m(visible) Control Distance Power Supply 1×CR2 Battery Working Temperature -10℃～+45℃ Weight 250g Net Weight 105g Color Various materials and colors are offered... -
Page 15: Ordering Information
Ordering Information Ordering Name Wireless IR Transmitter Model SR-ZTPWBPW-I001-01 Art. No SRPN140929001 Package Size 90x70x40mm... - Page 16 B11 Software Valley, NO.15, Fengji Avenue, Yuhuatai District, NanJing Service hotline ：400-928-9288 www.wulian.cc/english/...
