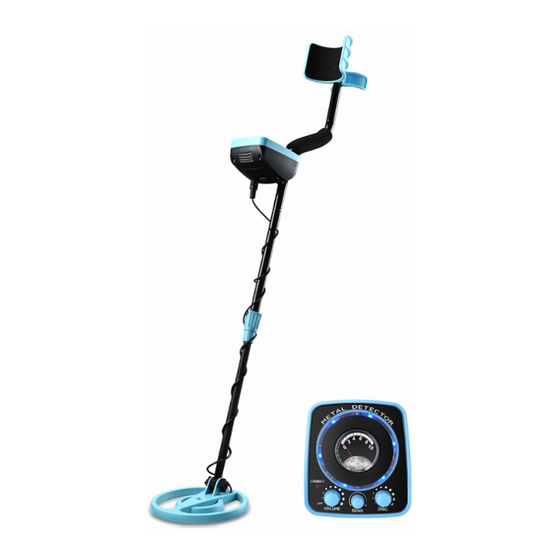

- Page 1 OWNER’S MANUAL MODEL GC-1065 Please read before using this equipment Metal Detector...
- Page 2 FEATURES With your Metal Detector, you can hunt for coins, relics, jewelry, gold, and silver just about anywhere. This metal detector is versatile and easy to use. The detector’s features include: Two Operation Modes: ALL METAL, DISC ALL METAL—lets you search for all kinds of metal with auto ground balance and high sensitivity.
- Page 3 Depress the spring clip in the middle stem and insert it into the top stem(1) aligning the clip with the hole. Loosen the middle stem’s lock nut in the direction of the arrow. Then insert the lower stem (2) into the middle stem.
- Page 4 desired angle. (The search coil should be parallel with the ground.) Tighten the knobs just enough to keep the search coil from rotating or wobbling. INSTALLING BATTERY You need one 9V alkaline battery to power your detector. Cautions: Use only fresh battery of the required size and recommended type. 1.
- Page 5 detection results. To connect earphones to the detector, insert the earphones’ 3.5mm plug into the EAR jack on the control box. Note: The detector’s internal speaker disconnects when you connect earphones. LISTENING SAFELY To protect your hearing, follow these guidelines when you use earphones. Set the volume to the lowest setting before you begin listening.
- Page 6 and clockwise to eliminate different trash objects. Rotate the control counter clockwise to the end to get ALL METAL mode. All METAL also comes with auto ground balance. It’s used to find not only ferrous metal, but also non-ferrous one (see more details below).
- Page 7 DISC setting. Setting of DISC Metal Rejected. Near 11:00 Iron Near 12:00 Nickel coin(5¢), pull tab Near 13:00 Zinc coin(1¢ 87 version) Near 15:00 Copper coin (1¢ 76 version) When the DISC control is set to the clockwise end most of metal is rejected, except silver(25¢,50¢...
- Page 8 enjoy it for years. Handle the detector gently and carefully. Dropping it can damage circuit boards and cases and can cause the detector to work improperly. Use the detector only in normal temperature environments. Temperature extremes can shorten the life of electronic devices, damage the cases of the detector.
