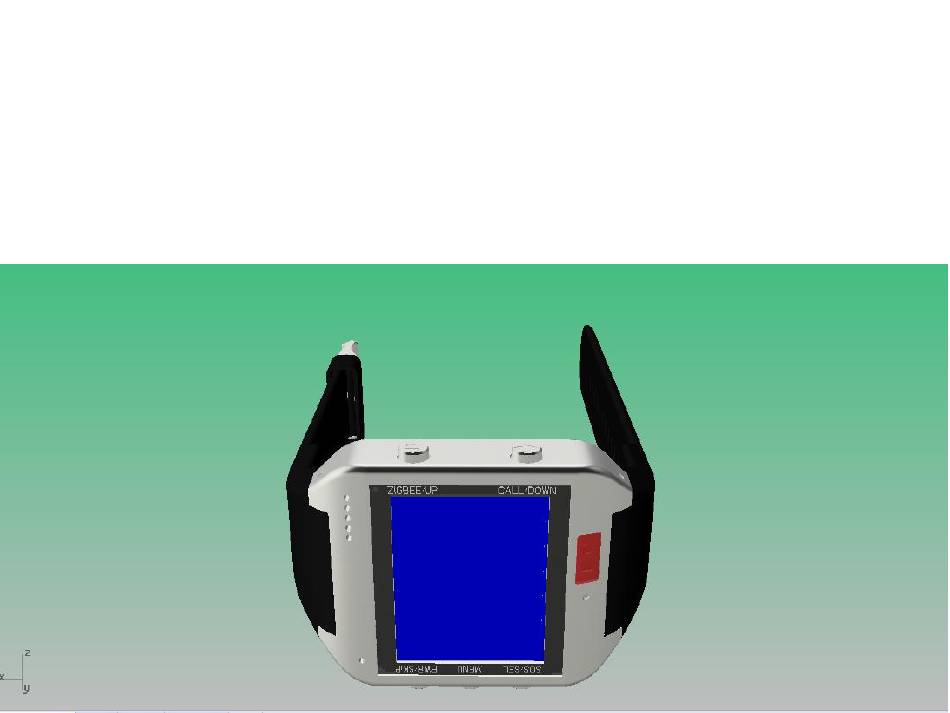

ADWAT102C WATCH USER
MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADWAT102C and is the answer not in the manual?

Questions and answers

Related Manuals for VESAG ADWAT102C

Summary of Contents for VESAG ADWAT102C

  • Page 1 ADWAT102C WATCH USER MANUAL...
  • Page 2 ACTIVATION PROCESS • Goto http://www.vesag.com/ • Click on New user link which is next to login. • Enter the given customer id and press tab so that the mobile no, username and email id will pop up. • Change the username to a new username, enter password, verify password and enter the three security questions and answers and the call in password which is used for call centre purpose.(Make sure you note...

  • Page 3: Table Of Contents

    CONTENT I. GENERAL Notices About the Watch Product Features Product Specifications Others II. USAGE PREPARATIONS Accessories Appearance and Interface Interface Definition III. BATTERY USAGE Charge the Battery Notice IV. OPERATION METHOD OF BASIC FUNCTIONS Setting Up The Watch Location Inquiry Adjust Receiver Volume Function Settings Zigbee Interface...

  • Page 4: General

    I.GENERAL o Vesag watch is a perfect combination of CDMA and GPS technologies. This model, with its precise dimensions and compact appearance, expresses the advanced workmanship in the CDMA and GPS field. It is a typical design combining communication products and GPS services.

  • Page 5: Notices

    1.1.NOTICES • Please read this user manual carefully and always use correct operation methods to prevent any possible errors. • This user’s manual is for reference only. If some contents and operation steps are inconsistent with those for the actual product, the latter will prevail.

  • Page 6: About The Watch

    1.2.ABOUT THE WATCH • Vesag watch as a personal remote positioning device made up of GPS module and CDMA module, is compact in dimensions with high accuracy. This watch is portable and one can wear it on the wrist or as a pendant. The location of the wearer can be tracked with this watch through the built- in GPS tracker.

  • Page 7: Product Features

    1.3.PRODUCT FEATURES • Inbuilt GPS Module • Internet positioning service center, used to receive and send positioning information • The modem supports Quad frequency bands, i.e. CDMA Band Class 0 and Band Class 1. • High-sensitivity, new workmanship and the most advanced GPS chip •...

  • Page 8: Product Specifications

    1.4.PRODUCT SPECIFICATIONS Wireless module: Telit DE910 DUAL 800/1900 MHz 1xRTT and EV-DO Rev. A support. GPS: GPS One, Standalone GPS and GLONASS support. Software based Wi-Fi and Cell tower triangulation. Short Range Wireless: Texas Instruments CC2530 ZigBee System on chip. Interacts with any ZigBee Pro devices Processor and Memory: ARM Cortex M3, 32Bit 72MHz frequency, 512K flash memory and 2MB EEPROM.
  • Page 9 II.USAGE PREPARATION...

  • Page 10: Accessories

    2.1.ACCESSORIES • Main unit • USB cable • Charger • Headset cable (optional) • Battery...

  • Page 11: Appearance And Interface

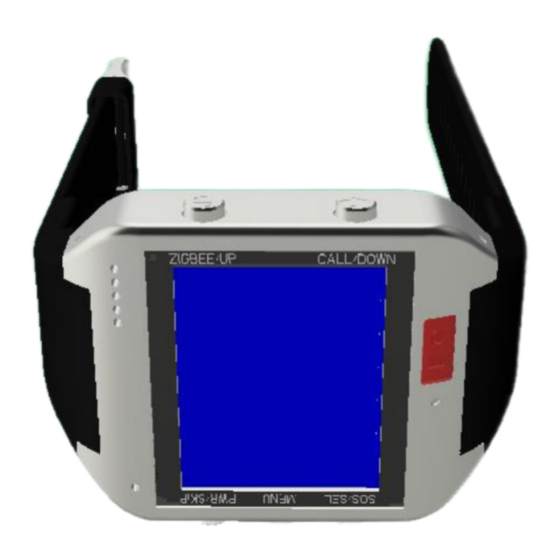

    2.2.APPEARANCE AND INTERFACE Appearance and Buttons • Five buttons are equipped with this watch. • The bottom left and right buttons are for emergency SOS(RED button) call centre(GREEN button) respectively. • The upper left button is to switch-on and hold-on. •...

  • Page 12: Interface Definition

    2.3.INTERFACE DEFINITION • CDMA and GPS signal strength is indicated on the upper left corner of the main interface . • The middle left button is used to switch among interfaces like (Analog/Digital/Menu). • The display or wallpaper would be the time in digital or analog model as shown in the picture...

  • Page 13: Battery Usage

    III.BATTERY USAGE...

  • Page 14: Charge The Battery

    3.1.CHARGE THE BATTERY • Please use up the battery until its discharged and then charge the battery for at least 12 hours for initial use in order to keep the quality of the battery. • The normal charging time of this product is 4-5 hours.

  • Page 15: Notice

    3.2.NOTICE • Always use the charger offered by the supplier. Dangers or damages of the product caused by usage of any unconfirmed charger will not be compensated and repaired. • The battery should be charged in time before the terminal automatically shuts down or being alarmed with low power.

  • Page 16: Operation Method Of Basic Functions

    IV.OPERATION METHOD OF BASIC FUNCTIONS...

  • Page 17: Setting Up The Watch

    • When an emergency button is pressed, an alert will be sent to the Emergency team and the customer’s next of kin. • The Emergency and the VESAG Call center team would be available 24/7.

  • Page 18: Location Inquiry

    4.2.LOCATION INQUIRY • The location information is always displayed on the screen of the watch with latitude and longitude. • When the sos button is pushed, the call center will immediately contact the caller and give their location information. This will be passed to the caller’s next of kin as well if required.

  • Page 19: Adjust Receiver Volume

    4.3.ADJUST RECEIVER VOLUME • The upper and bottom right buttons are used to adjust the receiver volume while on a call. 4.4.FUNCTION SETTINGS • Function settings include: Zigbee, Alarm, Time zone and ECG. • Enter setting interface by pressing the menu button(middle left) for twice. •...

  • Page 20: Medicine Reminder

    4.6 MEDICINE REMINDER • One can view the alarm or the groups of alarms which are set through the web portal and also check the medicines added to a particular group of alarm number by selecting with the red button and scrolling down the menu using the buttons on the right hand side.

  • Page 21: Time Zone

    4.7 TIME ZONE • The time can be selected according to GMT of your country. • The red button can be used to select the appropriate GMT and the buttons on the right hand side can be used to scroll up and down to select.

  • Page 22: Ecg Interface

    • The ECG pan ID/SN is shown on the screen when ECG is selected from the menu and a VESAG ECG device pairs up with the VESAG watch. • Once the zigbee is ON and when a request is sent to ECG by selecting...

  • Page 23: Low-Voltage Alarming Functions

    4.9.LOW-VOLTAGE ALARMING FUNCTION • If the watch has very low power and needs to be charged, an alarm would be sent immediately as follows. • Battery is low, Please charge in time! • This can be activated in the application by logging in with your username and password.
  • Page 24 NOTICE • This device is of non-waterproof design. This device work with the cooperation of CDMA network. • • Make sure that the SIM card has sufficient balance in order to avoid inconvenience in use. • This device will not be able to work in case of power-off and out of the service area, even if you are a registered user.
  • Page 25 • Time: demonstrations have been done to my full • Signature of the customer: satisfaction and that I am totally satisfied • Customer name: with the installations and performance of • Address: the VESAG watch. • Installed by: • Telephone:...
  • Page 26 Warranty • This warranty is confined to the first purchaser of the product only and within 12 months from the date of purchase. • Repair or replacement will be carried out through the Company's Service Centres (Refer the website) or it's Authorized Service Centres or it's Dealer's Service Centres.
  • Page 27 • THIS WARRANTY IS NOT APPLICABLE IN ANY OF THE FOLLOWING CASES: • Customer is enrolled into current VESAG service plan and his subscription expiry date is beyond 15 days. • The completed warranty card is not presented to authorized personnel at the time of repair.
  • Page 28 FCC Statement SAR: The device complies with RF specifications when the device used at 0mm from your body. SAR Max.values: 1.85 W/Kg (10g) for extremity; 0.85 W/Kg (1g) for next to mouth. 1.861 W/Kg of The Highest simultaneous SAR value...
