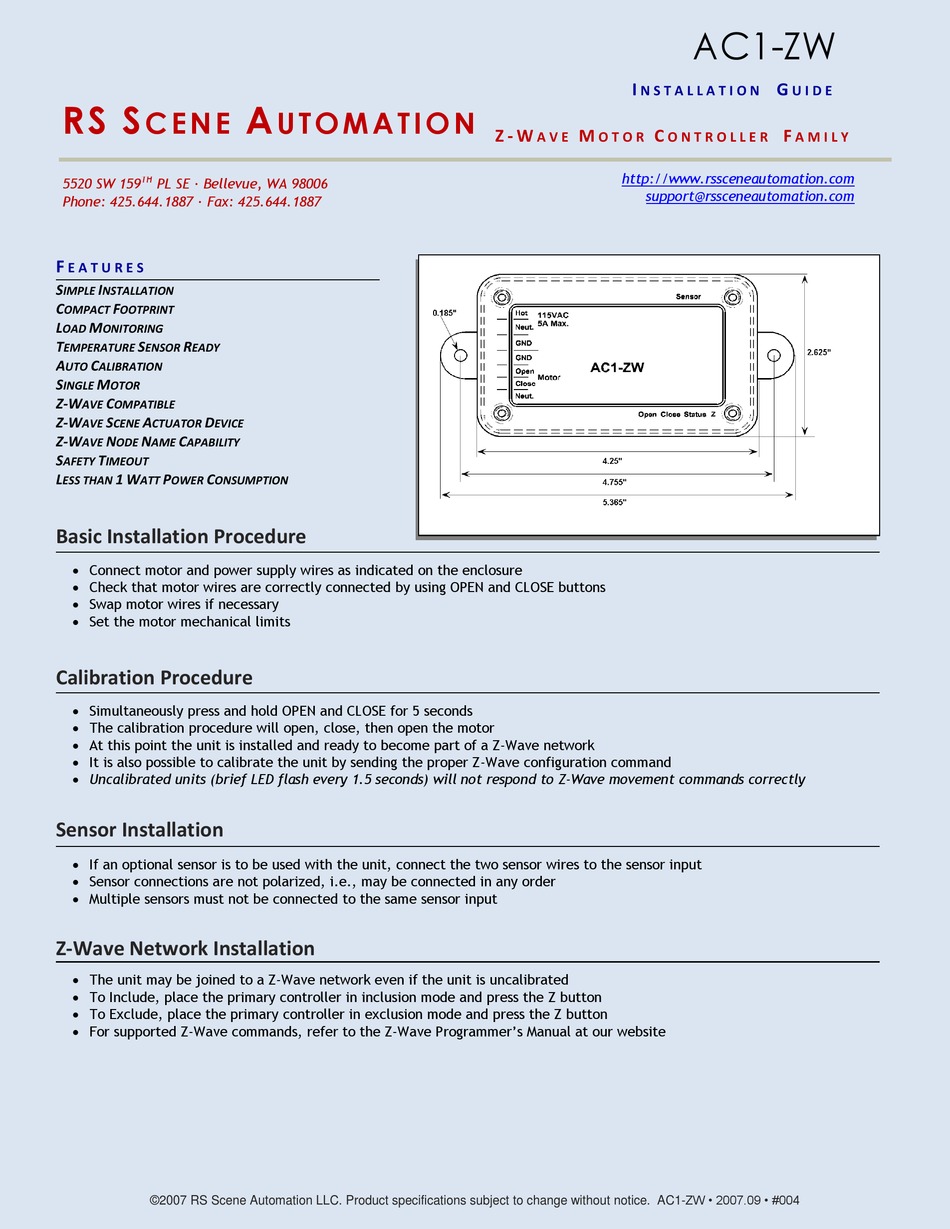

RS Scene Automation AC1-ZW Installation Manual

RS S
C E N E
TH
5520 SW 159 PL SE ∙ Bellevue, WA 98006
Phone: 425.644.1887 ∙ Fax: 425.644.1887
F
E A T U R E S
S I
IMPLE NSTALLATION
C F
OMPACT OOTPRINT
L M
OAD ONITORING
T S R
EMPERATURE ENSOR EADY
A C
UTO ALIBRATION
S M
INGLE OTOR
Z-W C
AVE OMPATIBLE
Z-W S A D
AVE CENE CTUATOR EVICE
Z-W N N C
AVE ODE AME APABILITY
S T
AFETY IMEOUT
L 1 W P C
ESS THAN ATT OWER ONSUMPTION

Basic Installation Procedure

 Connect motor and power supply wires as indicated on the enclosure
 Check that motor wires are correctly connected by using OPEN and CLOSE buttons
 Swap motor wires if necessary
 Set the motor mechanical limits

Calibration Procedure

 Simultaneously press and hold OPEN and CLOSE for 5 seconds
 The calibration procedure will open, close, then open the motor
 At this point the unit is installed and ready to become part of a Z-Wave network
 It is also possible to calibrate the unit by sending the proper Z-Wave configuration command
 Uncalibrated units (brief LED flash every 1.5 seconds) will not respond to Z-Wave movement commands correctly
Sensor Installation
 If an optional sensor is to be used with the unit, connect the two sensor wires to the sensor input
 Sensor connections are not polarized, i.e., may be connected in any order
 Multiple sensors must not be connected to the same sensor input

Z-Wave Network Installation

 The unit may be joined to a Z-Wave network even if the unit is uncalibrated
 To Include, place the primary controller in inclusion mode and press the Z button
 To Exclude, place the primary controller in exclusion mode and press the Z button
 For supported Z-Wave commands, refer to the Z-Wave Programmer's Manual at our website
©2007 RS Scene Automation LLC. Product specifications subject to change without notice. AC1-ZW • 2007.09 • #004
