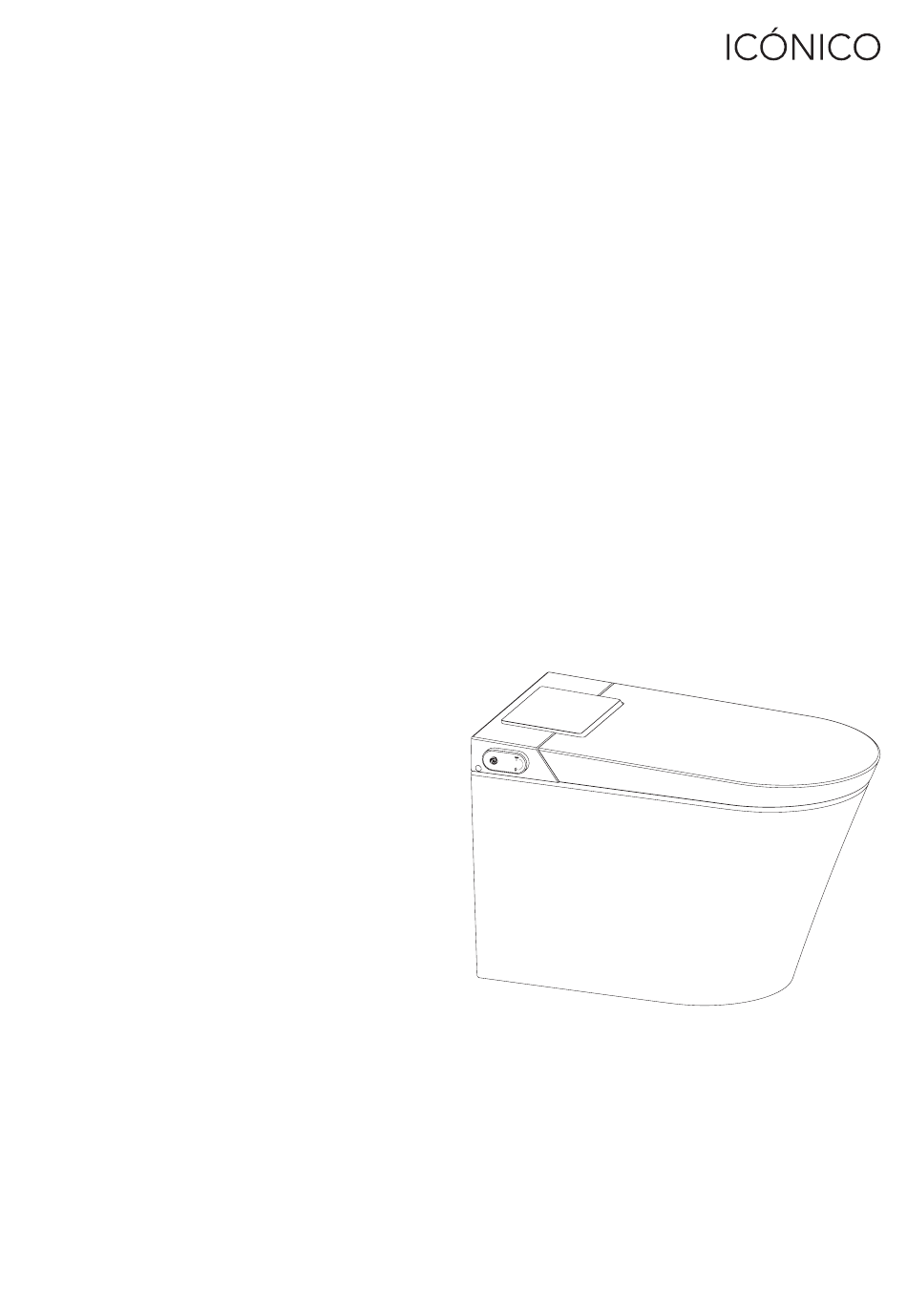

- Page 1 Installation and user manual WC2 WC 2 Installation and user manual www.iconico.es hola@iconico.es...
- Page 2 www.iconico.es...
- Page 3 Installation and user manual WC2 Please, read carefully the instrucctions of this manual before installation and keep it available for future maintenance or reference.
- Page 4 www.iconico.es...
- Page 5 Installation and user manual WC2 INDEX 1. Symbol’s key 2. Safety instructions 2.1 Normal use 2.2 General advices and warnings 2.3 Important points regarding the use of batteries 3. Box content 4. Installation 4.1 Precautions before installation 4.2 Confirmation before installation 4.2.1 Space structures 4.2.2 Water pressure 4.2.3 Installation drawing...
-
Page 6: Symbol's Key
1. Symbol’s key DANGER Not following this danger indication puts user in risk of death. WARNING You will be exposed to a dangerous situation if you don’t follow strictly the warning indications. CAUTION You might get injured or inflict damages to the direct environment of the toilet if you don’t follow the caution indications. - Page 7 Installation and user manual WC2 WARNING Avoid product failure and damage caused by improper use. The cold water inlet should be connected from the water supply mains. Do not connect to any source of wastewater, mixed water, industrial water, sea water or any other untreated or semi-treated water.
- Page 8 CAUTION • Do not bypass the safety device placed on the power cord. It is protecting the unit from electrical damage. • Please close the water supply angle valve before disassembling the filter. Be sure to tighten the angle valve to prevent water leakage when installing the filter after cleaning.
-
Page 9: Box Content
Installation and user manual WC2 3. Box content Complete toilet set Remote Filter Sludge seal ring Warranty Angle valve filter & Installation Manual decorative cover Battery box Batteries for the remote... -
Page 10: Precautions Before Installation
4. Installation 4.1 Precautions before installation lnstallation space: • Please make sure before planning that you can properly open and close any nearby doors. • The distance of the inlet pipe from the ground should be more than 150mm. - Page 11 Installation and user manual WC2 4.2.3 Installation drawing: (mm) 4.3 Installation 4.3.1 Installing of sludge and ceramics 1. Put the sludge seal ring on the sewage outlet and seal it as shown in Figure 1. 2. Connect the ceramics sewage outlet to the sewage outlet and press the sludge as Figure 2.
- Page 12 4.3.2 Connect to water supply pipe 1. Disassemble the old water supply angle valve and install the water supply angle valve supplied with the toilet. Close the main angle valve before disassembling. 2. Install the angle valve filter and the decorative cover of the angle valve to the proper position, then open the angle valve to drain for 1 minute until the water looks clean (use a container for the water that will go out).
-
Page 13: Battery Installation
Installation and user manual WC2 4.3.3 Affixing the toilet Once the toilet is connected to the sewage and properly placed, smear the adequate type of silicone all along the gap between the bottom of the ceramics and the floor to prevent water seepage. - Page 14 4.3.5 Installation of the remote 1. Peel the protective tape of the foam tape on the back of the bracket and stick it on the desired surface. 2. Open the back cover of the remote and install 3 new AAA alkaline batteries.
-
Page 15: Connect The Power Supply
Installation and user manual WC2 4.3.6 Watter connection check 1. Open the water supply angle valve. 2. Make sure there is no water leakage at every joint. lf water leaks, retighten the nut and install it again. 4.3.7 Connect the power supply 1. - Page 16 5. Overview 5.1 Toilet Toilet cover Safety instructions Back cover Control lever button Seat sensor Air trap Filter Washing nozzle Angle valve Heating seat Water supply pipe Ceramics Control lever button Front wash/front tube position Stop/Flush/Dry Rear wash/back Note: tube position Regarding the appearance &...
- Page 17 Installation and user manual WC2 5.2 Remote Front wash/Cold & hot massage Rear wash/Strong & weak massage Gear position + On/Off/Stop Tube position Gear position - Setting Indicator light of gear position Seat temp. Water temp. Water pressure *Cover flip Night Flush/Store water light...
- Page 18 6. Sidebutton On/Off/Flush/Dry Rear wash/tube position adjust • Press the button for about 2 seconds • Rotate up to start the rear wash to turn on the toilet. function. The main button’s orbital light will turn blue. The function will •...
- Page 19 Installation and user manual WC2 7. Remote operation procedures Stop • When it is power off, press for about 2 seconds to turn the toilet on. • When it is power on, press for about 2 seconds to turn the toilet off. •...
- Page 20 Tube position adjust When you're washing Press the [Pressure] button, come into the mode of water pressure adjustment. Press [Gear position+] button to move the tube position toward. Press [Gear position-] button to move the tube position backward. [Gear position indicator light] will display the current gear position.
-
Page 21: Energy Saving
Installation and user manual WC2 Long press the [SPA] button for more than 2 seconds to start SPA function when the user is seated Short press the [Stop] button to stop the SPA function, whenever you want. Otherwise, it will continue cleaning for about 5 minutes, followed by the drying function automatically. -
Page 22: User Function
Setting of automatic drying Factory settings Press and hold the [Setting] button, then press the [Dry] button to turn on/off the automatic drying function. When this function is off, it will not change to the drying function automatically after the cleaning function ends. - Page 23 Installation and user manual WC2 Manual flush 1. Short press the flush button on the remote 2. Short press the flush button on the toilet lever 3. Gently kick the right side of the toilet, near the sticker. Flush time adjust Press and hold the side flush button or hold down the side lever for 8s to enter into the flushing time adjustment function and adjust the pulse valve time.
-
Page 24: Cleaning And Maintenance
8. Cleaning and maintenance Please clean and maintain the product regularly to assure the best condition of the product. Note: • Please unplug the unit, close the water supply angle valve and stop the water supply mains before maintenance. - Page 25 Installation and user manual WC2 WARNING Antifreeze procedure in winter (when the ambient temperature is below 1 ºC) Please don’t drop water inside the toilet or over the • First close the water supply angle valve, remote. then press the flush button in the remote to Please avoid the toilet and connections perform a drainage.
- Page 26 Toilet battery replacement 1. Loosen the screws that secure the battery cover, remove the old battery, and dispose it according to your country’s regulations. 2. Place the new battery, make sure you are orienting the positive and negative poles properly and lock the box with the screw as the shown picture.
-
Page 27: Common Fault Diagnosis
Installation and user manual WC2 9. Common fault diagnosis lf something goes wrong, please read the following to try to solve the problem. lf can't solve, please contact to seller. Power switch Fault Failure analysis Solution The product doesn’t work Check whether the socket is Connect properly connected... - Page 28 Drying/air temperature Fault Failure analysis Solution Drying with cold air Check the air temperature setting Adjust the air temperature according to the manual Seat temperature Fault Failure analysis Solution No seat heating/low Check seat temperature setting Adjust the seat temperature...
-
Page 29: Common Problems
Installation and user manual WC2 Other Fault Failure analysis Solution Unproper cycle of a The main electronic board could be Pull out the plug and connect function blocked the plug after 1 minute Night light doesn’t Check if it’s turned on Turn the night light on, as work described in the manual... -
Page 30: Correct Disposal Of This Product
10. Correct disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promete the sustainable reuse of material resources. -
Page 31: Product Specification
Installation and user manual WC2 11. Product specification Rated voltage 220-240V~,50Hz Rated power 1150W Power cable 1,5m Applicable water pressure 0.14-0.75MPa Mains water temperature 4-35º Ambient temperature 4-40º Net weight 45kg Waterproof level IPX4 Cleaning water flow 0.5-0.7L/min Seat temperature adjust (Normal temperature-around 40 ‘C) total 4 gear Water temperature adjust... - Page 32 www.iconico.es...
-
Page 33: Warranty
Installation and user manual WC2 12. Warranty Thank you for choosing our product. This product is warranted for two (2) years from the purchasing date, covering the free repair of problems arising from manufacturing defects, whenever the toilet has been installed and used following the indications in the provided user’s manual. - Page 34 hola@iconico.es...
