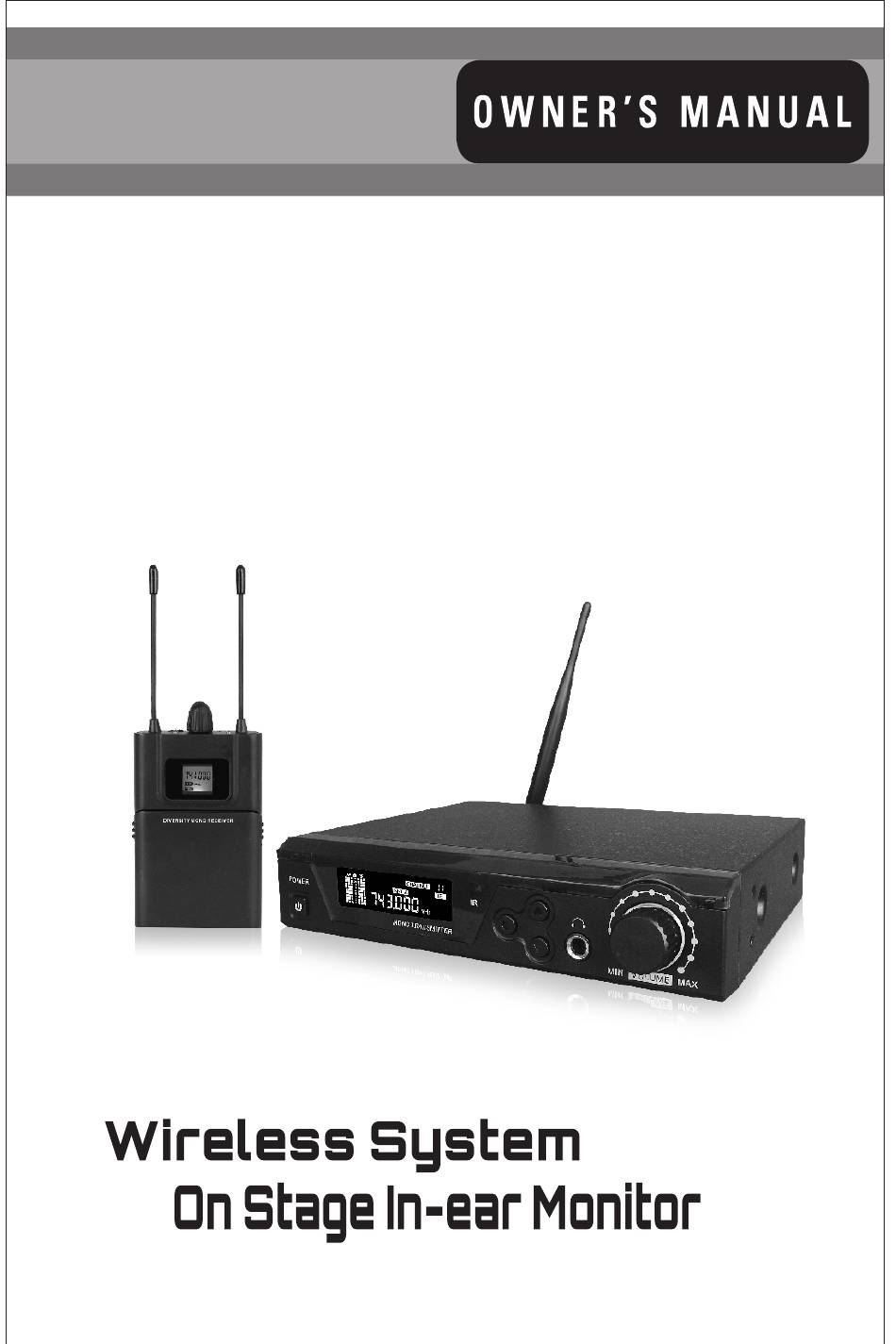

  • Page 1 UHF Wireless Transmitter Model: EM-100 Diversity Wireless System On Stage In-ear Monitor...
  • Page 2: Table Of Contents

    Table of Contents System Components……………………………......1 Transmitter Features……………………………......2 Receiver Features………………………........4 System Setup……………………………………......5 Specifications…………………………………......7 Thank you for choosing our wireless In-ear Monitor system, In order to obtain the best efficiency from the system, you are recommended to read this instruction manual carefully.
  • Page 3: System Components

    System Components All systems include Transmitter 6.35mm audio cable 1* TNC antenna Power supply Belt-pack Receiver Earphone 2 x AA Batteries User guide System Features UHF 902.25-926.75MHz frequency range Mono Outputs, four levels RF output selectable True diversity for maximum range and dropout protection PLL Synthesized circuit Pre-set 100(10*10) selectable frequencies IR sync downloading the frequency from transmitter...
  • Page 4: Transmitter Features

    Transmitter Features Front Panel 1. Power switch Tap to turn on, tap to turn off, blue light up when transmitter turns on 2. LCD display The 63mm*22mm high resolution LCD display shows the group, channel, frequency, antenna status, AF & RF level and IR set. 3.
  • Page 5 Transmitter Features Back Panel 9. Power supply jack (DC12-18V / 500mA) Connecting the power supply unit 10. 6.35mm (1/4”) audio input jack Connect the audio source, e.g. of mixer or computer 11 Volume control Adjust the volume level 12 TNC antennas socket Connect the high gain antenna...
  • Page 6: Receiver Features

    Belt-pack Receiver Features Body-pack Receiver Antennas 1/4 wave length wire type antenna, it should be fully extended during normal operations Backlit LCD Display frequency and battery life, if the battery symbol blinks, the battery need to be replaced immediately UP button Adjust the frequency, incrementally SET button Menu control to set frequency...
  • Page 7: System Setup

    System Setup 1.Connect the included AC power supply to the rear of the receiver and turn on the receiver. 2.Standard Display The standard display shows the preselected group, channel, RF power level. Group Push the SET button one time, the GROUP blink, Push the up and down buttons to set the desired group (01-10), Press SET again to confirm.The display will return to standard after a short period of time of non-activity automatically.
  • Page 8 System Setup RF Power After the step of setting channel, press the SET again, the POL “4” blink ( as below picture1). Push the up and down buttons to set the desired RF Power level (1-4), Level 1 shows two lines of signals, the corresponding RF power is 1 mW.
  • Page 9: Specifications

    Specifications ( ) Transmitter Main Unit Frequency Preparation PLL Synthesized Control 902.25-926.75 MHz ( Region dependent) Frequency Range Frequency Type Transmission Method FM, Mono Channels 100(10x10) RF Output Power Oscillation System 60Hz-17KHz+/-3dB Frequency Response ≥105dB S/N Ratio T.H.D <0.5% at 1KHz Dynamic Range >100dB -10-+50℃...
  • Page 10 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
