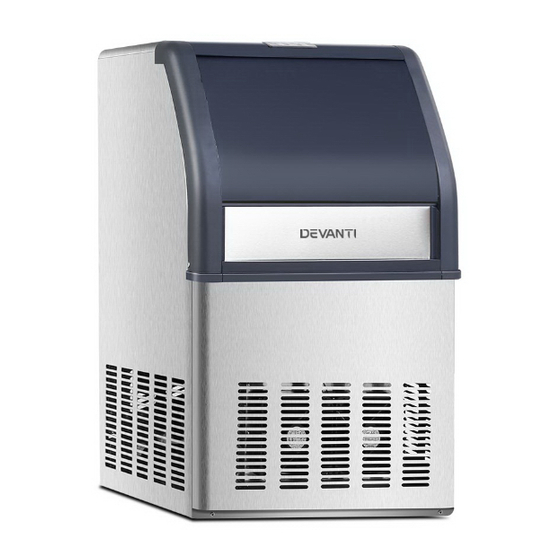

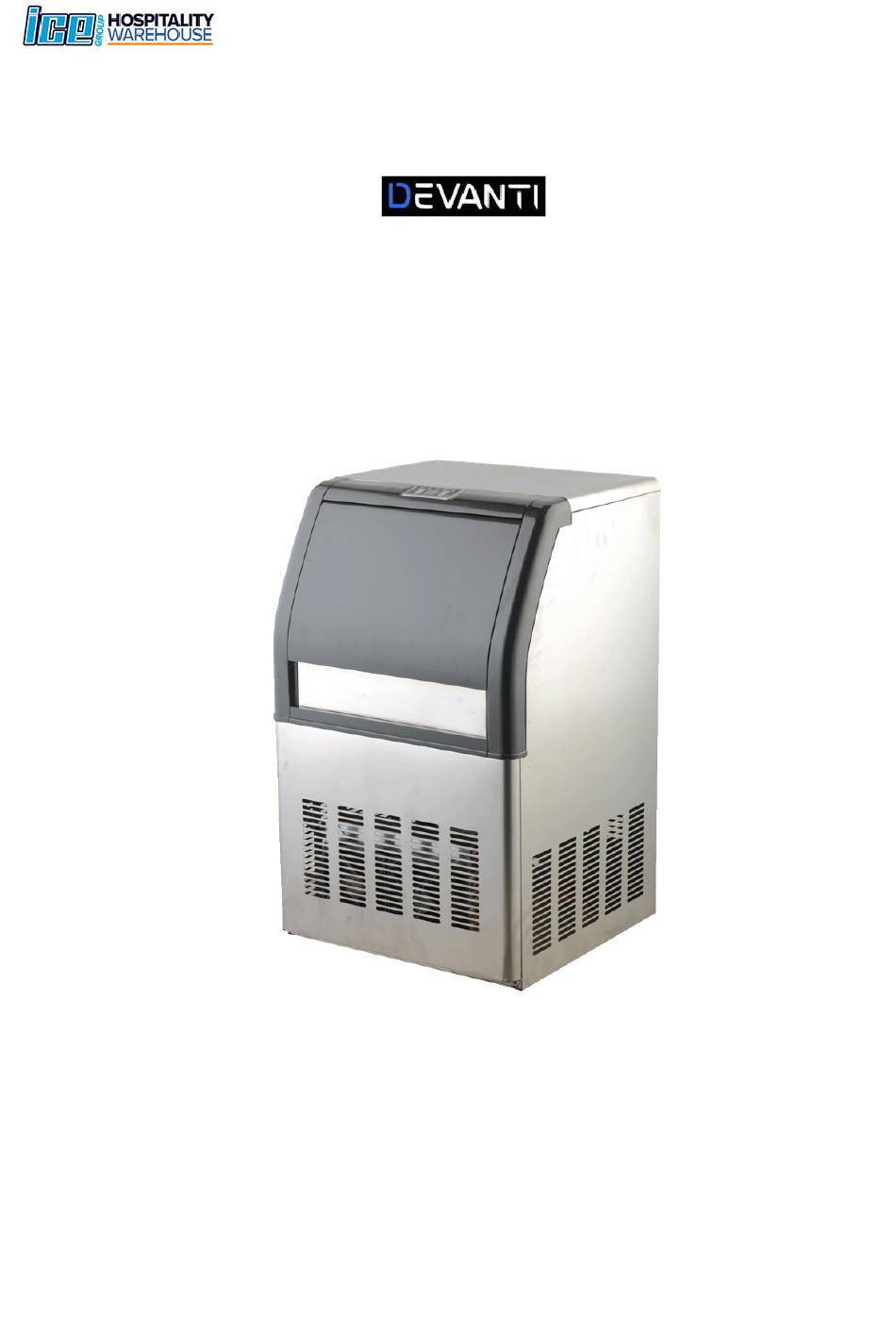

- Page 1 INSTRUCTION MANUAL Devanti ICE MAKER ZB-250 Thanks for your choosing our ICE MAKER Please read this Instruction Manual carefully before operation Please keep it in a safe place and refer to it when necessary. - 1 -...
- Page 2 8. Fan cover 3. Sliding door 9. Water out 4. Ice storage tank 10. Water inlet 5. Fan 11.Power cord 6. Evaporator Specifications Model ICE2 / ZB-250 Ice Making Capacity 40kgs Ice Sizes adjustable Ice Storage Capacity 10kgs Dimension 457*432*744 Voltage...
- Page 3 Filter Connector option Adaptor Water Follow Controller Filling Water Pipe(1m) Filling Water Pipe(40cm) Ice Scoop Function Instant making ice Ice full alarming,add water water alarming Crystalline ice in square Before/First Use of Your Ice Maker 1.During transportation, the incline angle of the cabinet should not be over 45° .Do not turn the Ice maker upside down.
- Page 4 Position the ice maker on flat, stable surface. • This ice maker can only be used indoors. • • The installation and any repairs of the ice maker should be performed by qualified technician. If the power cord is damaged; it must be replaced by a qualified person to avoid a •...
- Page 5 Area Mark Description ADD WATER Check the water supply TIMER timer is working or time is under setting. unit is under ice making process ICEFULL alert ice is full, need to be taken out Indicators CLEAN unit is under auto clean process. LED screen button to change time setting Buttons...
- Page 6 Step 1.4 Push the filter into the filter bracket, make sure the flow direction on filter is from left to right Step 1.5 Connect filling pipes at both side of the filter, before connecting the pipe to the unit, please let the water flow over the filter for several seconds till the water come out is clean...
- Page 7 Step 1.9 Put a barrel beside the unit, and then turn on the water filling controller to let the water flow over the filter for 30seconds, till the water from left side is clean Step 1.10 Take off the anti-drain plug from back of the unit, then connect water pipe left to the inlet hole(the left one)
-
Page 8: Troubleshooting
screen, and the ice making time for next cycles will be one minutes more. For example, if LED flashes 10, at this time, you press button +, data 1 will be soon on the screen, means next cycles, the ice harvest will count down from 11minutes. If two presses are done, then count down from 12minutes. - Page 9 Indicator light on the 1.Control panel wire Call for service display is not on line is loosened 2.Control panel is broken The water is flowing, ice Temperature sensors Call for service is made, however no are connected by release of ice mistake Everything is correct but 1.Refrigerant leaks...
