Etech EPB-17096-B Manual

Manual
Wireless Charging
Parent SKU: IH-QI3002
Model: EPB-17096-B

SPECIFICATIONS

Input：5V/2A 9V/2A
Output: 5V/1A 9V/1.1A
Wireless Output:10W 7.5W 5W
Charging distance ≤8mm
Coil: dual coil
Charging effificiency:10W@ 72% 7.5W@70% 5W@65%
Shell material:ABS
Over Temperature Protection ：65℃±2℃
WORKING TEMPERATURE:0 ~ +40
STORAGE TEMPERATURE:-20 ~ +70
- For 7.5W/10W fast wireless charging a Quick Charge 2.0 or 3.0 car charger is needed.
- For standard 5W wireless charging a 5V/2A car charger is needed.
Package Includes:

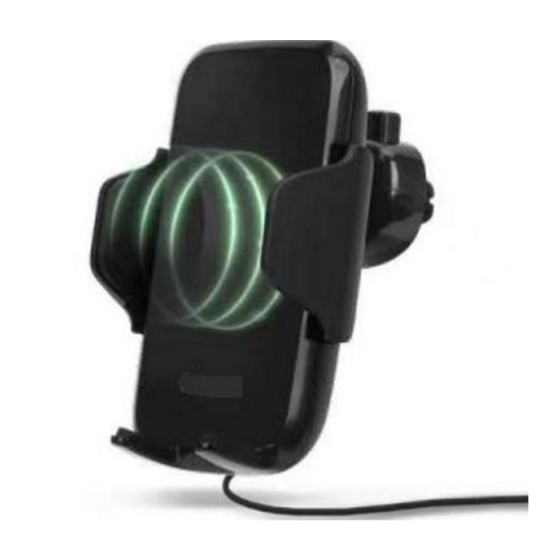

• Air vent Wireless charging x1 • USB charging cable x1 • Manual x1

FUNCTION OF THE LED CHARGING INDICATOR

The LED on the front is used to show the operating status of the product. - When the wireless
charger is powered on with no phone on the pad the LED is green.
- When the wireless charger is powered on and there is a phone on the pad the LED is blue. -
When the phone is fully charged on the pad the LED turns green.
- If there is an error state while charging a phone the LED will turn blue and blink. To clear the
problem remove
the phone, check the power source and then re-seat the phone onto the wireless charge pad.
APPLICABLE DEVICE
