VSC-101 Quick Set-Up Guide

Version 2.0.0.0

July 7, 2017

Table of Contents

Need help?

Do you have a question about the MediaMatrix VSC-101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Peavey Electronics Corporation MediaMatrix VSC-101

Page 1 VSC-101 Quick Set-Up Guide Version 2.0.0.0 July 7, 2017...
Page 2 All creative content in this manual, including the layout, art design, content, photography, drawings, specifications and all other intellectual property is Copyright © 2016 Peavey Electronics Corporation. All Rights Reserved. Features & specifications subject to change without notice. All other registered trademarks or trademarks are the property of their respective owners.
Page 3: Important Safety Instructions
1 - Important safety instructions Warning: When using electrical products, basic cautions should always be followed, including the following: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6.
Page 4 a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚ b) colored green or colored green and yellow. c) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
Page 5: What's In The Box
2 - Introduction What is VSC-101? VSC-101 is a full HD video scaler switcher. The device scales and switches any HDMI, VGA, YPbPr, C-Video or S-video video signal to HDMI up to 1080P. It is controllable via buttons on the front, the IR sensor and the RS232 port. It has 12 video inputs and 10 audio inputs. Features ...

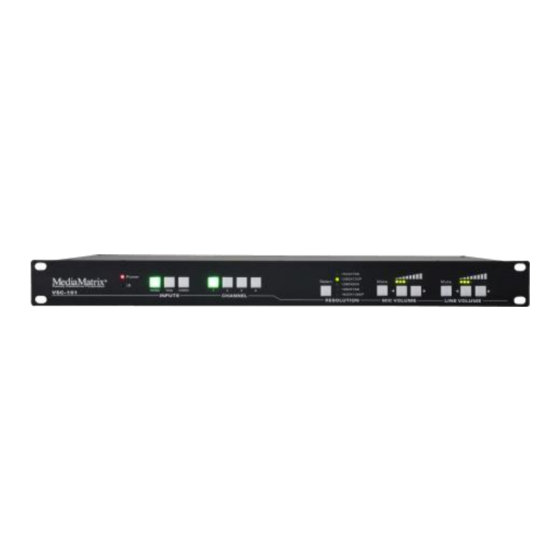

Page 6 VSC-101 front and rear 1. POWER: Lit (red) when the external power supply is connected properly. 2. IR (infrared) internal receiver. For use with the remote control. 3. Video input source selection buttons: HDMI, VGA or analog video. 4. Video source channel selection buttons. 5.
Page 7 1. Output section. 5-pin Euro-connector for balanced stereo audio output, one VGA output, one HDMI output with embedded audio. 2. Four VGA input connectors. 3. Four HDMI input connectors. 4. Four 3.5mm stereo audio connectors for VGA audio inputs. 5. RCA stereo inputs. Shared audio inputs for video inputs #1 and #3. 6.
Page 8: Infrared Remote Control
Infrared remote control Video source select:  HDMI inputs 1,2,3,4.  VGA inputs 1,2,3,4.  Component video inputs: 1. Composite video, 2. Component video (YPbPr), 3. S-Video, 4. Composite video. Menu and volume control area. Mute for line and mic audio inputs.
Page 9 Direction buttons and OK button. These are only available in MENU mode. Mic volume control. This can be used when not in MENU mode. Output resolution select:  720P (1280x720)  1080P (1920x1080)  XGA (1024x768)  WXGA (1280x800)  HD (1360x768) July 7, 2017 Version 2.0.0.0...
Page 10: Specifying The Picture Parameters
3 - Setting up the unit using the Introduction The product provides an On-Screen Display (OSD) menu. Note: Many of the features are used only during initial installation and setup. Specifying the picture parameters The first icon from the left of the OSD menu is used to set the picture parameters.
Page 11: Specifying The Audio Parameters
Specifying the audio parameters The second icon from the left of the OSD menu is used to set the audio parameters. The settings include sound effect presets, bass, treble, balance, scene mode, surround and smart volume setting. Note: Not all parameters are available with all inputs. Specifying the system parameters The third icon from the left of the OSD menu is used to set the system parameters.
Page 12: Maintaining The Unit
4 - Maintaining the unit Updating the firmware You can update the firmware on the VSC-101 and VSC-101tn products using a flash disk inserted into the USB port at the rear. MediaMatrix Technical Support (mailto:mmtechsupport@peavey.com) will provide you with the files you need to install on the flash disk and explain the procedure.
Page 13 Problem What to do Waves on image If the output image has waves, especially if the waves move up or down, check that all devices and components (video players, computers, etc.) are grounded properly. Poor color saturation Double-check the input and output connections of all cables. Check for bent pins on VGA cables.
Page 14: Reference Information
5 - Reference information Specification Video input Video output Input 4 HDMI, 4 VGA, Output 1 HDMI, 1 VGA 1 YPbPr, 2 C-Video, 1 S-Video Input connectors HDMI female Output connectors HDMI female connector, VGA(15 connector, VGA(15 pin HD), RCA pin HD) female connector, S-Video connector...
Page 15 Audio input Audio output Balanced stereo audio Input 6 Stereo analog Output output, inputs for audio 2x10W@8Ω/amplifier follow video 1 Stereo Left/Right audio input 1 Balanced mic-level audio input 4 RCA female Input connector Output connector Left/Right 5-pin connector for YPbPr, Euro-connector C-Video &...
Page 16: Supported Video Formats
Supported video formats The device supports many types of video signals, including C-Video, S-Video, YPbPr, VGA and HDMI. All inputs are scaled to the selected HDMI format output. C-Video and S-Video input  Supports PAL, SECAM and NTSC formats.  From the OSD, the aspect ratio can be set to full-screen, wide screen or 4:3.
Page 17: Vga Input
VGA input The VGA resolution is VESA standard. The following resolutions are supported. The maximum bandwidth is 375MHz (-3dB). The aspect ratio can be changed between full screen and 4:3. The audio bass and treble can be adjusted. Resolution Resolution 640×480@60Hz 1024×768@70Hz 640×480@72Hz...
Page 18: Audio Input/Output
Audio input/output Switched (audio follows video) inputs  4 x VGA audio 3.5mm (1/8) stereo inputs.  4 x HDMI embedded audio.  2 x RCA stereo audio inputs. Non-switched (always on) inputs  1 x Balanced MIC level audio input (Euro-connector). ...
Page 19 Command Function Description Feedback Example Auto-adjust the input signal(VGA 0606% VGA Adjustment only) 0607% Auto-adjust the color temperature Color Temp: XX 0608% ZOOM the image, set the aspect ratio Aspect Ratio: XX 0609% OK, for OSD selection 0610% OSD: Left Left 0611% OSD: Right...
Page 20 Command Function Description Feedback Example 0635% Check the image aspec ratio Aspect Ratio: XX 0636% Check the brightness Brightness: XX 0637% Check the contrast Contrast: XX 0638% Check the saturation Saturation: XX 0639% Check the sharpness Sharpness: XX 0640% Check the color temperature Color Temp: XX 0644% OSD CHANNEL display enable...
Page 21 Command Function Description Feedback Example 0708% Switch to VGA4 input Source: VGA4 0709% Switch to composite video AV1 input Source: CVIDEO1 0710% Switch to YPbPr input Source: YPbPr 0711% Switch to S-Video input Source: SVIDEO 0712% Switch to composite video AV2 input Source: CVIDEO2 0720% Mute Line and MIC Mute On...
Page 23: Warranty Statement
Warranty statement passive filter networks.) and all Accessory Products MediaMatrix® PEAVEY ELECTRONICS CORPORATION How To Get Warranty Service DOMESTIC (USA) LIMITED WARRANTY End Users: Take the defective product and your dated sales receipt or other proof of purchase to your Authorized MediaMatrix Systems Effective Date: May 1, 2005 Integrator or Authorized Peavey Service Center.
Page 24 MediaMatrix® A Division of Peavey Electronics Corp. 5022 Hartley Peavey Drive, Meridian Mississippi, 39305, USA Phone: 866.662.8750 http://www.peaveycommercialaudio.com/products.cfm/mm/ Features & Specifications subject to change without notice Copyright © 2016, All Rights Reserved 80305812...
