Summary of Contents for CONSTEEL ELECTRONICS QDSP-1600

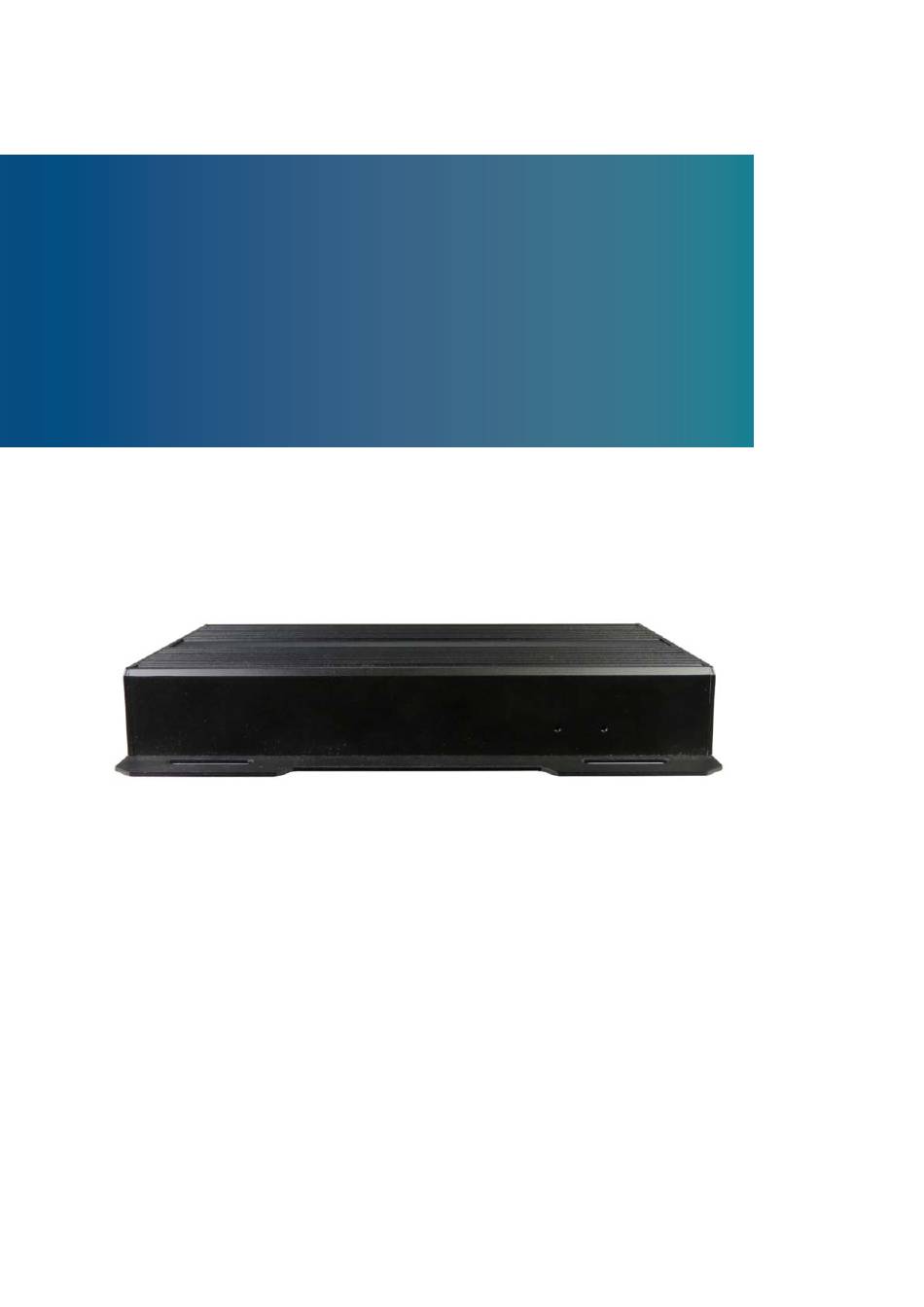

- Page 1 QDSP-1600 Extended Temperature Fanless Mini Media Player w/ ARM® Cortex®-A53 Based Processor, Rockchip RK3368 User’s Guide...
-
Page 2: Table Of Contents
Chapter 1 Introduction ......................11 Overview ......................11 Product Specifications ..................12 System tour ....................13 Mechanical Dimensions ................17 Chapter 2 Getting Started ....................18 Setting up your PC ..................18 Mounting your PC to a display ..............22 QDSP-1600 User’s Manual... -
Page 3: Figures & Tables
Figure 4 Mechanical Dimensions................17 Figure 5 HDMI......................18 Figure 6 Connecting USB mouse & keyboard ..........19 Figure 7 RJ45 connector ..................20 Figure 8 Turning on the system ................21 Figure 9 VESA mounting ..................22 Table 1 QDSP-1600 product specifications ...... 12 QDSP-1600 User’s Manual... -
Page 4: Safety Instructions
Turn off system power, turn off the power supply, and then disconnect the power cord from its source before removing the chassis cover. Turning off the system power switch does not remove power to components. QDSP-1600 User’s Manual... -
Page 5: When Working Inside A Computer
ESD procedure, which can include wrist straps and smocks, when servicing equipment. You can also take the following steps to prevent damage from electrostatic discharge (ESD): When unpacking a static-sensitive component from its shipping carton, do not QDSP-1600 User’s Manual... -
Page 6: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QDSP-1600 has the following voltage ratings: Input: 100~240 VAC, 50~60 Hz ... -
Page 7: Preface
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the QDSP-1600 User’s Manual... -
Page 8: Maintaining Your Computer
However, if a system is located in an unusually humid location, a dehumidifier can be used to maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for QDSP-1600 User’s Manual... - Page 9 UPS system. UPS systems range in price from a few hundred dollars to several thousand dollars, with the more expensive unit s allowing you to run larger systems for a QDSP-1600 User’s Manual...
- Page 10 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QDSP-1600 User’s Manual...
-
Page 11: Chapter 1 Introduction
Introduction Overview QDSP-1600 is an AR M and Android based fanless mini media player designed for digital signage. It has a HDMI2.0 port to supports 4K Ultra HD video output. With built-in Wi-Fi, Bluetooth technology and IR receiver, it enables wireless connection to streaming content, data transfer and flexible / fast content control. -
Page 12: Product Specifications
Storage Temp.: -25°C ~ 80°C / -13°F ~ 176°F Characteristics Humidity: 10% ~ 90% Mounting VESA Mount (100 x 100 mm) Security 1x Kensington Security Slot (on rear) Certifications CE, FCC Class A Table 1 QDSP-1600 product specifications QDSP-1600 User’s Manual... -
Page 13: System Tour
The power LED will light when the PC is power-on. IR Receiver The IR receiver is an infrared receiving sensor allowing users to remotely control the box PC itself or the content that is displayed on connected screens. QDSP-1600 User’s Manual... - Page 14 The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs. QDSP-1600 User’s Manual...
- Page 15 Kensington Lock Slot The slot is used for attaching a lock-and-cable apparatus. Locks are generally secured in place with a key or combination lock attached to a rubberized metal cable. QDSP-1600 User’s Manual...
- Page 16 Chapter 1 Top Panel Figure 3 Top Panel Power Button The power button allows powering ON and OFF the system. QDSP-1600 User’s Manual...
-
Page 17: Mechanical Dimensions
Chapter 1 Mechanical Dimensions 167.5 x 120 x 26.5 mm (W x D x H) Figure 4 Mechanical Dimensions QDSP-1600 User’s Manual... -
Page 18: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your PC Connecting the monitor Connect the HDMI cable from your display to the HDMI port. HDMI2.0 Figure 5 HDMI QDSP-1600 User’s Manual... - Page 19 Chapter 2 Connecting USB mouse & keyboard Your QDSP-1600 does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. USB OTG USB2.0 Figure 6 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers.
- Page 20 Chapter 2 Connecting to a network device Connect one end of a network cable to the LAN port on the system rear panel and the other end to a hub or switch. RJ45 Figure 7 RJ45 connector QDSP-1600 User’s Manual...
- Page 21 Chapter 2 Turning on the system Connect the power adapter cable to the DC jack (DC IN) of QDSP-1600 Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system...
-
Page 22: Mounting Your Pc To A Display
Chapter 2 Mounting your PC to a display Secure the QDSP-1600 to your display directly with four screws. NOTE To fasten the QDSP-1600, your display must comply with VESA100 standard. Figure 9 VESA mounting QDSP-1600 User’s Manual...
