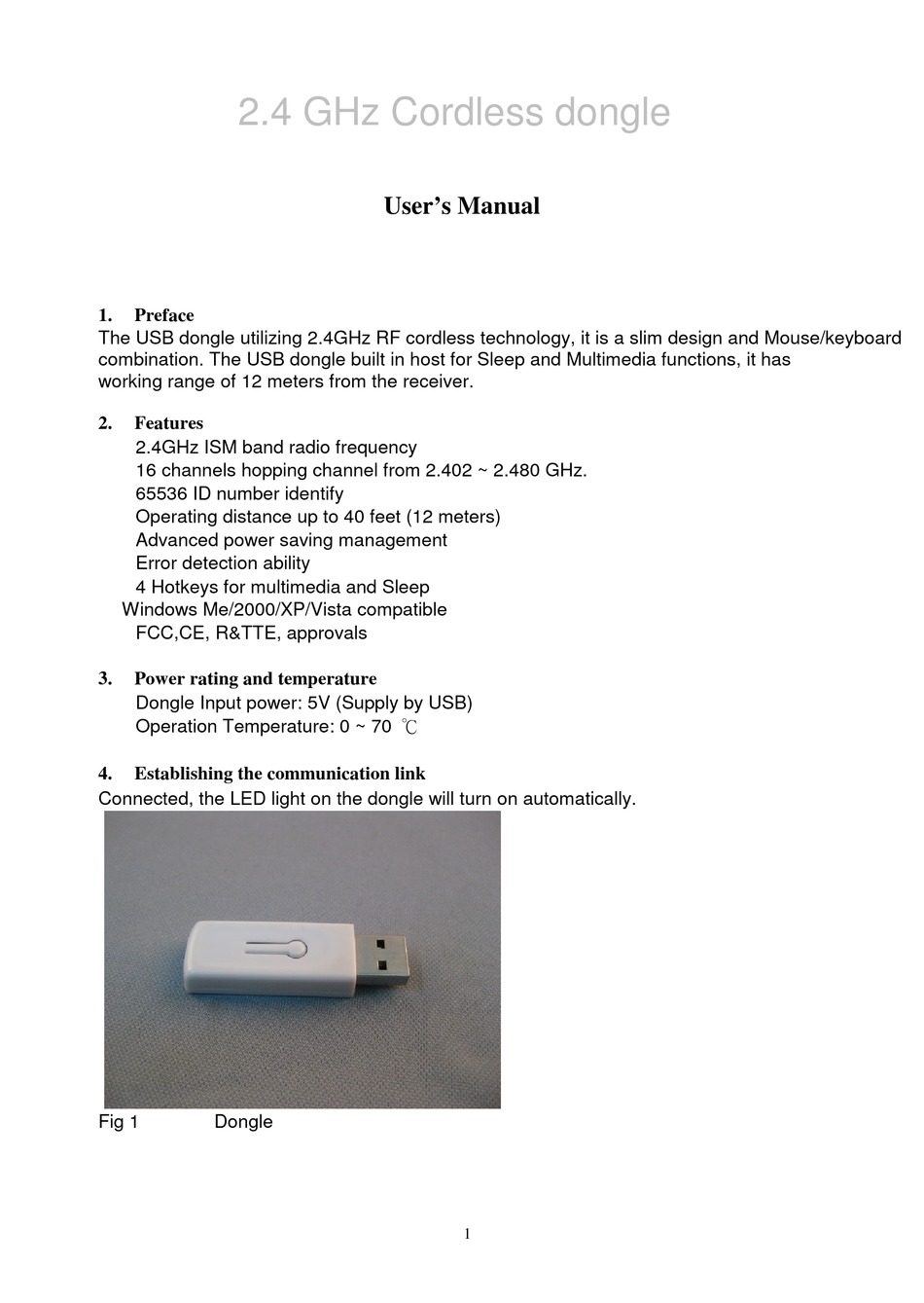

2.4 GHz Cordless dongle
1.
Preface
The USB dongle utilizing 2.4GHz RF cordless technology, it is a slim design and Mouse/keyboard
combination. The USB dongle built in host for Sleep and Multimedia functions, it has
working range of 12 meters from the receiver.
2.
Features
2.4GHz ISM band radio frequency
16 channels hopping channel from 2.402 ~ 2.480 GHz.
65536 ID number identify
Operating distance up to 40 feet (12 meters)
Advanced power saving management
Error detection ability
4 Hotkeys for multimedia and Sleep
Windows Me/2000/XP/Vista compatible
FCC,CE, R&TTE, approvals
3.
Power rating and temperature
Dongle Input power: 5V (Supply by USB)
Operation Temperature: 0 ~ 70 ℃
4.
Establishing the communication link
Connected, the LED light on the dongle will turn on automatically.
Fig 1
Dongle
User's Manual
1
Advertisement
Table of Contents
Summary of Contents for EzKey EZRX116
- Page 1 2.4 GHz Cordless dongle User’s Manual Preface The USB dongle utilizing 2.4GHz RF cordless technology, it is a slim design and Mouse/keyboard combination. The USB dongle built in host for Sleep and Multimedia functions, it has working range of 12 meters from the receiver. Features ...
- Page 2 Press and release the Setup button on the receiver to turn off the LED light. (Fig. 1) Press the Connect button at the bottom of mouse/keyboard. The LED light on receiver illuminates, indicating that the setup process has been completed. Sleep Mode To save power consumption, this dongle will enter into sleep mode automatically after two minutes left unused.
- Page 3 Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
