EverWave Filtration Azure 4-Stage RO System
Model EVW-AZR-4RO
Package Contents
(Pictures not to scale)

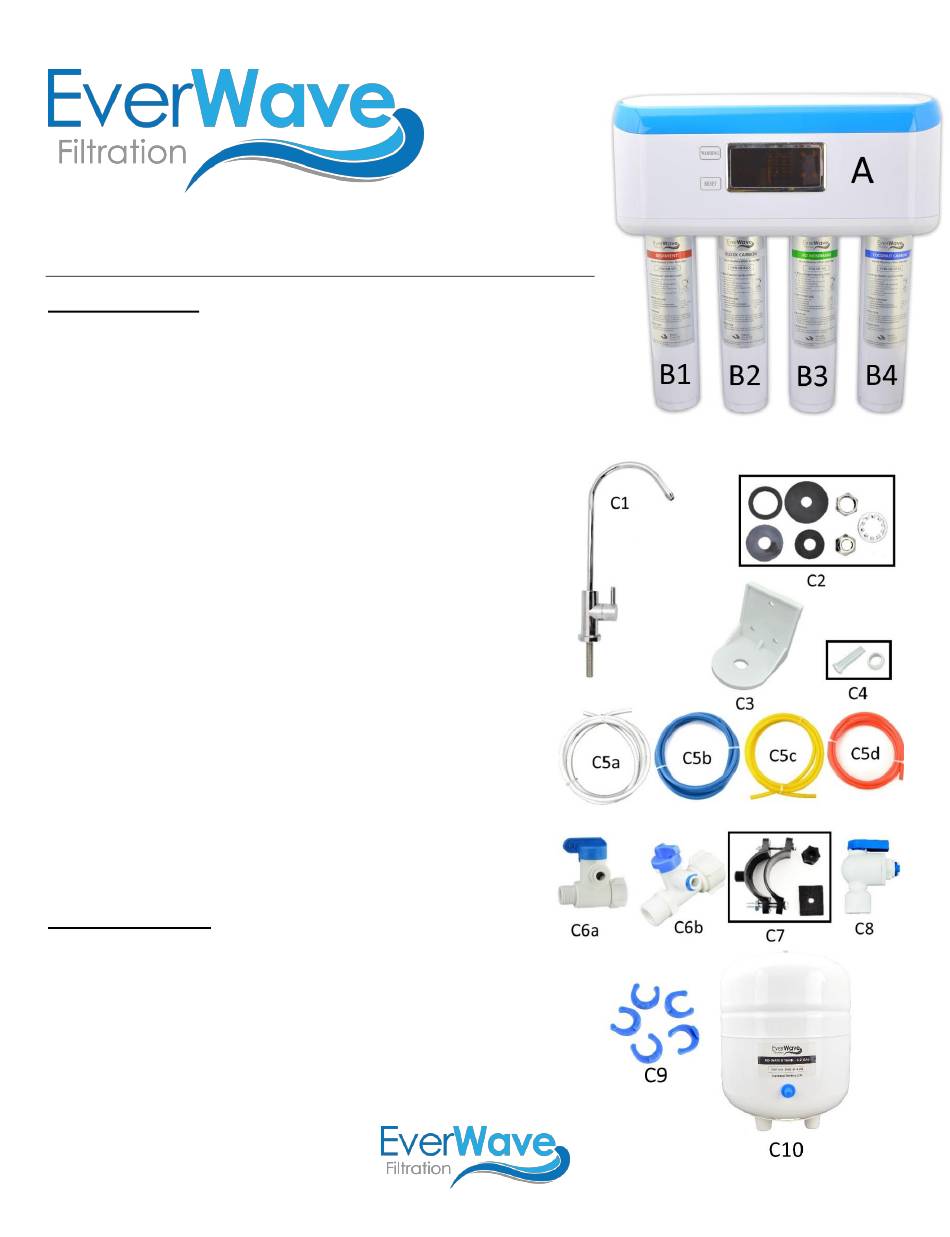

(A). Four-Stage RO System Head
(B). Twist-Lock Cartridges
(B1) PP Sediment Cartridge: EVW-QR-SED (RED)
(B2) Block Carbon Cartridge: EVW-QR-BLOC (WHITE)
(B3) RO Cartridge: EVW-QR-RO (GREEN)
(B4) Coconut Carbon Cartridge: EVW-QR-COCO
(BLUE)
(C). Installation Kit
(C1) Faucet with Compression Nut
(C2) Faucet Assembly
(C3) Faucet Mounting Bracket
(C4) Insert + Ferrule for Faucet
(C5) 1/4" Tubing – 5 ft. x4
a. White (INLET)
b. Blue (OUTLET)
c. Yellow (TANK)
d. Red (DRAIN)
(C6) Kitchen Faucet Adapter Valves (use one)
a. John Guest
Hydranti Adapter Valve (1/2")
b.
(C7) Drain Clamp Assembly
(C8) Tank Adapter Valve
(C9) Clips for Tubing Connections
(C10) 3.2 Gallon Water Storage Tank
Tools and Materials
•
Adjustable Wrench
•
Tape Measure
•
Teflon Tape
•
Safety Glasses
•
Masking Tape
•
Newspaper or Towels
•
Bucket or Pan
•
1/8" Drill Bit
PASVPP1 (3/8")
