Aurum Electronics AEC-711C Quick Start Manual

Wireless handheld screen receiver

AEC-711C Wireless Handheld Screen Receiver

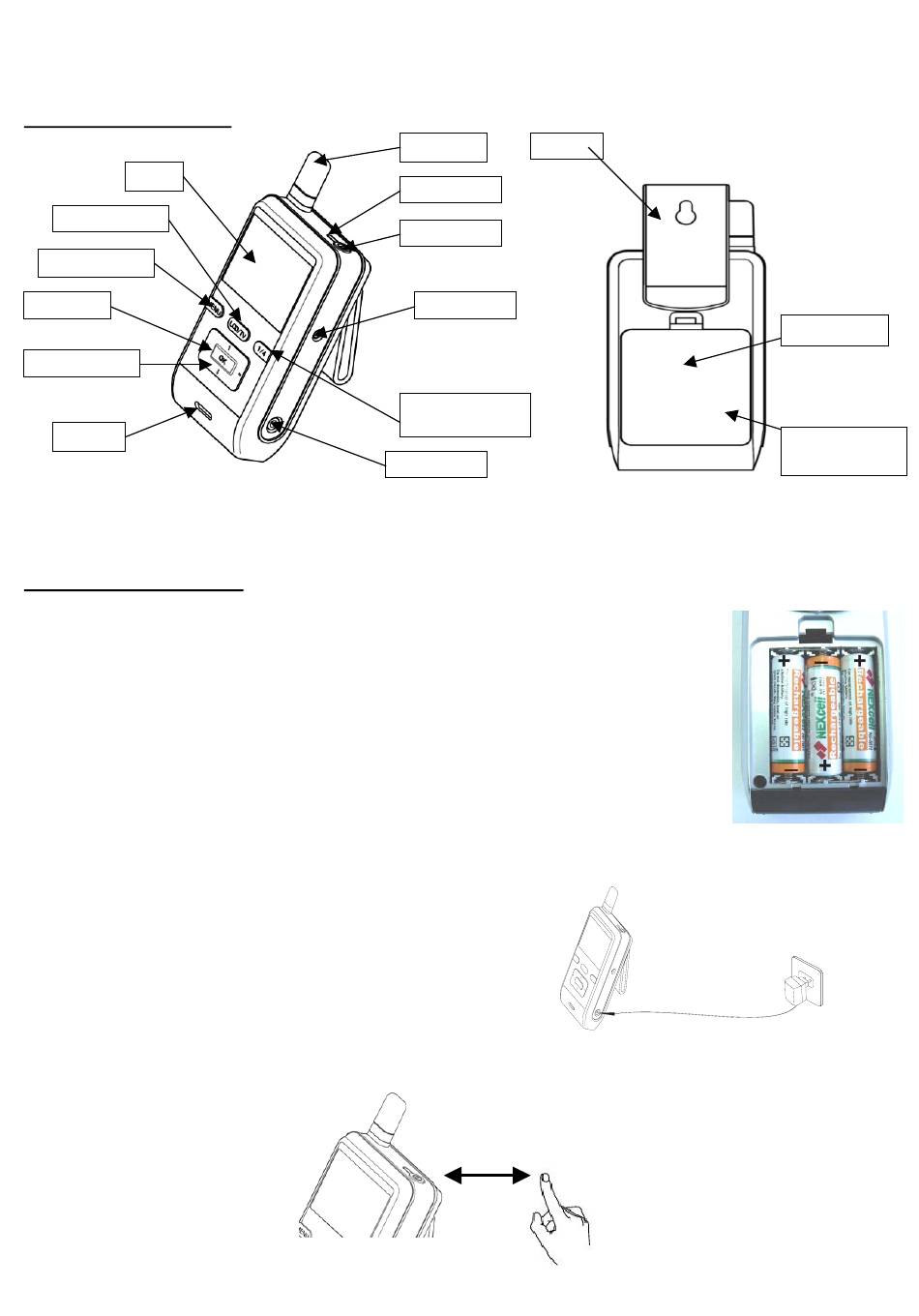

I. OVERVIEW OF AEC-711C

LCD

LCD/TV Button

MENU Button

OK Button

Channel Button

Buzzer

1. Install 3pcs NI-MH rechargeable batteries to the battery compartment with its polarities

matched.

Note:

- This receiver can also be powered on by adapter (DC 6V 1.5A).

- The rechargeable battery will be charged after the adapter is plugged in, and the charge

indicator lights up during charging and will turn off after a full charge.

- A full charge will take about 6 hours, which can power the receiver for about 4 hours

continuously.

- You are recommended to have the battery fully charged before its first installation to optimize its life.

- Do not burn or disassemble the rechargeable battery.

- Do not short-circuit the battery, it may cause fire or electric shock.

2. Push the power switch to ON position.

Holder

Antenna

LED indicator

Power switch

Video Output

View Button (1/4)

(Single/Quad)

Power Socket

Battery case

Rechargeable

battery (inside)
