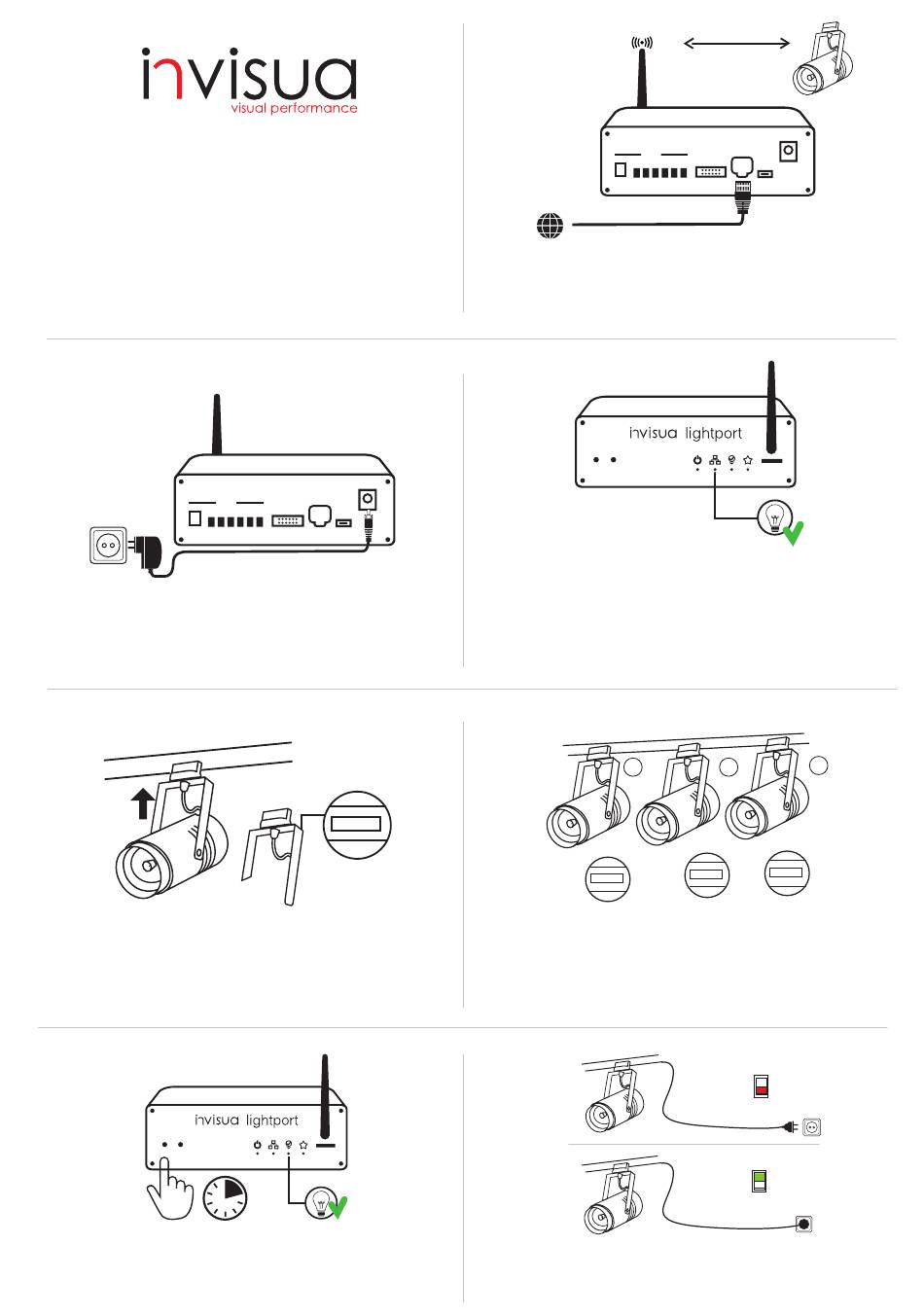

Masterspot 2 Track
Quick Installation Guide
www.invisua.com
2
Power the Invisua Lightport via the supplied 12V
power supply.
4
Mount all the Invisua Masterspot 2 Track fixtures on
your track.
6
1 2
Press button #1 on the Lightport for 5 sec. to initiate
commissioning of your system. (lamp indicator LED on the
Lightport will turn ON)
12 VDC
LA N
DMX
4628
5sec
1
DMX

Connect the Invisua Lightport to your local network

router (with internet access) via the supplied LAN cable.
(Recommended maximum distance Lightport-fixtures:
10m. line of sight)
3
1 2
Verify that the second LED is ON to confirm internet
connection. (Blinking indicates having an IP address
obtained, full ON indicates internet connection)
Check document "Network and Hardware
recommendations" in case the second LED does not light
up. (http://main.invisua.com/en/downloads/)
5
1
4626
It is recommended to position the fixtures ordered
by serial number. In that way the fixture sequence in
Invisua Create will be identical.
7
Within 30 sec. after pressing button #2, turn the Masterspot
2 Track fixtures OFF and ON again, by disconnecting and
reconnecting the 230V power.
max 10m.
12 VDC
LA N
3
2
On
Of f
On
Of f
