A Battery powered Weatherproof 3G GSM Wireless Alarm System with N/O & N/C Input
Trigger & Wireless Connectivity to a range of Wireless Accessories.
Key Points:
• Calls up to 3 x Key-holders by Telephone when Triggered (this can be turned off).
• Contacts up to 3 x Key-holders by SMS when Triggered (this can be turned off).
• User can Record a personal message (this will be replayed to Key-holders when the
Alarm Calls them.
• Armed & Disarmed using Remote Control (from up to 100 metres away).
• Battery Powered (can be operated using an optional Plug in Transformer).
• Volt Free N/O Input (can be used with wired N/O detectors & sensors).
• Volt Free N/C Input (can be used with wired N/C detectors & sensors).
• It can be connected to an existing Alarm Panel.
• Easy Programming (via built in keypad).
• Can operate with a Host of Wireless Detectors.
• Can trigger Wireless Sirens.
• Fully Waterproof (IP 66).
• Supplied with Security Screws and Tool (for the lid).
• It can send a Weekly Status report to the Primary Key-holder.
• Key-holder being Called can Disarm the Alarm.
• Key-holder being Called can Stop the Alarm and Re-arm.
• Uses standard size SIM Card (PAYG or Contract).
• Power Failure SMS (when used with a Plug in Transformer).
• Remote Arm & Disarm function (when used with a Plug in Transformer).
3G UltraDial GSM Alarm
Advertisement
Table of Contents
Summary of Contents for Ultra Secure UltraDial

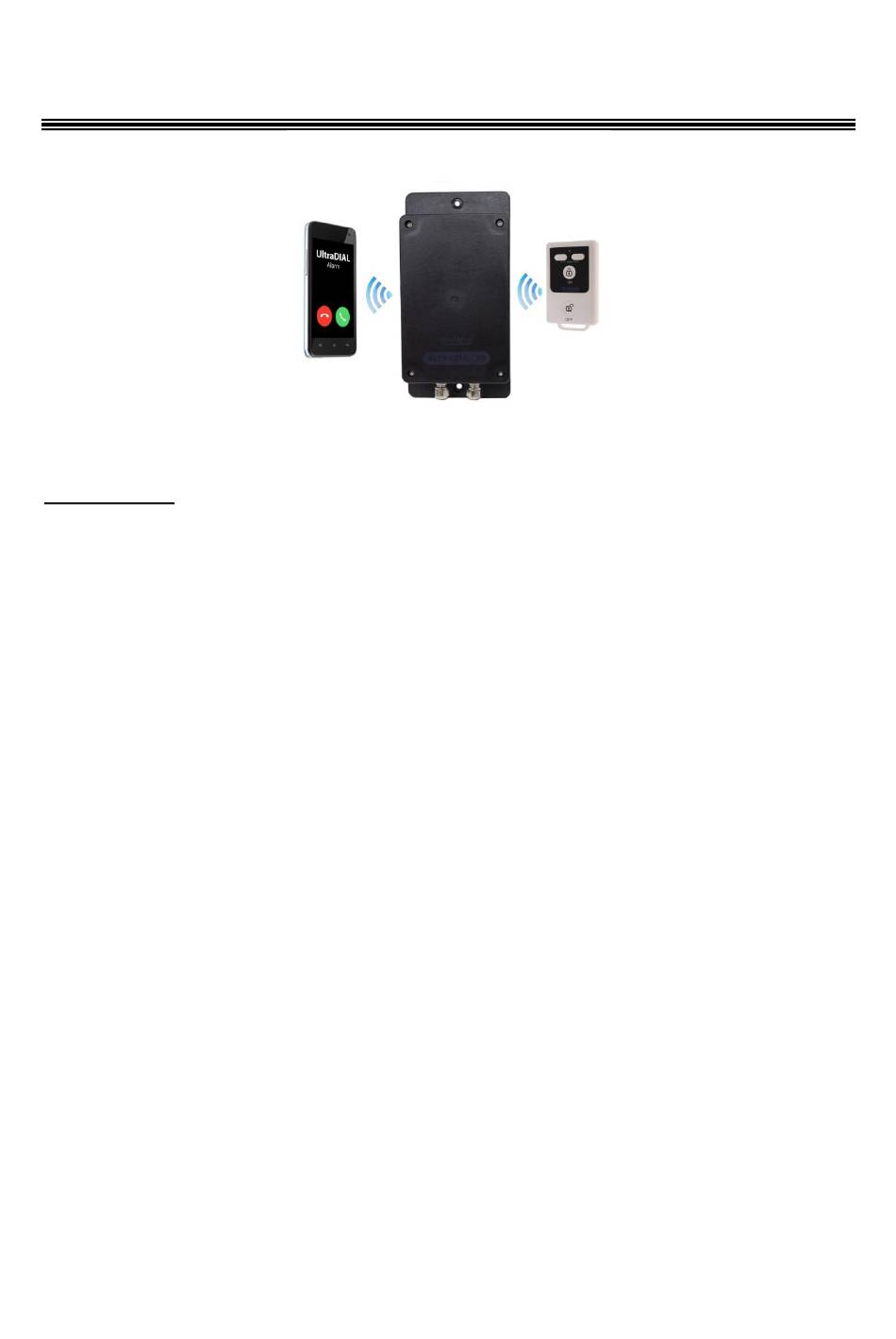

- Page 1 3G UltraDial GSM Alarm Introduction A Battery powered Weatherproof 3G GSM Wireless Alarm System with N/O & N/C Input Trigger & Wireless Connectivity to a range of Wireless Accessories. Key Points: • Calls up to 3 x Key-holders by Telephone when Triggered (this can be turned off).
-
Page 2: Get Started
Get Started: 1. Remove the Lid by Removing 4 x Security Screws using the Tool supplied. 2. Insert the SIM Card (sim card holder located just below the Key-pad). 3. Connect any Wired Sensors or Alarm Panels to the N/O or N/C Input (further details below). -
Page 3: Input Relays
Insert the Largest (Standard) Sim Card into the SIM Card Holder (located under the built-in keypad. Carefully slide and lift the top of the holder up as this is hinged, slide the SIM Card into the top holder (you will see cut out corner of the lid showing you what direction it should be inserted), Carefully close and slide the Lid onto the base unit. - Page 4 Examples for using a N/O Input would be: • Wired Water Alarms. • Existing Alarm Panels. • Our Perimeter Solar Power Beam. Examples for using a N/C Input would be: • Wired Window Contact. • Wired Gate Contact. • Wired Roller Shutter Contact. When using a Wired Inputs, you would guide the cable through the cable glands located at the bottom of the Alarm and locate the two terminal blocks to the left-hand side of the battery compartment (as shown in images above).
- Page 5 DC Input: The UltraDial can be powered by an external 5v DC Input for applications with access, the options include: • A Plug in Transformer (3 or 2-pin). • USB Cable. • Other 5v DC Power Supplies. Please see the image below displaying the correct location of the Input Terminals when using a 5v power source.
- Page 6 These Sirens would be activated by any of the Detectors working within the same Wireless Network. The operating range between the UltraDial and Wireless Sirens is 100 metres (line of sight) although this can be much further when multiple units are used as each unit will relay the signal to the nearest unit.
- Page 7 Solar Siren BT PIR Internal Siren Recording a voice message A short (6 second) message can be Recorded into the Alarm, this would be replayed to Key- holders when the Alarm calls them. 1) Under disarm mode, activate keypad by pressing the learn button (located to the right-hand side of the SIM Card).
-
Page 8: Operation
Examples: Let’s assume your number is 01234567890 and you want it to be the first number the Alarm Calls: 1) Press * 1 01234567890 * or *1 0044 1234567890* (on some networks). If you want this phone number to be the third number the Alarm Calls: 1) Press * 3 01234567890 * or *3 0044 1234567890* (on some networks). -
Page 9: Disarming The Alarm
Weekly Report: This optional feature allows the Alarm to be programmed to send you a weekly status report, which would be sent to the primary key-holder at 9am each Monday. To turn this function OFF & ON please press the ‘Learn Button’ followed by #0# The Report would contain: •... -
Page 10: Remote Operation
The UltraDial will call for an estimated time of 25-30 seconds (may differ for each network) before moving onto the next number. Upon receiving the Call, you have the option to; • Press # on the receiving telephone, which will disarm the alarm (and all other Wireless accessories) and prevent it calling any of the other telephone numbers, additional Sirens will also be silenced.
