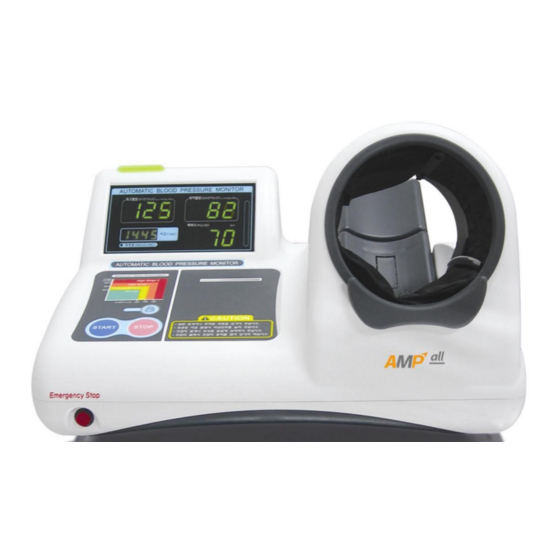

Summary of Contents for AMPall BP868F
- Page 1 BP868F Blood Pressure Monitor OPERATING MANUAL BP868F / UME-07-REV.2-08B13...
- Page 2 CONTENTS Thank you very much for your purchasing of AMPall product. This device is designed to measure blood pressure. Please read this operating manual carefully before using the device. Keep the operating manual with the device all the time. The Warranty Card is included in this operating manual. Please keep the Warranty Card carefully with the device otherwise you may not get proper customer service.
-
Page 3: Table Of Contents
4. Cautions During Measurement ……………………………....5. How to Measure ………………………………………………………… 6. Contents of Data ………………………………………………………………….. 7. Troubleshooting ………………………………………………………………….. 1) Display ……………………………………………………………………………….. 2) Voice ……………………………………………………………………………….. 3) Emergency Management ……………………………………………………………….. 8. Specifications ……………………………………………………………… 9. Service Contents …………………………………………………………………. Warranty ………………………………………………………………….. BP868F / UME-07-REV.2-08B13... -
Page 4: Cautions For Safety
In case of using the product after it has not been used for a long time, check the product for any abnormalities before use. Do not spill liquid or put alien substances into the machine. BP868F / UME-07-REV.2-08B13... - Page 5 If it makes strange sound, smell or smoke while in use unplug the machine immediately and call the service center. This product is designed for measuring blood pressure, not for treatment. BP868F / UME-07-REV.2-08B13...
-
Page 6: Description Of Each Panel
2) If you press this button when you are not measuring the blood pressure, it will load the previously measured values. To print the loaded data, press L/F button under the print cover. BP868F / UME-07-REV.2-08B13... -
Page 7: Printer
① SET Button Use this button to set date and time. It also changes the maximum pressure value (155-185-215-245). ② L/F Button This button puts out the paper. This also changes numbers when setting date and time. BP868F / UME-07-REV.2-08B13... -
Page 8: Rear
This switches the input voltage to 110VAC or 230VAC. ⑨ Power Switch Turn on or off the blood pressure monitor. ⑩ Rear Side Display Display systolic pressure, diastolic pressure, and pulse rate on the rear side. BP868F / UME-07-REV.2-08B13... -
Page 9: Window Display
Use this cable to transmit data from blood pressure monitor to computer and control the blood pressure monitor from the computer. ④ Arm Supporter ⑤ Direction Board This shows the direction for measuring blood pressure and matters that requires attention. BP868F / UME-07-REV.2-08B13... -
Page 10: Preparation
If the wire is broken, replace it as follows. Inside the black fuse holder, there is an extra fuse. Remove the broken fuse and replace it with the new fuse. Extra Fuse Fuse in Use [Fuse Holder] BP868F / UME-07-REV.2-08B13... -
Page 11: Assemble Arm Rest
• Use thermal printing paper only (Length: 25 m, Breadth: 57.5 mm). • Make sure the paper is clean and not crumpled. • Do not pull the paper while printing. • Store the paper in a well ventilated and dark place. BP868F / UME-07-REV.2-08B13... -
Page 12: Setting Initial Pressure Level
When you turn off the power, the date and time values will remain for 60 days. However the time data can change if it is not used for a long time (more than 60 days). BP868F / UME-07-REV.2-08B13... -
Page 13: Number Of Measurement
① Press the “PRINT” button while you are not measuring the blood pressure. Recent measurement will be appeared. ② Every time you press the “PRINT button”, the window will display the stored data in order up 5 measurements. ③ To print the values, press “L/F” button under the print cover. BP868F / UME-07-REV.2-08B13... -
Page 14: Cautions During Measurement
Do not roll up the sleeve to the area of the arm that is measured. The blood pressure may be incorrectly measured. Do not place another part of the body in the cuff. Do not measure while the print cover is not in place. BP868F / UME-07-REV.2-08B13... -
Page 15: How To Measure
OFF, the voice will say, “If you want to print the results, please press the PRINT button.”Press PRINT button to print out the result if necessary. ⑨ The results will be printed out. When the paper is out, cut the paper. ⑩ MENT : “Thank you, for using” BP868F / UME-07-REV.2-08B13... -
Page 16: Contents Of Data
01:33 PM April 10, 2007 • SYSTOLIC ····· 128 Systolic mmHg • DIASTOLIC ····· 062 Diastolic mmHg • MEAN ······ 084 Mean mmHg • PULSE/min ···· 082/ min Pulse/min *World Health Organization (WHO) Blood Pressure Categorization Graph* BP868F / UME-07-REV.2-08B13... -
Page 17: Troubleshooting
Wrong button is pressed. “You pressed the wrong button.” The patient pressed the START button without placing the arm inside the cuff or the air is slightly “Please check the cuff.” leaking from inside. (Repair is required) BP868F / UME-07-REV.2-08B13... -
Page 18: Emergency Management
• Check whether the coin is on or off. the beep sound is heard but it Turn off the coin machine if it is not in use. does not operate ※ For other troubles, please contact our Customer Service Center or your retailer BP868F / UME-07-REV.2-08B13... -
Page 19: Specifications
℃ humidity 95% or less Storing Condition Temperature –5 ~+50 , Dimension 453 (W)×340(D)×306(H) Weight Approximately 8.6kg Components 1 power cord, thermal paper roll, arm rest, user manual, direction board Customer management program, communication cable, auto-cutting protection Options cover BP868F / UME-07-REV.2-08B13... -
Page 20: Service Contents
The warranty certificate is not reissued. Please keep it importantly. You must present the warranty when requesting for repair. ►Parts can be replaced or functions can be changed in order to enhance product quality. ◄ BP868F / UME-07-REV.2-08B13... -
Page 21: Warranty
Warranty Card Thank you for your purchasing for AMPall product. The warranty period of BP705 is valid from the purchasing date. Please notice the purchasing date on the warranty card and keep this Warranty Card with the device all the time to get full customer service. - Page 22 ■ This is a medical equipment ■ ▪ Product Name: Blood Pressure Monitor (BP868F) ▪ Manufacturer: AMPall Co., Ltd 3rd Fl.Annex Hankook Junja Hyeopdong B/D 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, Korea Tel.+82-2-858-2839~41, Fax.+82-2-858-2442 http://www.ampall.com ▪ Protection against Electric Shock and Degree of Protection: First Class Equipment, Equipment Type BF ▪...
