- Page 1 LX-630A Automatic Conveyance Magnetic Metal Detector User Manual For optimum performance and long-term operation with no breakdown, you should first of all read this Operating Manual with appropriate care...

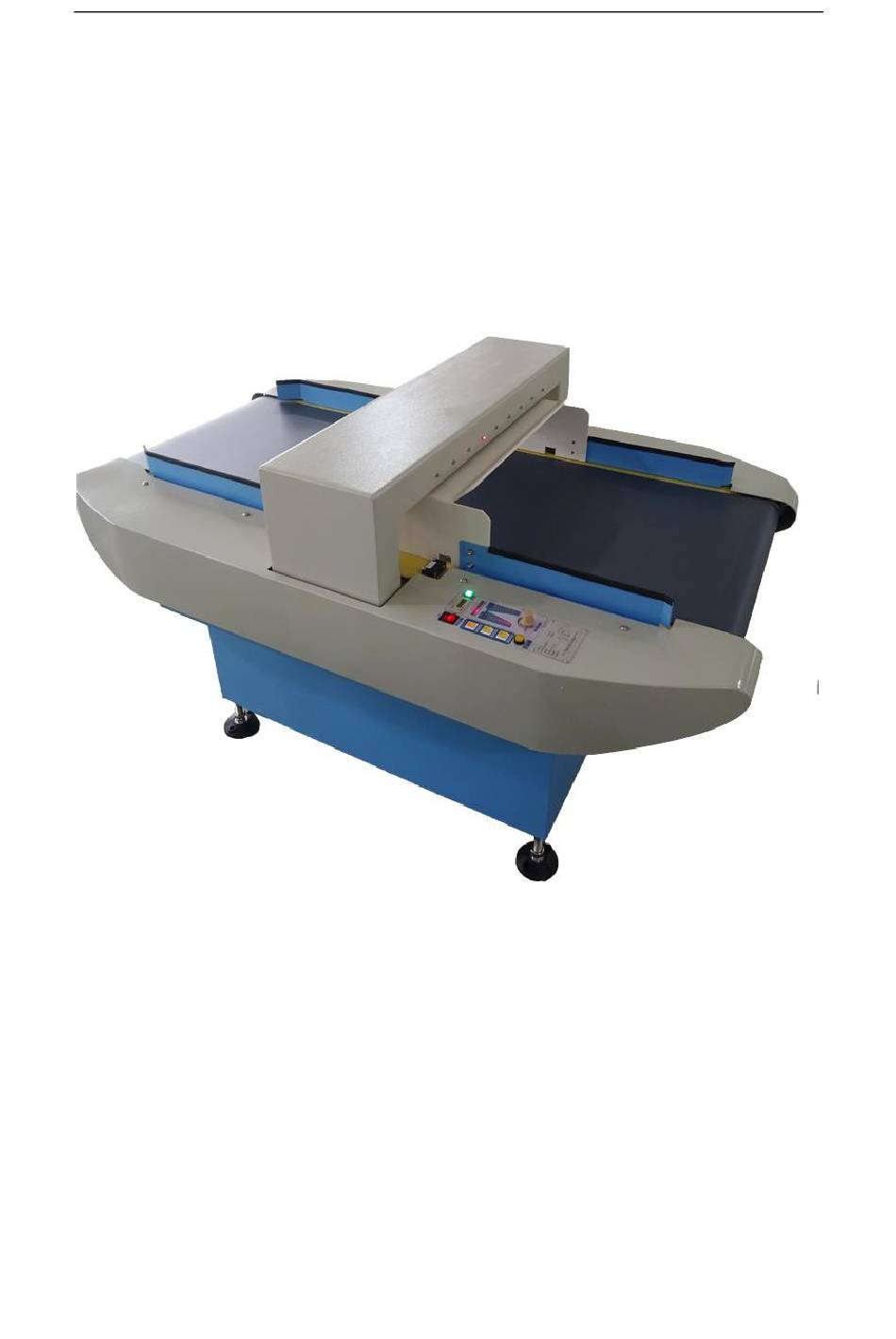

- Page 2 Introduction The Company specializes in producing magnetic metal detectors and clothing machinery and instruments. The magnetic metal detectors include: the series of LX-630A and so on. The last designed series of LX-630A feature the streamlined outward appearance. A nine-set of magnetic sensitive sensor detection is installed in a range of width of 600mm, which strengthens the detection effect and enhances the reliability.
- Page 3 φ1.2 LX-630A -120MM φ1.2-1.5 LX-630A -150MM φ1.5-2.0 LX-630A -200MM 1. Voltage of the Power: AC100V-240V (single phase); 50-60HZ±10%. The machine will be supplied with AC220V, 50HZ as its standard if there is no special appointment while placing an order of it. 2.
- Page 4 interference. If it lights periodically in a certain location, it indicates that there exist pollutants in the corresponding location on the conveyer belt. Interference should be eliminated. The conveyer belt should be cleaned. c) The level: there sets up a display of the level of induction for the instrument. The more the light pillars are，the higher the level of the induction of the instrument is.
- Page 5 1) To connect the power line The power line to be used should be insert in the plug with appropriate power receptacle that carries with an earth wire. If it shares a source; plug receptacle with other electric machines, it might cause interference and is easy to make wrong warnings.
- Page 6 a) Before it is put into use, the instrument should be put in a horizontal place where there is no vibration. It is expected to adjust the four boy-bolts until they support the instrument stably and the four direction wheels disconnected with the ground. When the instrument is in a horizontal position, fix the fastening bolts until they do not vibrate.
- Page 7 for a period of time. 7. The Operations of the Instrument: a) To switch on the joint power supply on the electric board and press the button of “START” for operation Please test-detect the sample draw points, iron fragments, or the attached parts for detection by the instrument as test operation.
- Page 8 1. The instrument a) The current is not input Check up on the plug receptacle to see does not work whether the hot line and neutral line are in good condition or not, whether the power is on or not, and whether the voltage is normal or not.
- Page 9 curled Loosen the belt appropriately. Note: If the supporting axle of the instrument that has the shield ring for the belt deviated slightly, it does not affect the operation of the instrument. counter a) The object to be detected a) Purchase special size photoelectric counts wrongly or is lower than 15mm and devices from our Company;...
